3M 7010361196 Trizact 217EA Abrasive Belt 64x1 Inch Ao

Product Description

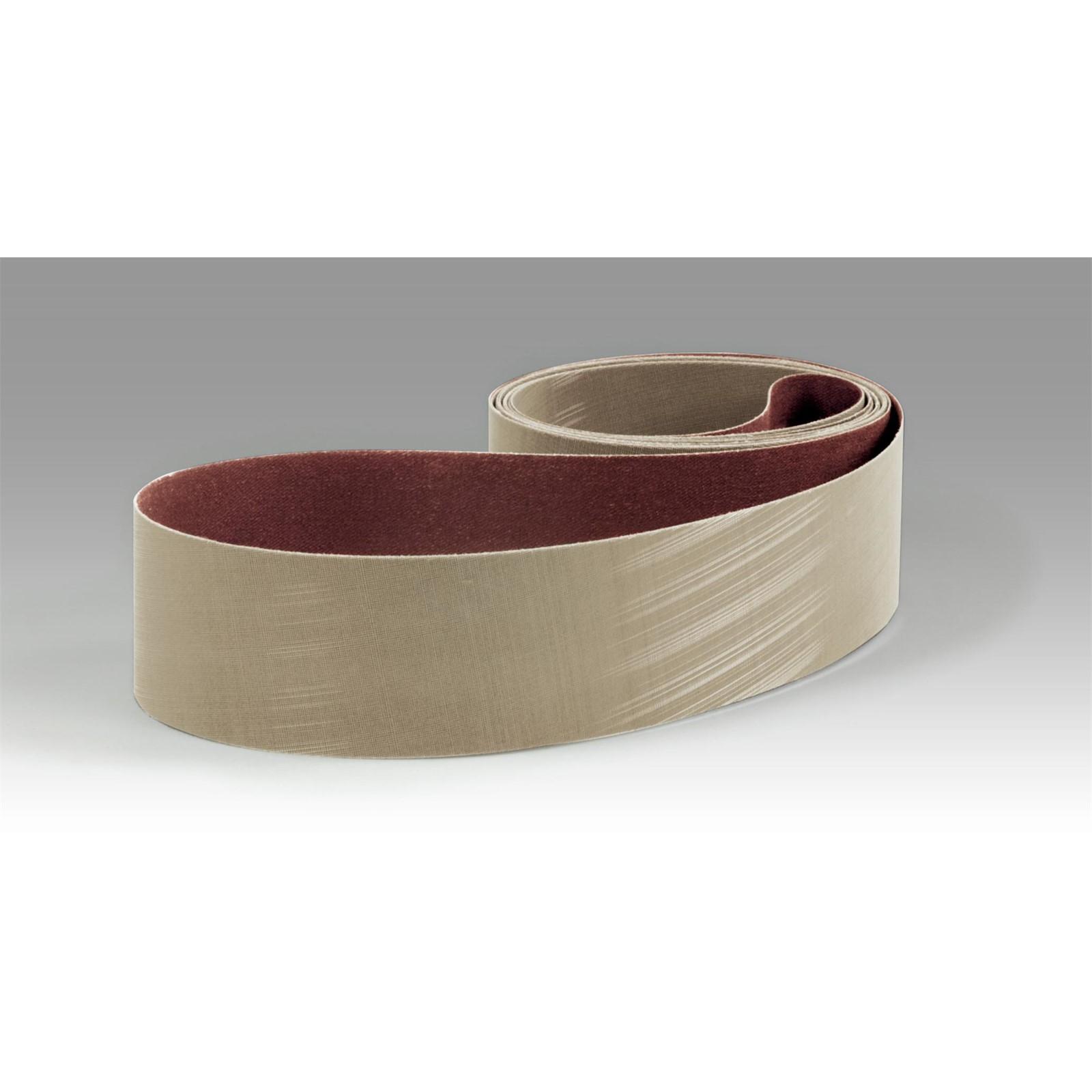

The 3M 7010361196 is a Trizact 217EA coated abrasive belt designed for intermediate finishing and fine polishing applications in metalworking and fabrication environments. It uses 3M microreplicated pyramid technology, in which micron-graded aluminum oxide particles are formed into uniform pyramidal structures and bonded to a JE-weight rayon cloth backing. As the pyramids wear during use, fresh, sharp mineral is continuously exposed, delivering a consistent cut rate and a predictable fine finish from start to finish. The belt measures 64 inches in length and 1 inch in width. Licensed trades and fabrication technicians rely on this belt for consistent results ahead of plating or buffing operations.

This belt is suited for intermediate finishing and fine polishing on metal components, particularly in applications requiring controlled surface finishes prior to plating, buffing, or coating. The flexible JE-weight rayon backing conforms well to contoured and irregular surfaces, making it effective for detail work. Its consistency and long abrasive life also make it well suited for use in robotic and automated grinding and finishing systems where repeatable results are required across high part volumes.

Key Features

• Microreplicated aluminum oxide pyramids continuously expose fresh mineral as they wear, maintaining cut consistency throughout belt life
• JE-weight rayon cloth backing flexes over contoured surfaces for uniform contact and consistent finishing
• Produces finer surface finishes than conventional coated abrasive belts
• Grinding aid incorporated into the construction helps prevent heat-related warping and discoloration of workpieces
• Ideal for light-pressure applications where controlled abrasive breakdown is needed to maintain finish quality
• Well suited for robotic and automated finishing systems requiring long, predictable abrasive life

Compatibility

Designed for use on belt finishing machines accepting a 64-inch by 1-inch abrasive belt. Appropriate for metalworking applications including finishing stainless steel, aluminum, and other metals prior to plating or buffing operations.

Installation Notes

Installation should be performed by qualified machine operators or maintenance personnel familiar with abrasive belt equipment. Power down and lockout the finishing machine before changing belts. Verify belt tracking and tension per the machine manufacturer's specifications before resuming operation. Inspect the belt for tears or defects before each use and never operate a damaged belt.

Technical Specifications

• Belt Length: 64 inches
• Belt Width: 1 inch
• Abrasive Mineral: Aluminum Oxide
• Backing Material: JE-weight Rayon Cloth
• Abrasive Type: Microreplicated Trizact 217EA
• Color: Tan
• Unit of Measure: Each
• Weight: 0.07 pounds

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010361196
