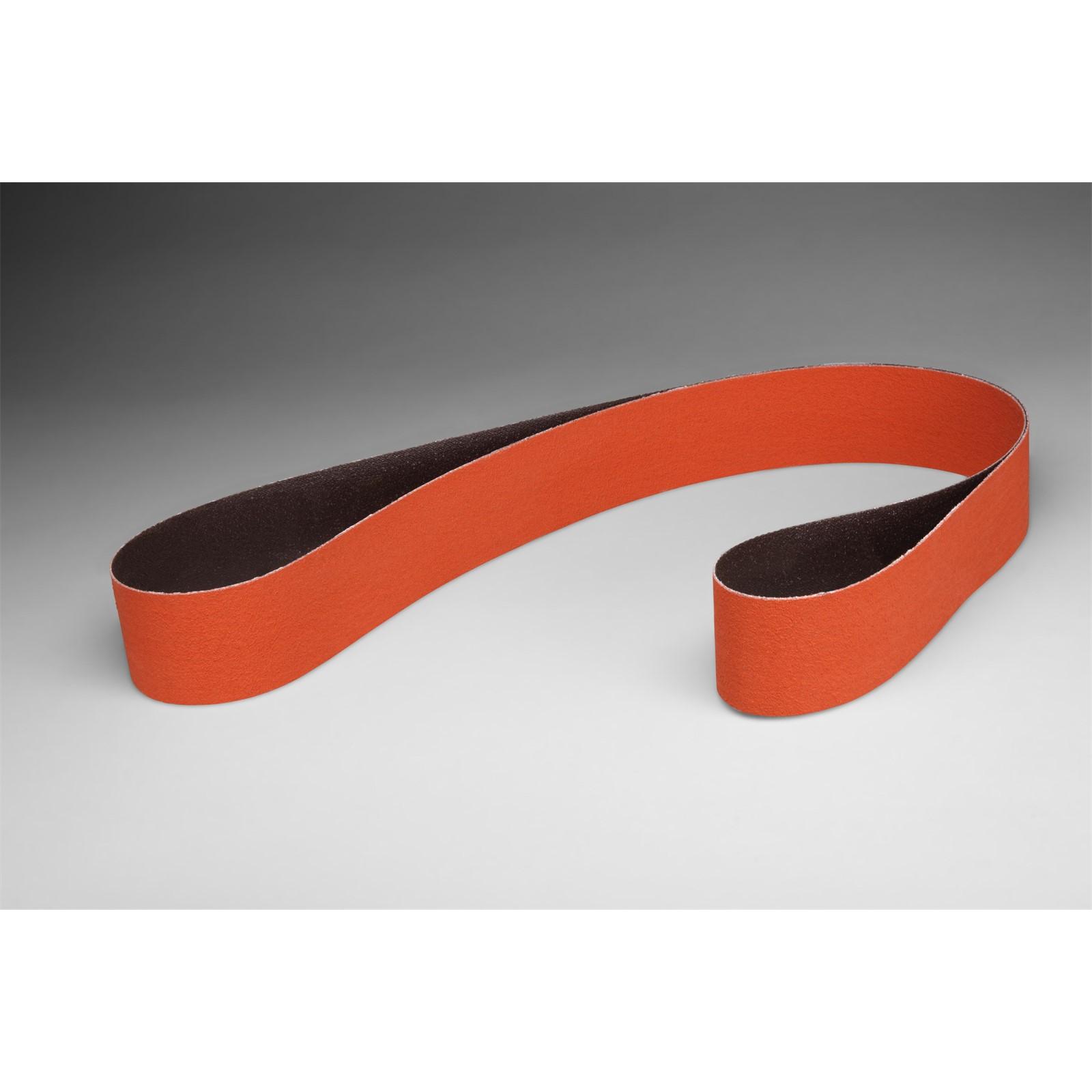

3M 7010361190 Abrasive Belt 747D 80 Grit 2.35x2 Inch

Product Description

The 3M 7010361190 is a coated abrasive cloth belt in the 747D series, designed for precision metal finishing and stroke sanding applications. It combines ceramic aluminum oxide and standard aluminum oxide grain on an X-weight cotton backing to deliver aggressive cut rates with extended belt life. At 80 grit, it removes material efficiently while leaving a consistent surface finish on demanding metals. A built-in grinding aid reduces heat buildup during operation, protecting both the workpiece and the belt. This belt is primarily installed and used by metal fabricators, welders, and finishing technicians working with high-alloy and stainless steel components.

The 747D belt is suited for stroke sanding operations on a range of metal substrates, including stainless steel, nickel alloys, and other ferrous and non-ferrous metals. Its anti-friction backing allows the abrasive to run smoothly against workpiece surfaces, reducing drag and improving operator control. It is a practical choice for fabrication shops, aerospace and food-service component finishing, and anywhere consistent surface quality on difficult metals is required.

Key Features

• Ceramic aluminum oxide grain blend delivers high cut rate and long belt life
• 80 grit rating suited for aggressive stock removal and intermediate finishing on metal
• X-weight cotton backing withstands heavy sanding and grinding pressure
• Anti-friction backing helps the belt run smoothly and reduces heat transfer to the workpiece
• Grinding aid incorporated to lower operating temperatures and extend abrasive life
• Performs on stainless steel, nickel alloys, and a broad range of metal substrates

Compatibility

Designed for use on stroke sanders and belt grinding equipment that accepts a 2.35-inch by 2-inch abrasive belt. Suitable for metal finishing on stainless steel, nickel, and similar alloy substrates.

Installation Notes

Belt installation should be performed by qualified finishing or fabrication personnel with the sanding or grinding machine powered off and locked out per applicable OSHA lockout/tagout procedures. Verify belt tracking and tension before resuming operation. Inspect the belt for tears or delamination prior to each use and replace immediately if damage is observed. Always use appropriate eye protection and respiratory equipment when operating abrasive belt equipment.

Technical Specifications

• Series: 747D
• Grit: 80
• Abrasive Type: Ceramic Aluminum Oxide Blend
• Belt Length: 2.35 inches
• Belt Width: 2 inches
• Backing Material: X-Weight Cotton Cloth
• Unit of Measure: Each
• Weight: 0.01 pounds
• UPC: 00051115269349

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010361190
