3M 7010361185 Trizact 307EA Abrasive Belt 120x3 Inch Ao

Product Description

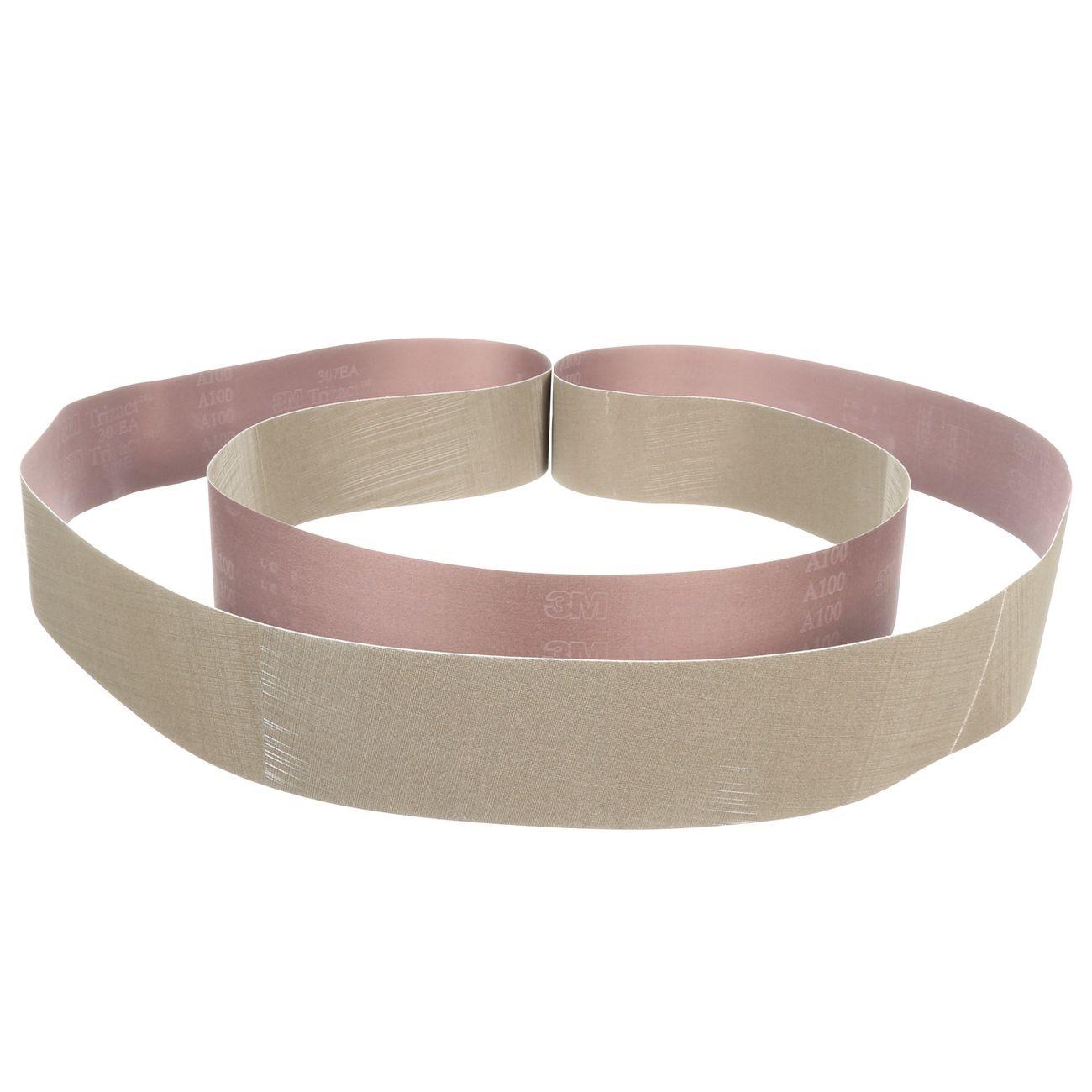

The 3M 7010361185 is a Trizact 307EA abrasive belt engineered for intermediate finishing and fine polishing applications on metal surfaces. It uses 3M microreplication technology, where micron-graded aluminum oxide particles are formed into precisely shaped pyramids and bonded to a flexible rayon cloth backing. As the abrasive pyramids wear down during use, fresh, sharp mineral is continuously exposed at the cutting face. The result is a consistent cut rate and a predictable, fine surface finish throughout the life of the belt. The belt measures 120 inches in length and 3 inches in width and weighs 0.38 pounds.

This belt is suited for robotic and automated finishing lines where consistent, repeatable surface finish is critical. It also performs well in manual operations requiring intermediate stock removal before plating, buffing, or fine polishing. The flexible rayon backing allows the belt to conform to contoured and irregular workpiece geometries, maintaining even abrasive contact across the surface. Metalworking shops, fabrication facilities, and industrial finishing operations are the primary environments where this belt sees regular use.

Key Features

• Microreplication technology forms aluminum oxide into self-sharpening pyramidal structures for consistent cut throughout belt life
• Produces finer finishes than conventional electrostatically coated abrasive belts
• Flexible rayon cloth backing conforms to contoured and complex surfaces
• Three-dimensional abrasive design delivers uniform finish results in robotic and automated applications
• Runs cooler than conventional abrasives, reducing heat buildup at the workpiece
• Ideal for intermediate finishing and fine polishing prior to plating or buffing operations

Compatibility

Designed for use on belt grinders and finishing machines that accept 120 inch by 3 inch abrasive belts in metalworking, fabrication, and industrial surface finishing applications.

Installation Notes

Installation should be performed by a qualified operator familiar with the belt grinder or finishing machine in use. Confirm the machine is fully powered down and de-energized before changing belts. Verify belt tracking and tension according to the equipment manufacturer guidelines before resuming operation. Inspect the belt for damage or delamination before each use and replace immediately if defects are found.

Technical Specifications

• Belt Length: 120 inches
• Belt Width: 3 inches
• Abrasive Mineral: Aluminum Oxide
• Backing Material: Rayon Cloth
• Abrasive Type: Trizact Microreplication
• Color: Gray
• Weight: 0.38 pounds
• UPC: 00051125308793

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010361185
