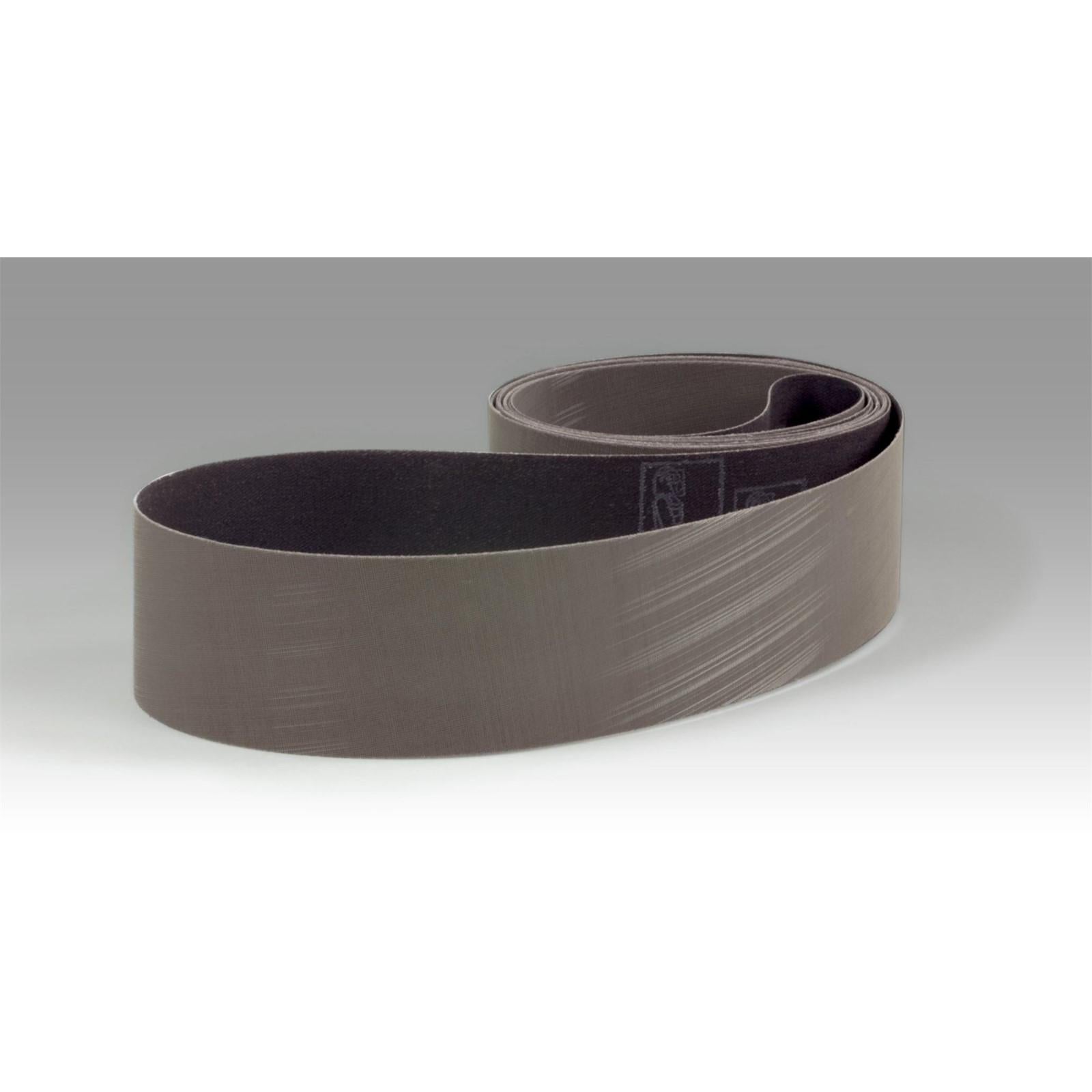

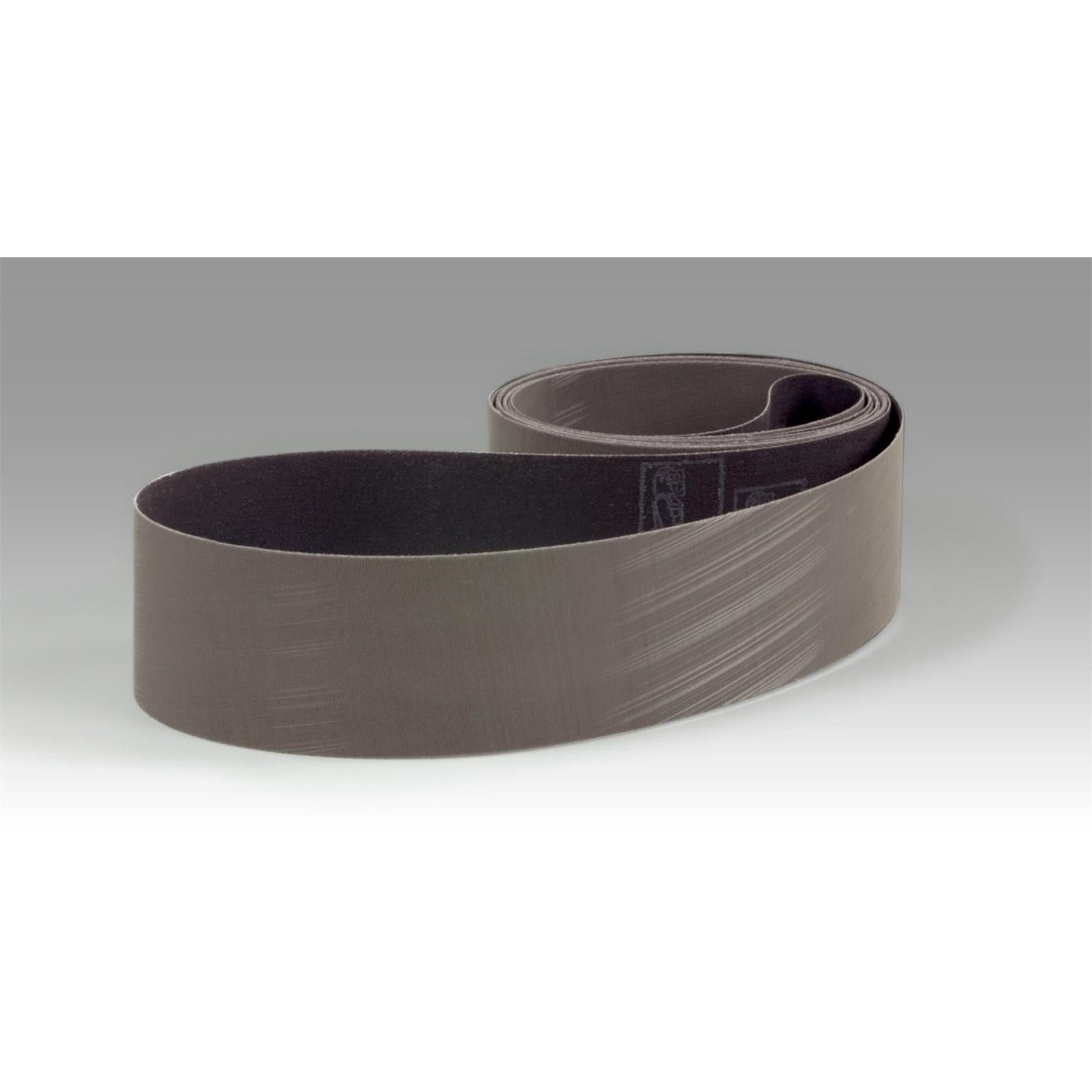

3M 7010361182 Abrasive Belt 106x4 Inch Ao Cloth

Product Description

The 3M 7010361182 is a Trizact 237AA coated abrasive belt designed for intermediate finishing and fine polishing on metal surfaces. It uses 3M microreplication technology in which micron-graded aluminum oxide particles are formed into three-dimensional pyramids and bonded to an X-weight cloth backing. As the pyramids wear down, fresh, sharp mineral is continuously exposed. The result is a consistent cut rate and a predictable, fine surface finish throughout the life of the belt. The belt measures 106 inches in length and 4 inches in width and weighs approximately 0.59 pounds.

This belt is suited for metal fabrication, precision grinding, and finishing operations in industrial and manufacturing environments. It performs well in robotic and automated applications where consistent finish quality is required across long production runs. Typical applications include intermediate stock removal and fine polishing prior to plating, buffing, or coating. The flexible cloth backing conforms to contoured workpiece surfaces, making it useful on cylindrical, flat, and irregular geometries.

Key Features

• Microreplication technology forms aluminum oxide into self-sharpening abrasive pyramids for consistent cut and finish
• Fresh mineral is continuously exposed as pyramids wear, extending usable belt life
• Runs cooler than conventional abrasives, reducing heat buildup at the workpiece
• X-weight cloth backing provides flexibility for finishing over contours and complex geometries
• Three-dimensional abrasive structure delivers uniform finishes in robotic and automated applications
• Produces finer surface finishes than conventional electrostatically coated abrasive belts

Compatibility

Designed for use on belt grinders and finishing machines that accept 106-inch by 4-inch abrasive belts in industrial metal finishing applications.

Installation Notes

Installation and belt changes should be performed by qualified machine operators or industrial maintenance personnel with the machine powered down and locked out per applicable OSHA lockout/tagout procedures. Verify belt tracking and tension according to the machine manufacturer's specifications before resuming operation. Inspect the belt for tears or delamination before each use and do not operate a damaged belt.

Technical Specifications

• Belt Length: 106 inches
• Belt Width: 4 inches
• Abrasive Mineral: Aluminum Oxide
• Backing Material: X-Weight Cloth
• Color: Gray
• Weight: 0.59 pounds
• Unit of Measure: Each
• UPC: 00051115268182

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010361182
