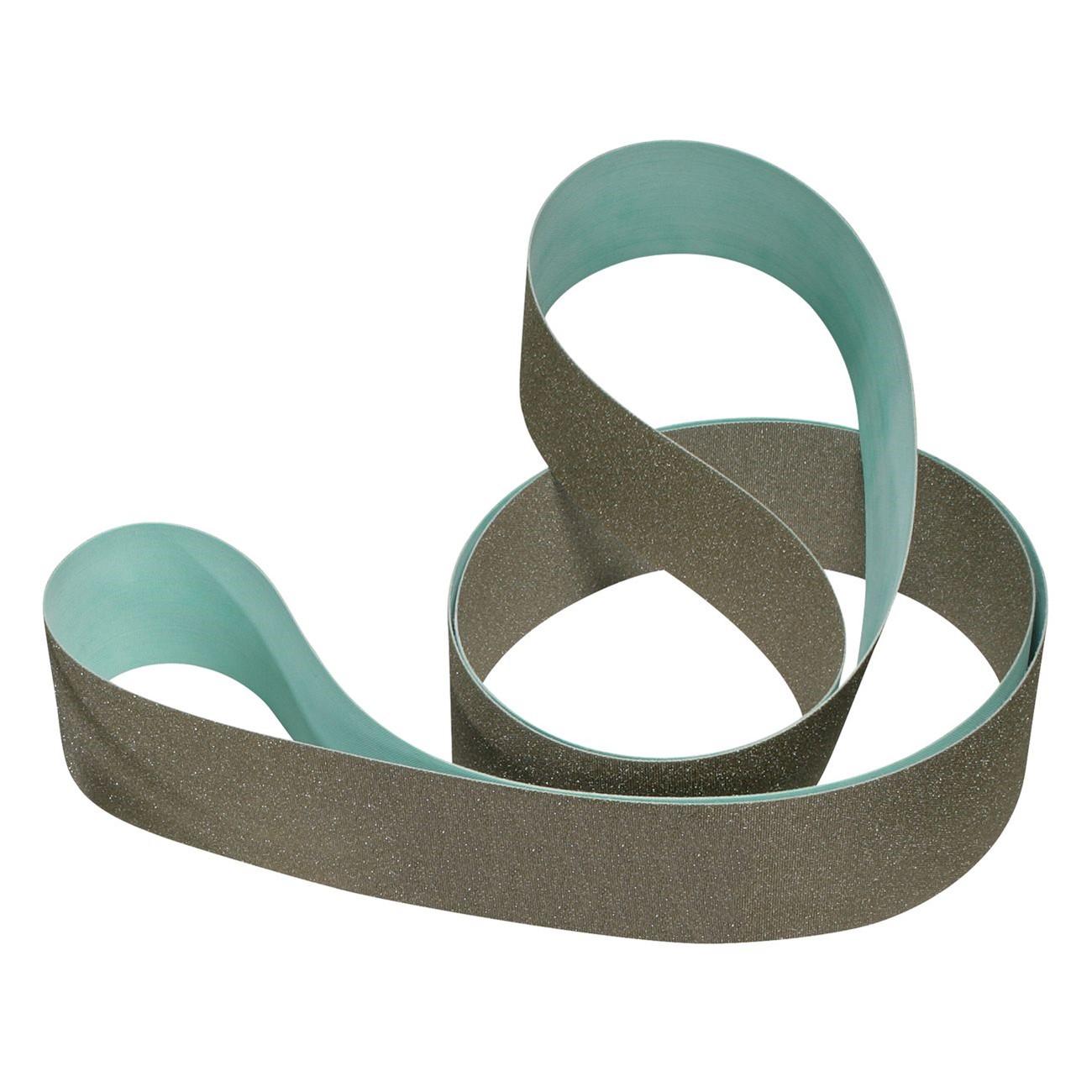

3M 7010360979 Diamond Abrasive Belt 18x1 Inch

Product Description

The 3M 7010360979 is a flexible diamond abrasive belt designed for precision grinding and finishing on hard, dense materials. It uses micron-graded diamond mineral anchored to a premium low-stretch cloth backing with a metal bond in an open dot pattern. This construction delivers consistent cutting action, long service life, and resistance to loading. The belt measures 18 inches in length and 1 inch in width, making it compatible with standard narrow belt grinding machines. It is used primarily by machinists, fabricators, and tool-and-die technicians working on difficult-to-grind substrates.

This belt is suited for both dry and wet grinding applications on stone, glass, ceramic, metal carbide, and composite materials. The open dot pattern allows swarf and debris to clear the cutting surface during use, reducing heat buildup and clogging. It performs well in aerospace, tooling, and precision manufacturing environments where conventional abrasive belts wear too quickly. The low-stretch backing maintains consistent contact pressure across the workpiece, which is important for controlled stock removal and surface finish accuracy.

Key Features

• Micron-graded diamond mineral for consistent, controlled cut rate
• Metal bond anchors diamond particles firmly to extend abrasive life
• Open dot pattern reduces loading and allows debris to escape during grinding
• Premium low-stretch cloth backing maintains stable contact pressure
• Compatible with stone, glass, ceramic, metal carbide, and composite materials
• Available in multiple dot patterns to match different material and finish requirements

Compatibility

Designed for use on standard narrow belt grinding and finishing machines accepting 18-inch by 1-inch abrasive belts. Suitable for grinding stone, glass, ceramic, metal carbide, and composite materials.

Installation Notes

Installation of abrasive belts should be performed by qualified machinists or grinding equipment operators following the machine manufacturer's guidelines. Power down and lock out the grinder before changing belts. Confirm belt tracking and tension per equipment specifications before resuming operation. Wear appropriate PPE including eye protection and gloves when handling and installing abrasive belts.

Technical Specifications

• Belt Length: 18 inches
• Belt Width: 1 inch
• Abrasive Type: Diamond
• Abrasive Grade: Micron-graded
• Bond Type: Metal bond
• Backing Material: Cloth
• Pattern: Open dot
• Color: Red
• Weight: 0.8 pounds
• UOM: Each

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010360979
