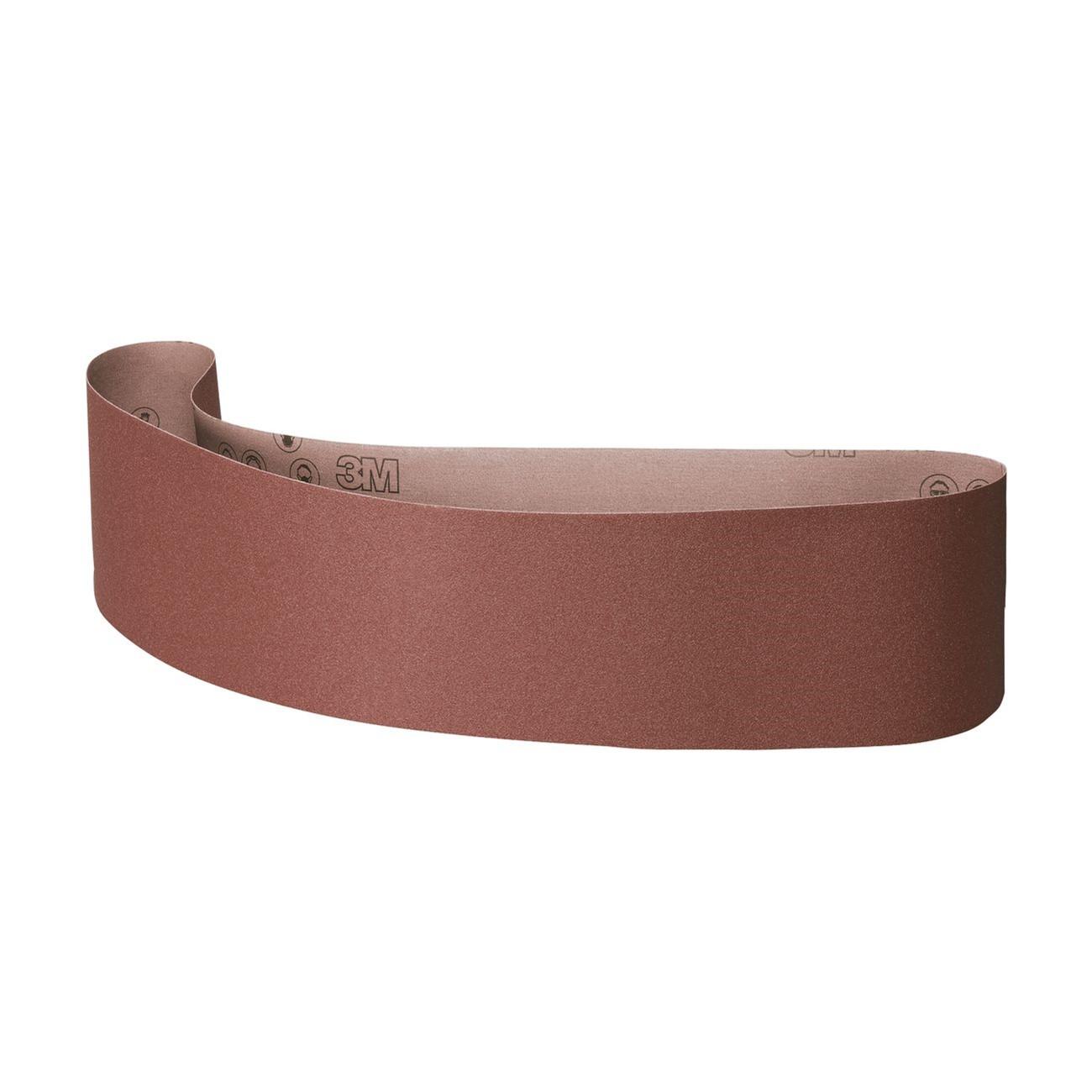

3M 7010360796 Abrasive Belt P180 Grit Ao 90x4 Inch

Product Description

The 3M 7010360796 is a coated abrasive cloth belt designed for grinding, blending, deburring, and finishing on metal surfaces, including stainless steel. Built on a tough polyester backing, the belt uses aluminum oxide abrasive grains bonded with a heat-resistant resin coating. This construction holds up under pressure, heat, and wet or dry operating conditions. The 361F series is a common choice in fabrication and metalworking shops where consistent stock removal and surface finish quality are both required across high-volume runs. Rated at P180 grit, it delivers controlled finishing action suited to the final stages of surface preparation.

This belt is well-suited to stainless steel coil finishing lines, sheet grinding, centerless grinding, and backstand operations in light industrial and fabrication environments. Its flexibility allows it to conform to workpiece contours without sacrificing cut rate, making it a practical option for both flat and curved metal surfaces. The belt performs in both wet and dry setups, which gives shops flexibility in their process without requiring separate product inventories for each application type. Licensed trade fabricators and metal finishing technicians are the primary installers and operators.

Key Features

• Aluminum oxide abrasive grains provide fast cutting and consistent performance across a range of metal surfaces
• Polyester backing resists tearing and delivers uniform pressure transfer in medium-pressure applications
• Heat-resistant resin bond keeps abrasive grains in place under sustained heat and pressure
• Suitable for wet and dry applications without performance compromise
• Designed for coil finishing, sheet grinding, centerless, and backstand machine setups
• P180 grit rating targets controlled finishing and surface blending in final-stage metalwork

Compatibility

Designed as a direct-fit coated abrasive belt for backstand, centerless, and coil finishing machine setups requiring a 90 inch by 4 inch belt configuration on metal grinding and finishing applications.

Installation Notes

Installation should be performed by qualified machine operators or metalworking technicians familiar with abrasive belt equipment. Verify the belt tracking direction matches the arrow or splice orientation marked on the belt before powering the machine. Ensure the machine is fully de-energized and locked out before changing belts. Inspect the contact wheel, platen, and idler for wear or damage before installing a new belt.

Technical Specifications

• Grit: P180
• Abrasive Material: Aluminum Oxide (AO)
• Belt Length: 90 inches
• Belt Width: 4 inches
• Backing Type: Polyester Cloth
• Bond Type: Heat-Resistant Resin
• Color: Brown
• Application Type: Wet or Dry
• Weight: 0.44 pounds
• UOM: Each

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010360796
