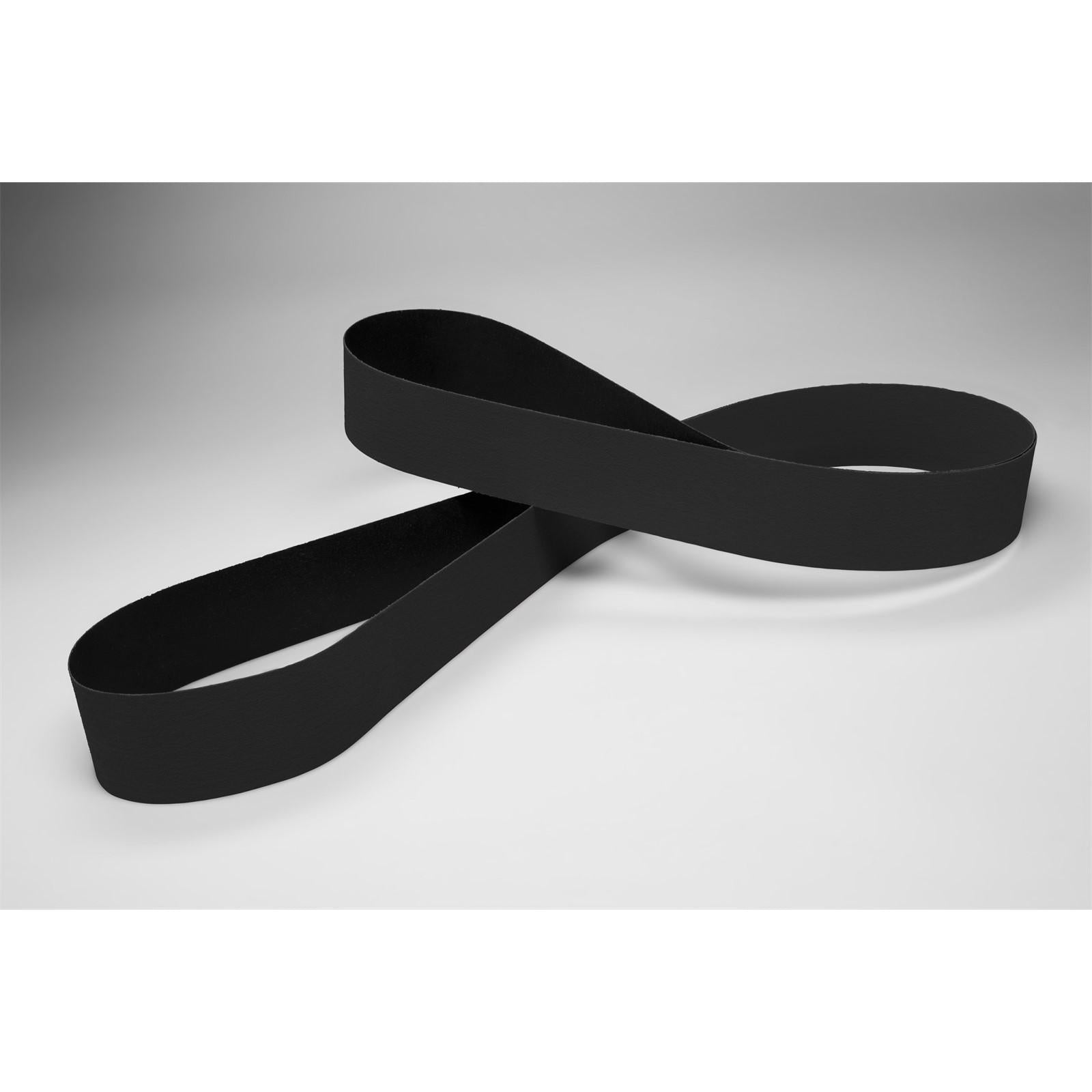

3M 7010360644 Abrasive Belt 132x4 Inch P60 Grit Silicon Carbide

Product Description

The 3M 7010360644 is a silicon carbide coated abrasive belt designed for grinding, blending, deburring, and finishing on metal workpieces. Measuring 132 inches in length and 4 inches in width, this P60-grit belt is built for backstands and similar stationary abrading equipment. The sharp silicon carbide mineral fractures consistently during use, maintaining a clean cutting edge throughout the belt life. A heat-resistant resin bond locks the abrasive to a tough polyester cloth backing, giving the belt durability under pressure, heat, and wet conditions without tearing or nicking.

This belt is suited for both wet and dry applications in metal fabrication and finishing environments. Typical uses include stock removal, surface blending, and deburring on ferrous and non-ferrous metals. The flexible cloth backing conforms to contours and supports a range of stock removal rates from heavy-duty grinding through finer finishing passes. It is commonly used by metal fabricators, maintenance technicians, and industrial grinding operators working on backstands and similar contact-wheel equipment.

Key Features

• Silicon carbide abrasive mineral cuts faster than aluminum oxide and fractures consistently for a uniform finish
• P60 grit provides aggressive stock removal with a controlled surface finish
• Tough, water-resistant polyester cloth backing supports wet and dry operation without tearing or nicking
• Heat-resistant resin bond secures abrasive to backing for durability under pressure and heat
• Flexible cloth construction conforms to workpiece geometry on backstands
• Belt dimensions of 132 inches by 4 inches suit standard backstand equipment configurations

Compatibility

Designed for use on backstands for grinding and finishing applications on all metals, including ferrous and non-ferrous materials, in wet or dry operating conditions.

Installation Notes

Installation and belt changes on backstand equipment should be performed by qualified personnel following the equipment manufacturer's guidelines. Disconnect and lock out power to the backstand before removing or mounting a belt. Verify belt tracking and tension according to machine specifications before resuming operation. Observe applicable workplace safety standards and wear appropriate personal protective equipment during use.

Technical Specifications

• Belt Length: 132 inches
• Belt Width: 4 inches
• Grit: P60
• Abrasive Mineral: Silicon Carbide
• Backing Material: Polyester Cloth
• Bond Type: Resin
• Application: Grinding, Blending, Deburring, Finishing
• Weight: 1.21 pounds
• UPC: 00051115268915

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010360644
