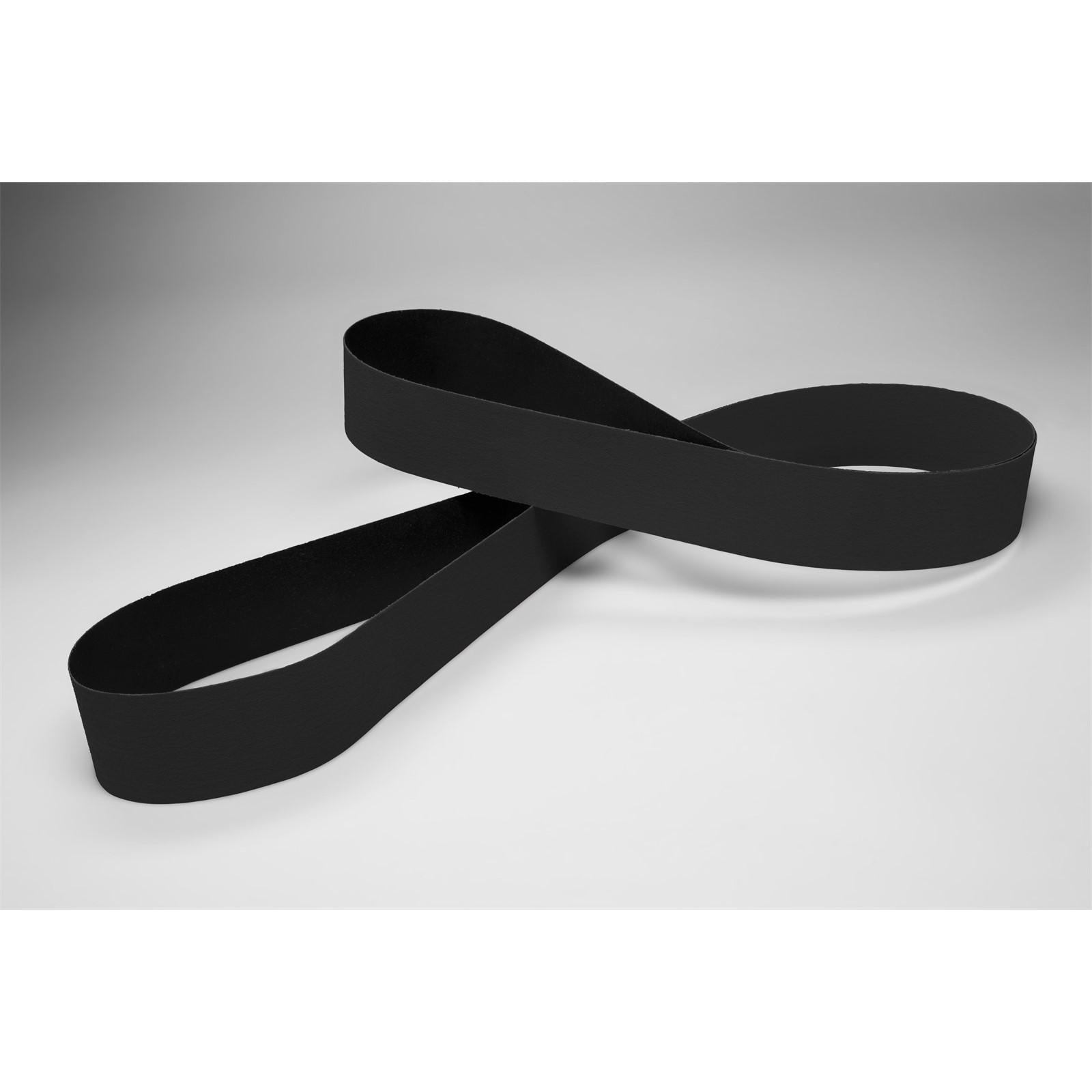

3M 7010360634 Abrasive Belt 132x4 Inch P180 Grit

Product Description

The 3M 7010360634 is a coated abrasive cloth belt designed for grinding, blending, deburring, and finishing operations on metal surfaces. Built with sharp silicon carbide mineral bonded to a tough polyester cloth backing using heat-resistant resin, this belt delivers consistent cut and finish from the start of belt life through the end. At 132 inches long and 4 inches wide with a P180 grit rating, it suits backstand applications where a fine, uniform surface finish is required. The water-resistant backing allows wet or dry use without tearing or edge nicking under sustained pressure and heat.

This belt is intended for use on backstand grinders in metal fabrication, manufacturing, and maintenance environments. It handles a range of metalworking tasks including surface blending, light material removal, and finish work on ferrous and non-ferrous metals. The silicon carbide mineral fractures consistently during use, exposing fresh cutting edges and maintaining finish quality throughout the belt life. Typical installers and operators include machinists, fabricators, and maintenance technicians working in industrial and shop settings.

Key Features

• Silicon carbide abrasive cuts faster than aluminum oxide and maintains a consistent finish
• Heat-resistant resin bond holds abrasive securely under pressure, heat, and moisture
• Water-resistant polyester cloth backing supports both wet and dry applications
• Flexible cloth construction conforms to contours on backstand equipment
• P180 grit rating suited for fine finishing and surface blending on metal
• Self-fracturing mineral exposes fresh cutting edges to extend usable belt life

Compatibility

Designed for use on backstand grinders and contact-wheel machines that accept 132-inch by 4-inch abrasive belts for metal grinding and finishing applications.

Installation Notes

Belt installation should be performed by a qualified operator following the machine manufacturer's guidelines for belt tensioning and tracking. Power down and lockout the grinder before mounting or removing any abrasive belt. Verify belt travel direction matches the arrow marked on the belt backing before startup. Inspect the belt, contact wheel, and platen for damage before each use.

Technical Specifications

• Belt Length: 132 inches
• Belt Width: 4 inches
• Grit: P180
• Abrasive Mineral: Silicon Carbide
• Backing Material: Polyester Cloth
• Bond Type: Resin
• Application: Wet or Dry
• Color: Black
• Weight: 0.63 pounds
• Unit of Measure: Each

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010360634
