3M 7010360486 Abrasive Belt 229x3 Inch 50 Grit Ceramic

Product Description

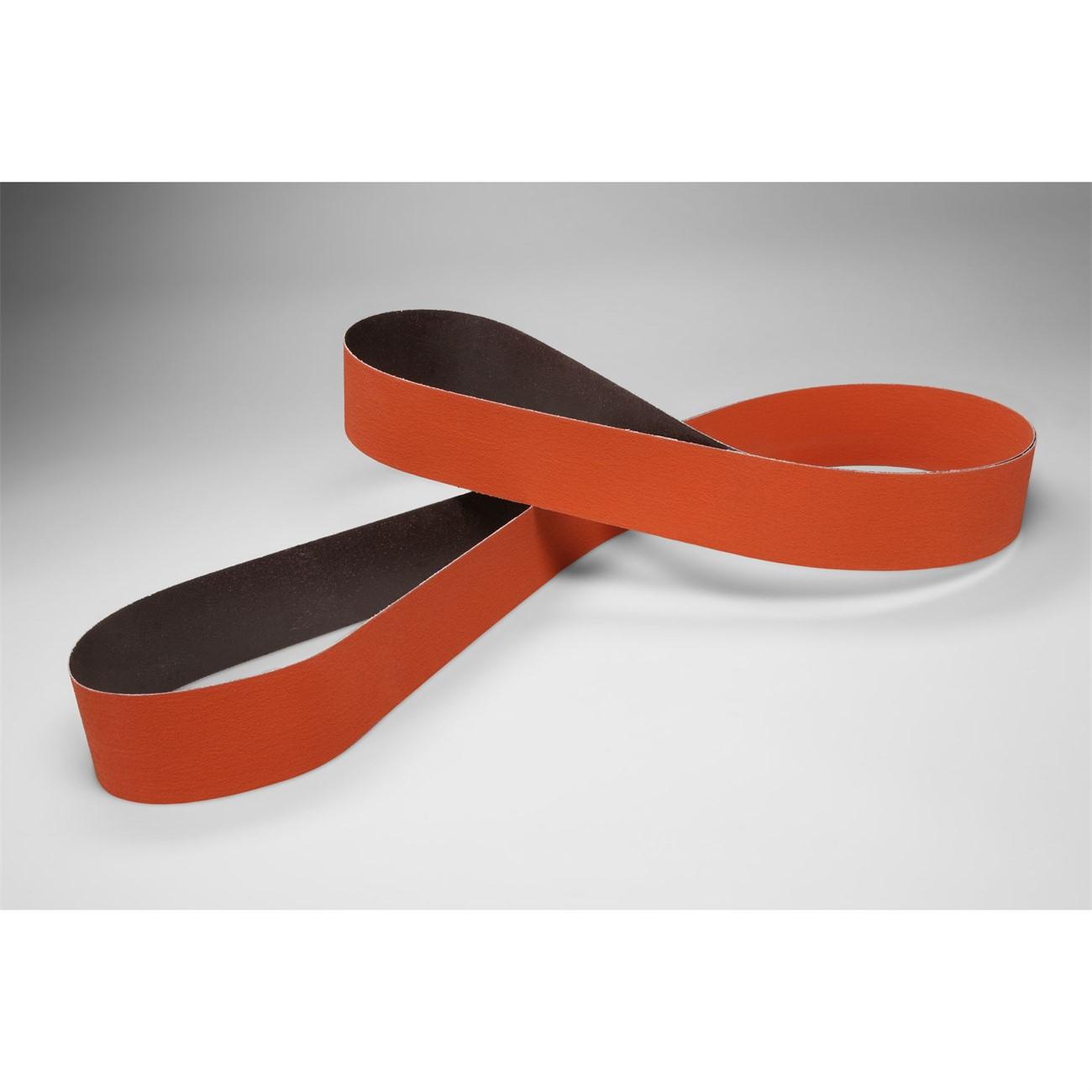

The 3M 7010360486 is a coated abrasive cloth belt engineered for demanding metal finishing and stroke sanding applications. Built on an X-weight cotton backing, it uses a blended ceramic aluminum oxide grain that delivers a high cut rate and extended belt life. A built-in grinding aid reduces heat buildup during aggressive material removal, protecting both the workpiece and the belt. At 229 inches long and 3 inches wide with a 50 grit designation, this belt is suited for wide-stroke sanding operations on ferrous and non-ferrous metals. Installation and operation are handled by metalworking professionals and abrasive finishing technicians.

This belt is designed for stroke sanding and surface finishing on a broad range of metals, including nickel alloys and stainless steel. The anti-friction backing allows the belt to track smoothly on contact wheels and platens, reducing chatter and improving surface consistency. It is well suited for fabrication shops, aerospace finishing lines, and industrial metalworking operations where tight finish tolerances are required and heat-sensitive alloys must be protected during grinding.

Key Features

• Ceramic aluminum oxide blend grain for high cut rate and long service life
• X-weight cotton backing withstands aggressive sanding and grinding pressure
• Grinding aid reduces heat generation and lowers grinding temperatures
• Anti-friction backing promotes smooth belt tracking on platens and contact wheels
• 50 grit designation suited for aggressive stock removal with controllable finish
• Performs on stainless steel, nickel, and a variety of other metal substrates

Compatibility

Designed as an OEM-style coated abrasive replacement belt for stroke sanders and wide-platen belt finishing machines accepting a 229 inch by 3 inch belt configuration.

Installation Notes

Belt installation should be performed by qualified metalworking or abrasive finishing technicians. Ensure the sanding machine is fully de-energized and locked out before mounting or removing belts. Verify belt tracking alignment and tension according to the machine manufacturer guidelines before resuming operation. Inspect the belt for tears or delamination prior to each use and do not exceed the machine rated speed for this belt size.

Technical Specifications

• Belt Length: 229 inches
• Belt Width: 3 inches
• Grit: 50
• Abrasive Grain: Ceramic Aluminum Oxide Blend
• Backing Material: X-weight Cotton Cloth
• Abrasive Type: Coated
• Weight: 1.69 pounds
• UOM: Each
• UPC: 00051125273244

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010360486
