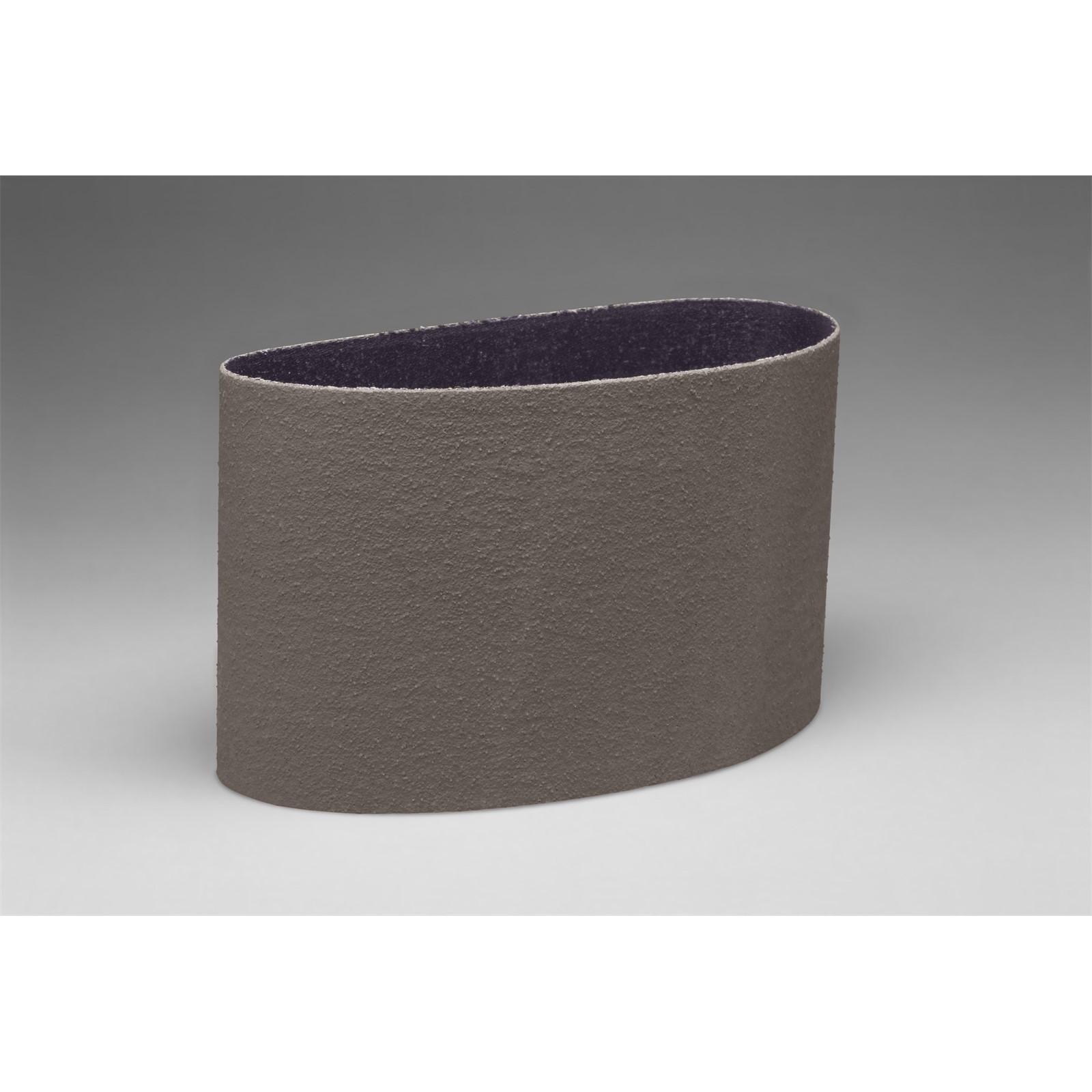

3M 7010360483 Abrasive Belt 48x6 Inch Aluminum Oxide

Product Description

The 3M 7010360483 is a Trizact 237AA abrasive belt designed for intermediate finishing and fine polishing applications in industrial and manufacturing environments. It uses 3M microreplication technology, where micron-graded aluminum oxide particles are formed into precise three-dimensional pyramids and bonded to an X weight cloth backing. As the abrasive pyramids wear down during use, fresh, sharp mineral is continuously exposed, producing a consistent cut rate and a predictable, fine surface finish throughout the life of the belt. The belt measures 48 inches in length and 6 inches in width and weighs approximately 0.39 pounds.

This belt is suited for robotic and automated grinding applications where finish consistency across high part volumes is critical. It is also used in manual finishing operations for contoured or flat workpieces prior to plating or buffing. The flexible cloth backing conforms to surface profiles, making it effective on curved or irregular geometries. Typical industries include metal fabrication, aerospace component finishing, and precision machining shops where a repeatable, fine finish is required before downstream surface treatment processes.

Key Features

• Microreplication technology forms aluminum oxide into self-sharpening abrasive pyramids for consistent cut and finish
• Fresh mineral is continuously exposed as pyramids wear, extending usable belt life
• Runs cooler than conventional coated abrasives, reducing heat-related workpiece distortion
• X weight cloth backing provides flexibility for finishing over contours and complex geometries
• Three-dimensional abrasive structure delivers highly consistent finishes in robotic or automated applications
• Produces finer surface finishes than conventionally electrostatically coated abrasive belts

Compatibility

Designed for use on belt grinders, finishing machines, and automated robotic finishing systems that accept 48 inch by 6 inch abrasive belts for metalworking and surface preparation operations.

Installation Notes

Installation should be performed by a qualified machine operator or maintenance technician familiar with belt grinder and finishing equipment. Power down and lock out the machine before changing the abrasive belt. Confirm belt tracking and tension according to the equipment manufacturer specifications before resuming operation. Inspect the belt for tears or delamination prior to each use.

Technical Specifications

• Belt Length: 48 inches
• Belt Width: 6 inches
• Abrasive Mineral: Aluminum Oxide (AO)
• Backing Material: X Weight Cloth
• Color: Gray
• Weight: 0.39 pounds
• Unit of Measure: Each
• Minimum Order Quantity: 20
• UPC: 00051125329781

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010360483
