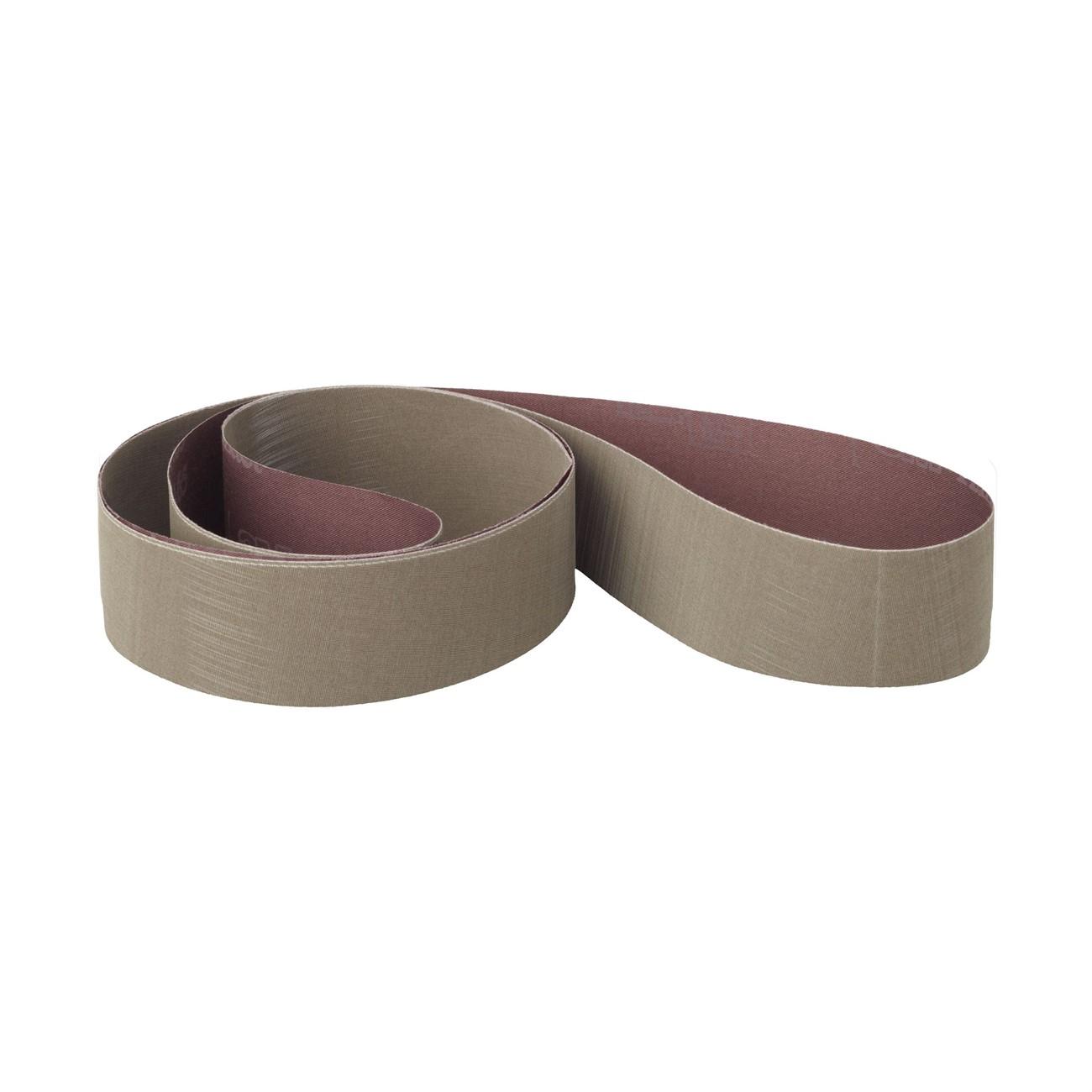

3M 7010360480 Trizact 307EA Abrasive Belt 76x1.25 in Ao

Product Description

The 3M 7010360480 is a Trizact 307EA coated abrasive belt designed for precision finishing in metalworking and surface preparation applications. It uses microreplication technology in which micron-graded aluminum oxide particles are formed into three-dimensional pyramidal structures and bonded to a flexible rayon cloth backing. As the pyramids wear during use, fresh, sharp abrasive mineral is continuously exposed, producing a consistent cut rate and a predictable fine finish across the full life of the belt. At 76 inches long and 1-1/4 inches wide, this belt suits a range of stationary and handheld belt grinders used in metal fabrication shops and finishing lines.

This belt is suited for intermediate finishing and fine polishing steps prior to plating or buffing operations. The flexible rayon backing conforms to contoured and irregular surfaces, making it appropriate for both flat stock and shaped workpieces. Its three-dimensional abrasive structure delivers highly repeatable surface finishes, which is particularly valuable in robotic or automated finishing cells where consistency across a production run is critical. It is also effective in manual finishing applications where a controlled, predictable scratch pattern is required before final surface treatment.

Key Features

• Microreplication technology forms aluminum oxide into self-sharpening pyramidal structures that expose fresh mineral as they wear
• Runs cooler than conventional coated abrasives, reducing heat-related surface damage and belt glazing
• Flexible rayon cloth backing conforms to contoured surfaces for uniform contact and consistent finish
• Three-dimensional abrasive design produces repeatable, predictable scratch patterns across the full belt life
• Produces finer finishes than conventional electrostatically coated abrasives of comparable grit
• Well-suited for intermediate finishing and fine polishing prior to plating or buffing operations

Compatibility

Designed for use on belt grinders and finishing machines that accept a 76-inch by 1-1/4-inch belt configuration. Intended for metalworking applications including finishing of steel, stainless steel, and non-ferrous metals prior to plating or buffing.

Installation Notes

Installation should be performed by a qualified operator following the machine manufacturer's belt-change procedure. Power down and lock out the belt grinder before removing or installing the belt. Verify belt tracking and tension per the machine manufacturer's specifications before resuming operation. Inspect the contact wheel or platen for wear or debris that could cause uneven belt loading or premature belt failure.

Technical Specifications

• Belt Length: 76 inches
• Belt Width: 1.25 inches
• Abrasive Mineral: Aluminum Oxide
• Backing Material: Rayon Cloth
• Abrasive Construction: Microreplication (Trizact)
• Weight: 0.12 pounds
• Unit of Measure: Each
• Minimum Order Quantity: 50
• UPC: 00051125366113

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010360480
