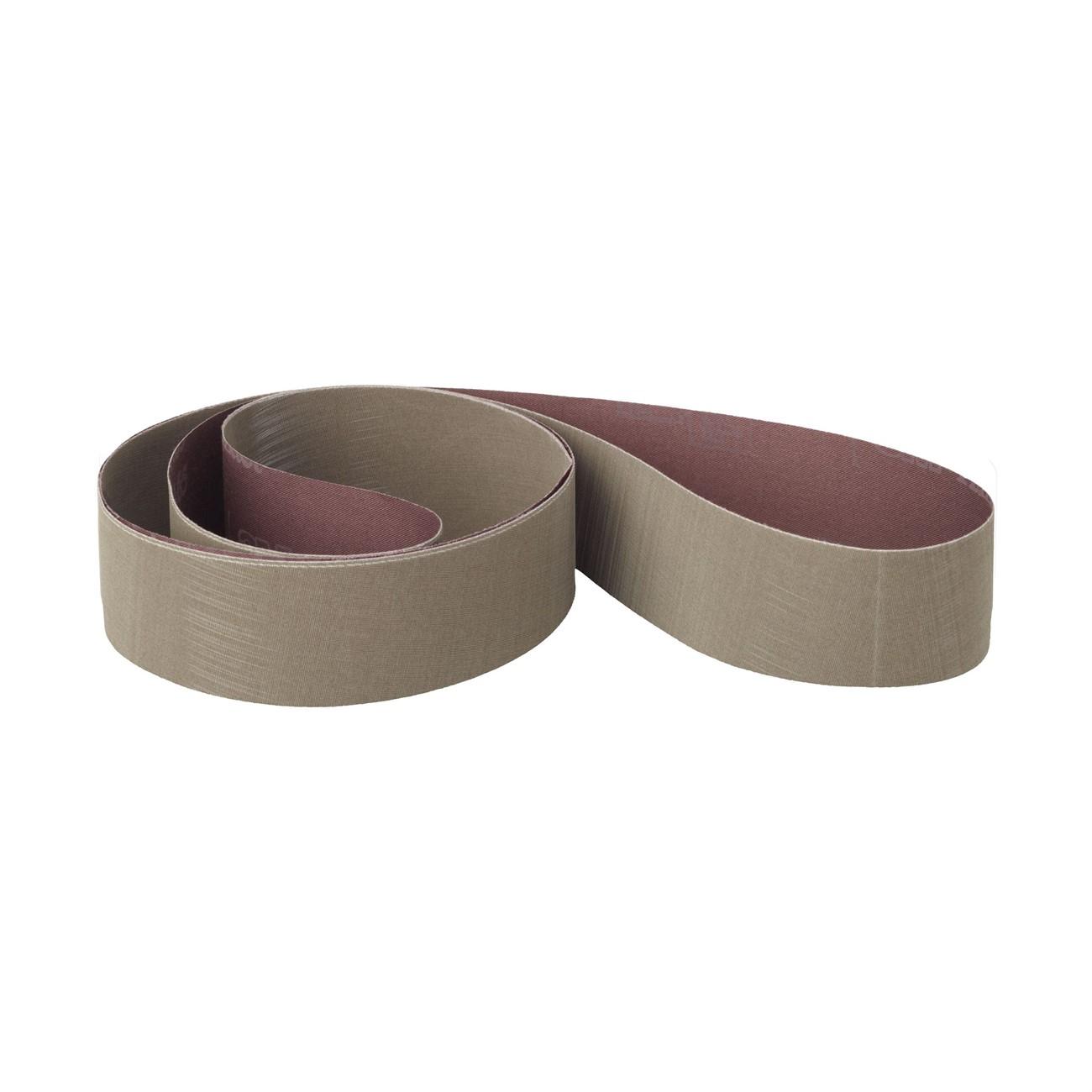

3M 7010360375 Trizact 307EA Abrasive Belt 76x2 Inch Ao

Product Description

The 3M 7010360375 is a Trizact 307EA abrasive belt designed for intermediate finishing and fine polishing on metal and contoured surfaces. It uses microreplication technology in which micron-graded aluminum oxide particles are formed into three-dimensional pyramids and bonded to a flexible rayon cloth backing. As the abrasive pyramids wear down, fresh mineral is continuously exposed, delivering a consistent cut rate and a predictable, fine finish throughout the belt's service life. The belt measures 76 inches in length and 2 inches in width and weighs approximately 0.37 pounds.

This belt is suited for metal finishing operations that require controlled, repeatable results before plating, buffing, or other downstream surface treatments. The flexible rayon backing allows the abrasive surface to conform to curved and contoured workpieces, making it a practical choice for both manual and robotic grinding and finishing applications. Typical users include metal fabricators, machinists, and finishing technicians working in production and job-shop environments.

Key Features

• Microreplication technology forms aluminum oxide into self-sharpening abrasive pyramids that expose fresh mineral as they wear
• Runs cooler than conventional abrasives, reducing heat buildup on workpieces
• Flexible rayon cloth backing conforms to contoured surfaces for consistent contact
• Three-dimensional abrasive structure delivers uniform finishes throughout belt life, including in robotic applications
• Produces finer finishes than conventional electrostatically coated abrasive belts
• Suited for intermediate finishing and fine polishing prior to plating or buffing

Compatibility

Designed for use on belt grinders and finishing machines that accept a 76-inch by 2-inch abrasive belt. Verify that the contact wheel diameter, platen configuration, and belt tracking system on the host machine are appropriate for this belt size before installation.

Installation Notes

Installation should be performed by a qualified technician familiar with abrasive belt equipment. Power down and lock out the machine before changing the belt. Confirm belt tracking and tension according to the machine manufacturer's guidelines before running. Inspect the belt for tears or delamination before each use and do not exceed the machine's rated operating speed.

Technical Specifications

• Belt Length: 76 inches
• Belt Width: 2 inches
• Abrasive Mineral: Aluminum Oxide
• Backing Material: Rayon Cloth
• Color: Gray
• Weight: 0.37 pounds
• Unit of Measure: Each
• UPC: 00051125348164

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010360375
