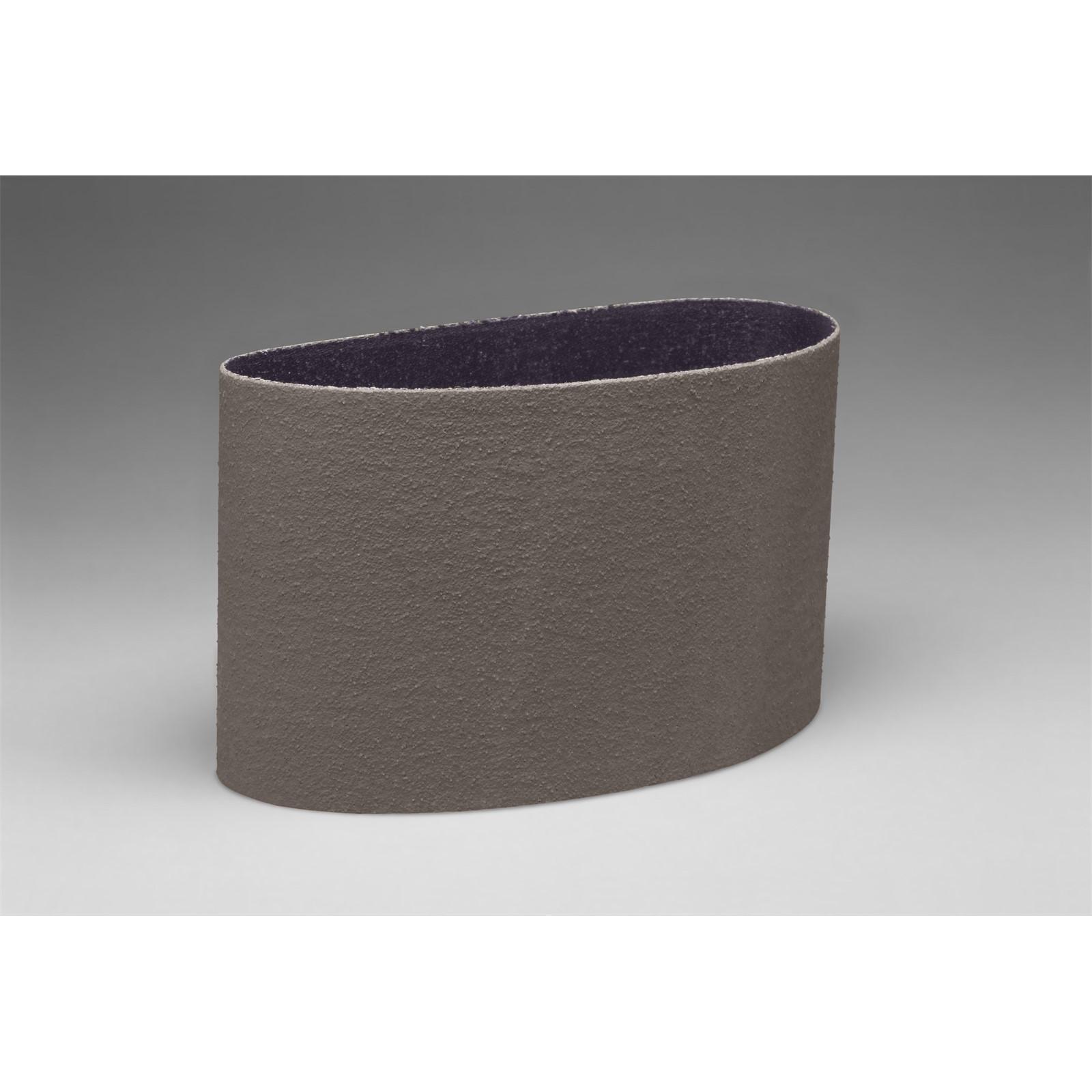

3M 7010360370 Abrasive Belt 6.37x6 Inch Ao Cloth

Product Description

The 3M 7010360370 is a Trizact 237AA coated abrasive belt built for intermediate finishing and fine polishing in metalworking applications. It uses 3M microreplication technology, where micron-graded aluminum oxide mineral is formed into precise three-dimensional pyramids on an X-weight cloth backing. As the pyramids wear, fresh, sharp mineral is continuously exposed. This design produces a consistent cut rate and a predictable, fine surface finish throughout the life of the belt. The cloth backing provides flexibility for finishing over contoured surfaces. It measures 6.37 inches in length and 6 inches in width.

This belt is suited for intermediate finishing and fine polishing steps prior to plating or buffing operations on metal parts. The three-dimensional pyramid structure makes it well-suited for automated and robotic grinding applications where consistent, repeatable finishes are required across high part volumes. It is also used in manual finishing operations in fabrication shops and metalworking environments where surface finish quality is critical before downstream coating or plating processes.

Key Features

• Microreplication technology forms aluminum oxide mineral into self-sharpening pyramids for consistent cut and finish
• Pyramids stay sharp longer and run cooler than conventional coated abrasives
• Three-dimensional design delivers repeatable finishes in robotic and automated applications
• Flexible X-weight cloth backing conforms to contoured workpiece surfaces
• Produces finer finishes than conventional electrostatically coated abrasive belts
• Suited for intermediate finishing and fine polishing prior to plating or buffing

Compatibility

Designed as an OEM-style replacement abrasive belt for belt grinders and finishing machines accepting 6.37 inch by 6 inch belts in metalworking and fabrication applications.

Installation Notes

Abrasive belts should be installed and changed by qualified personnel following the machine manufacturer's guidelines. Power down and lock out the belt grinder or finishing machine before changing belts. Inspect the contact wheel, platen, and belt tracking components before installing a new belt. Do not exceed the maximum operating speed rated for the machine or the belt.

Technical Specifications

• Abrasive Mineral: Aluminum Oxide
• Backing Material: X-Weight Cloth
• Color: Gray
• Belt Length: 6.37 inches
• Belt Width: 6 inches
• Weight: 0.07 pounds
• Unit of Measure: Each

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010360370
