3M 7010360368 Trizact 407EA Abrasive Belt 72x2 Inch

Product Description

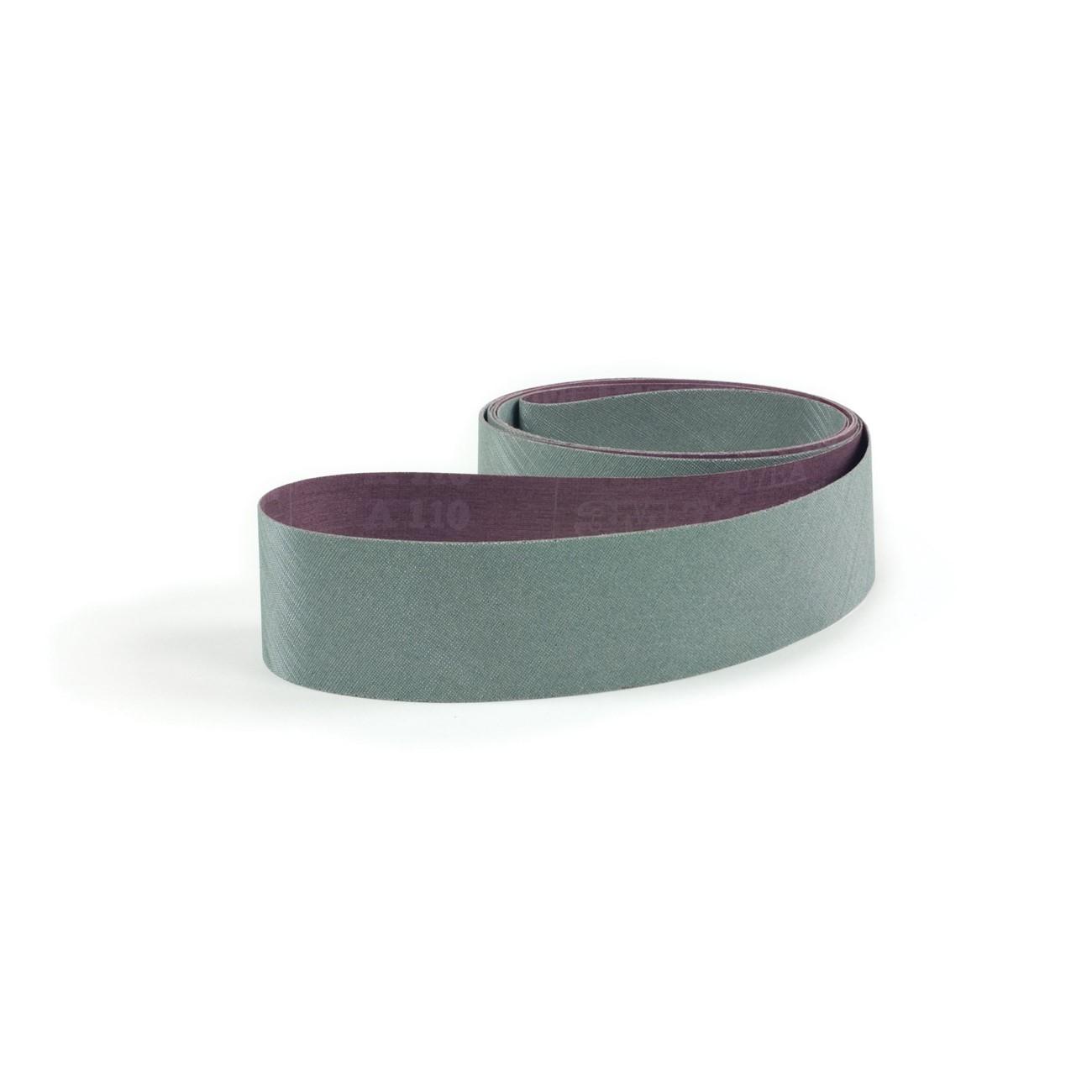

The 3M 7010360368 is a Trizact 407EA coated abrasive belt designed for blending and polishing metal substrates under light-to-medium pressure. The belt uses a silicon carbide mineral on a cloth backing, structured in the Trizact pyramid format that continuously exposes fresh abrasive as the outer layer wears. A built-in grinding aid reduces operating temperature during use, which lowers the risk of heat discoloration on sensitive workpieces. This belt is well suited for dimensioning and finishing passes in production environments and works effectively with stroke sanders and platen sanders.

This belt sees common use in aerospace fabrication, orthopedic implant manufacturing, surgical instrument production, and plating and polishing operations. Its low-temperature cutting action makes it a preferred choice when working titanium and other heat-sensitive alloys. The 72 inch length and 2 inch width fit standard stroke and platen sander configurations used in these industries. It is intended for professional and industrial shop use where consistent surface finish across multiple passes is required.

Key Features

• Trizact structured pyramid abrasive provides consistent cut and extended belt life compared to conventional coated abrasives
• Silicon carbide mineral suited for finishing and polishing metal substrates
• Built-in grinding aid lowers operating temperature, reducing risk of part discoloration on titanium and similar alloys
• Cloth backing withstands the tension and flex demands of stroke and platen sander applications
• Available in grades A110, A90, A60, and A20 to match finish requirements
• Sold per each unit with a minimum order quantity of 50

Compatibility

Designed for use with stroke sanders and platen sanders in aerospace, orthopedic implant, surgical instrument, and plating and polishing applications requiring a 72 inch by 2 inch abrasive belt.

Installation Notes

Installation should be performed by a qualified machine operator familiar with abrasive belt equipment. Power down and lock out the sander before mounting or removing the belt. Verify belt tracking and tension according to the sander manufacturer guidelines before resuming operation. Inspect the contact wheel or platen for wear that could cause uneven belt loading or premature failure.

Technical Specifications

• Abrasive Type: Silicon Carbide
• Belt Series: Trizact 407EA
• Belt Length: 72 inches
• Belt Width: 2 inches
• Backing: Cloth
• Available Grades: A110, A90, A60, A20
• Unit of Measure: Each
• Minimum Order Quantity: 50
• Weight: 0.37 pounds
• UPC: 00051125462112

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010360368
