3M 7010360325 Abrasive Belt 60 Inch Aluminum Oxide Cloth

Product Description

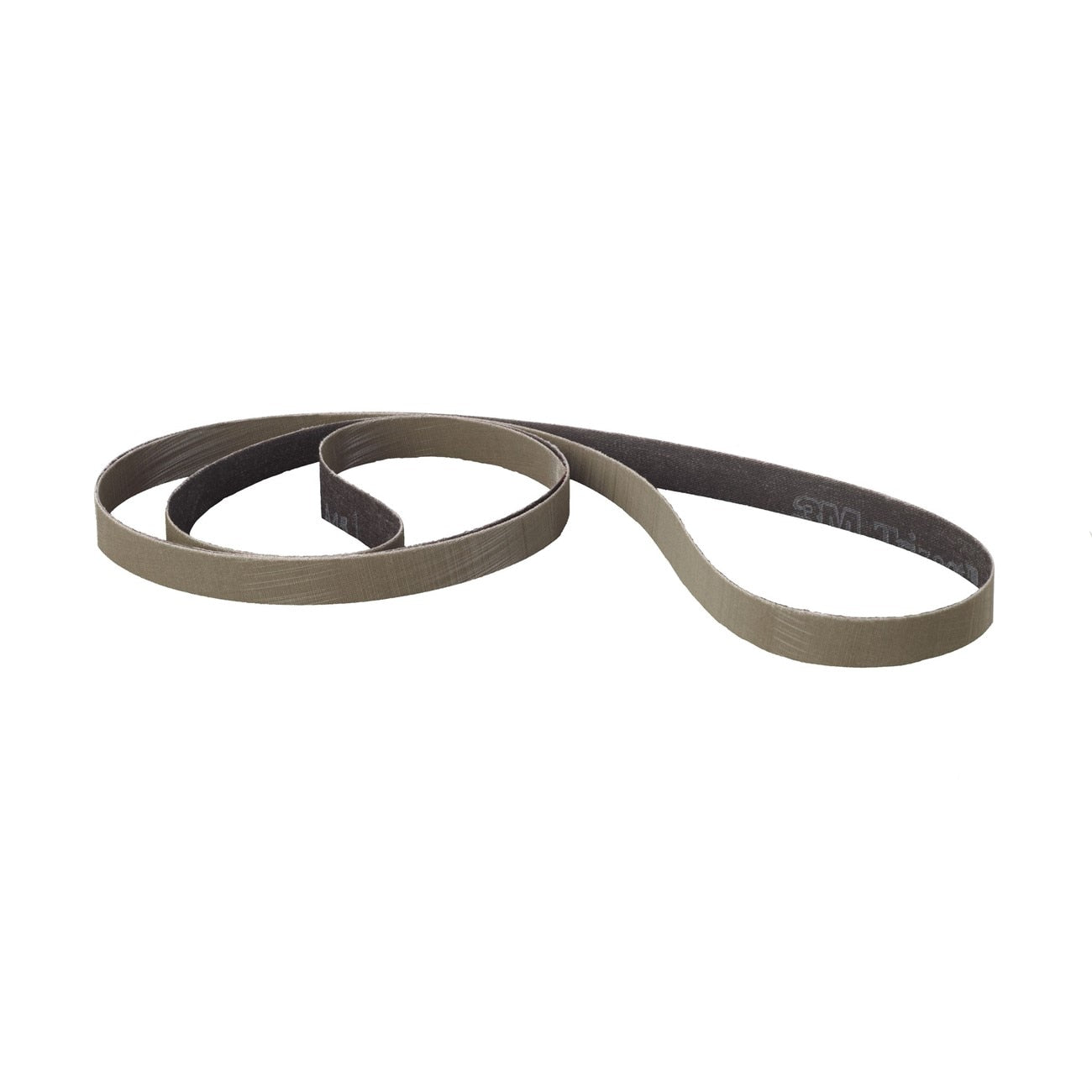

The 3M 7010360325 is a Trizact 237AA abrasive belt designed for intermediate finishing and fine polishing in demanding surface preparation applications. It uses 3M microreplication technology, where micron-graded aluminum oxide particles are formed into uniform three-dimensional pyramids and bonded to an X-weight cloth backing. As the pyramids wear down during use, fresh, sharp abrasive mineral is continuously exposed. This self-renewing structure delivers a consistent cut rate and a predictable, fine finish over the full life of the belt. The belt measures 60 inches in length and 1.5 inches in width and is finished in gray.

This belt is suited for intermediate finishing and fine polishing operations prior to plating or buffing. The flexible cloth backing conforms to contoured surfaces, making it effective for both flat and irregular workpiece geometries. The three-dimensional abrasive structure produces highly consistent surface finishes throughout belt life, which makes it a reliable choice for robotic and automated grinding and finishing lines where repeatability is critical. Manual finishing applications in metal fabrication shops also benefit from the cooler running temperature compared to conventional coated abrasives.

Key Features

• Microreplication technology forms aluminum oxide into uniform abrasive pyramids for consistent cut and finish
• Self-sharpening pyramid structure continuously exposes fresh mineral as the belt wears
• Runs cooler than conventional abrasives, reducing heat-related workpiece distortion
• Flexible X-weight cloth backing conforms to contoured and irregular surfaces
• Produces finer finishes than conventionally electrostatically coated abrasive belts
• Three-dimensional design supports repeatable results in robotic and automated finishing applications

Compatibility

Designed for use on belt finishing machines accepting a 60-inch by 1.5-inch abrasive belt, commonly used in metal fabrication, aerospace component finishing, and pre-plate polishing operations.

Installation Notes

Belt installation should be performed by qualified personnel following the machine manufacturer's guidelines. Power down and lock out the belt finishing unit before changing belts. Verify belt tracking and tension per the equipment specifications before resuming operation. Inspect the belt and machine guards before each use to confirm safe operating condition.

Technical Specifications

• Abrasive Mineral: Aluminum Oxide
• Backing Material: X-Weight Cloth
• Belt Length: 60 inches
• Belt Width: 1.5 inches
• Color: Gray
• Weight: 0.16 pounds
• Unit of Measure: Each

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010360325
