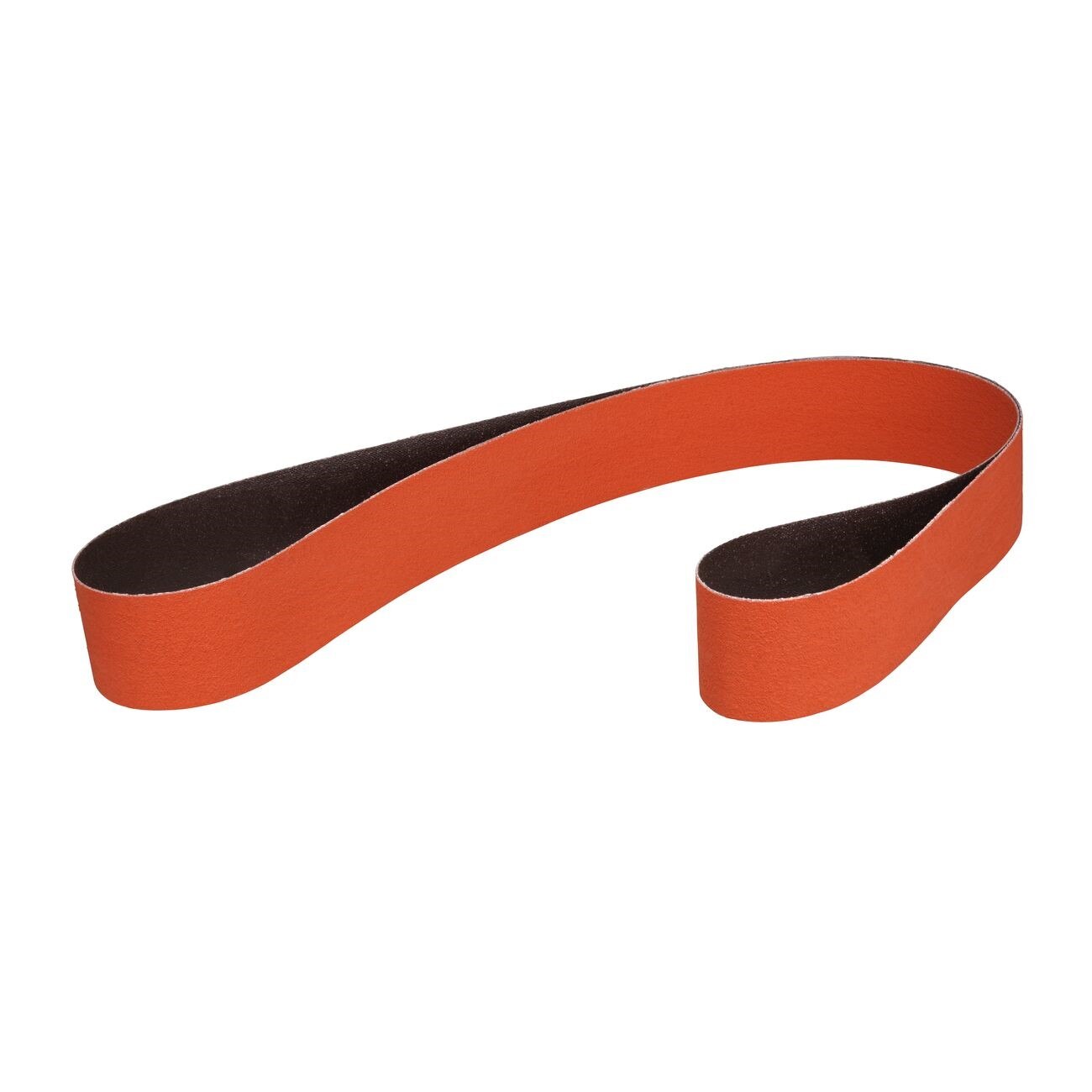

3M 7010360314 Abrasive Belt P120 15.5x2.5 Inch Ceramic Ao

Product Description

The 3M 7010360314 is a coated abrasive belt designed for metal stock removal and finishing applications in industrial and fabrication environments. It uses a blend of ceramic abrasive grain and aluminum oxide, a combination that cuts faster and maintains a sharper edge longer than conventional aluminum oxide belts. The belt measures 15.5 inches in length and 2.5 inches in width with a P120 grit rating. A durable resin bond holds the grain to a heavyweight polyester cloth backing, resisting heat breakdown during extended use. Licensed metalworkers, fabricators, and grinding machine operators are the primary users of this belt.

This belt is suited for high-pressure grinding and finishing on ferrous and non-ferrous metals, including heat-sensitive alloys and stainless steel. The heavyweight cloth backing handles aggressive stock removal passes without delaminating. A built-in grinding aid reduces friction heat at the workpiece surface, making this belt appropriate for stainless steel applications where heat discoloration and workpiece damage are concerns. It can be run dry or with a compatible cutting lubricant depending on the application and substrate requirements.

Key Features

• Ceramic and aluminum oxide grain blend delivers faster cut rate and longer service life than standard AO belts
• P120 grit rating suited for stock removal and intermediate finishing passes on metal
• Heavyweight polyester cloth backing supports high-pressure applications without backing failure
• Built-in grinding aid reduces heat generation when grinding stainless steel
• Durable resin bond resists heat deterioration to extend belt life
• Can be run wet or dry depending on application requirements

Compatibility

Designed as a replacement abrasive belt for stationary and portable belt grinding machines that accept a 15.5-inch by 2.5-inch belt configuration. Confirm machine belt-path dimensions before installation.

Installation Notes

Abrasive belts of this type are installed by qualified machine operators or maintenance technicians following equipment lockout/tagout procedures before belt changes. Ensure the belt tracking and tension are set according to the grinding machine manufacturer specifications before operation. Inspect the belt splice joint for proper orientation relative to the direction of travel before starting the machine. Wear appropriate PPE including eye protection and gloves during installation and operation.

Technical Specifications

• Belt Length: 15.5 inches
• Belt Width: 2.5 inches
• Grit: P120
• Abrasive Material: Ceramic Aluminum Oxide Blend
• Backing Type: Heavyweight Polyester Cloth
• Bond Type: Resin
• Application: Coated, Dry or Wet
• Weight: 0.08 pounds
• UOM: Each
• UPC: 00051119822861

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010360314
