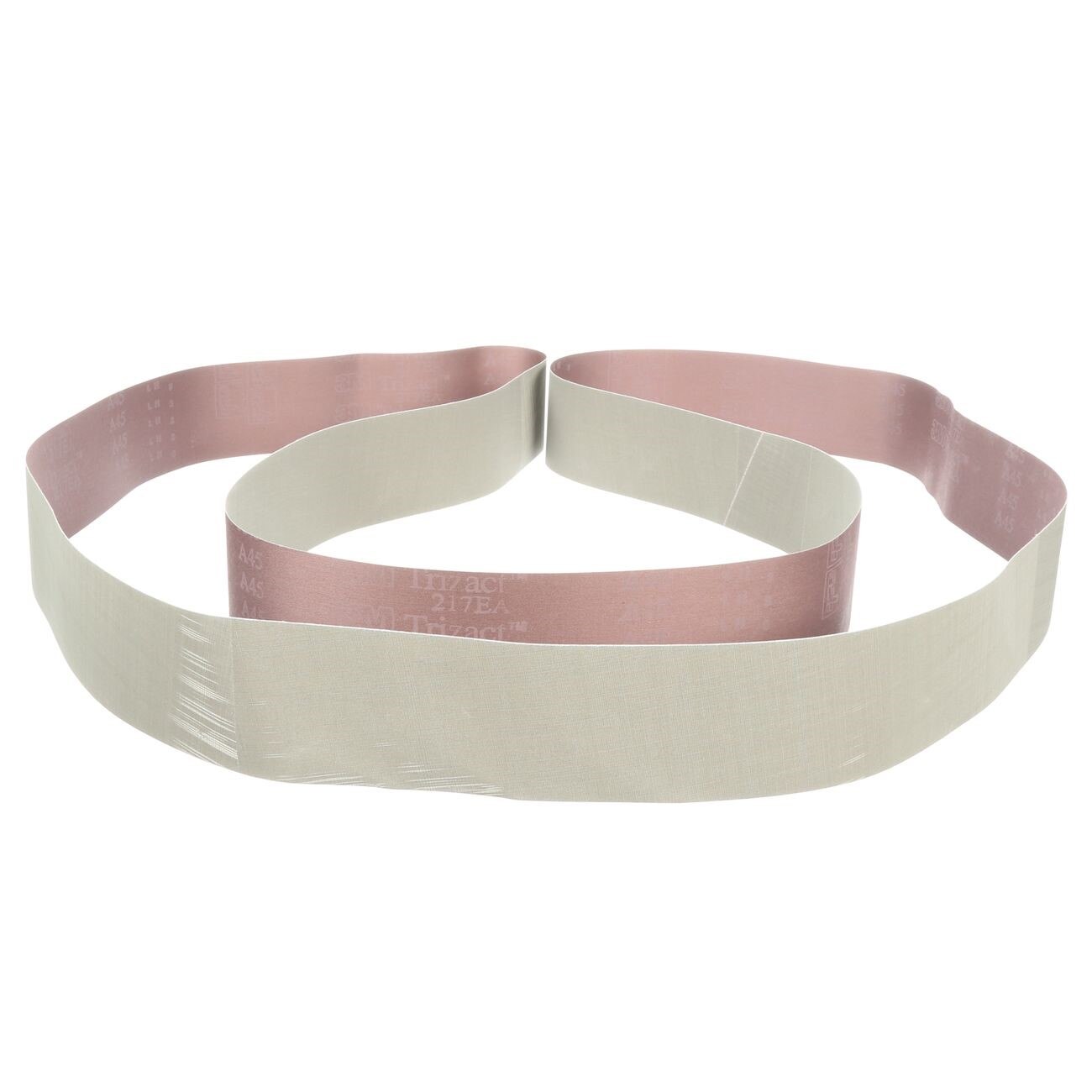

3M 7010360287 Trizact 217EA Abrasive Belt 96x2 Inch Ao

Product Description

The 3M 7010360287 is a Trizact 217EA coated abrasive belt engineered for intermediate finishing and fine polishing applications. It uses proprietary microreplication technology in which micron-graded aluminum oxide particles are formed into precisely shaped pyramids and bonded to a JE-weight rayon cloth backing. As the pyramids wear during use, fresh, sharp mineral is continuously exposed, producing a consistent cut rate and a predictable, fine surface finish from the first pass to the last. The belt measures 96 inches in length and 2 inches in width. It is suited for manual, automated, and robotic finishing lines where repeatable results are required.

This belt is designed for light-pressure finishing operations prior to plating, buffing, or final surface preparation. The flexible JE-weight rayon backing conforms to contoured and irregular surfaces, making it a practical choice for finishing complex part geometries. Its consistent abrasive action and extended service life make it a reliable option in robotic grinding and polishing cells where belt-change frequency and finish repeatability directly affect throughput and quality control.

Key Features

• Microreplication technology continuously exposes fresh aluminum oxide mineral as pyramids wear, maintaining cut rate throughout belt life
• JE-weight rayon cloth backing flexes over contoured surfaces for uniform contact and consistent finishes
• Produces finer finishes than conventional coated abrasive belts of comparable grit designation
• Grinding aid integrated into the abrasive structure helps reduce heat buildup, minimizing the risk of heat-related warping or discoloration on workpieces
• Consistent performance makes this belt well-suited for robotic and automated finishing applications
• Optimized for light-pressure use, allowing controlled mineral breakdown and sustained cut

Compatibility

Designed for use on belt finishing machines and automated or robotic polishing systems accepting 96-inch by 2-inch abrasive belts. Suited for finishing metal components ahead of plating or buffing operations.

Installation Notes

Installation should be performed by qualified finishing equipment operators or maintenance personnel familiar with abrasive belt machinery. Power down and lockout the machine before mounting or removing a belt. Verify belt tracking alignment before resuming operation. Follow equipment manufacturer guidelines for belt tension and guard positioning to ensure safe use.

Technical Specifications

• Belt Length: 96 inches
• Belt Width: 2 inches
• Abrasive Mineral: Aluminum Oxide
• Abrasive Technology: Microreplication
• Backing Material: JE-weight Rayon Cloth
• Color: Tan
• Weight: 0.51 pounds
• Unit of Measure: Each

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010360287
