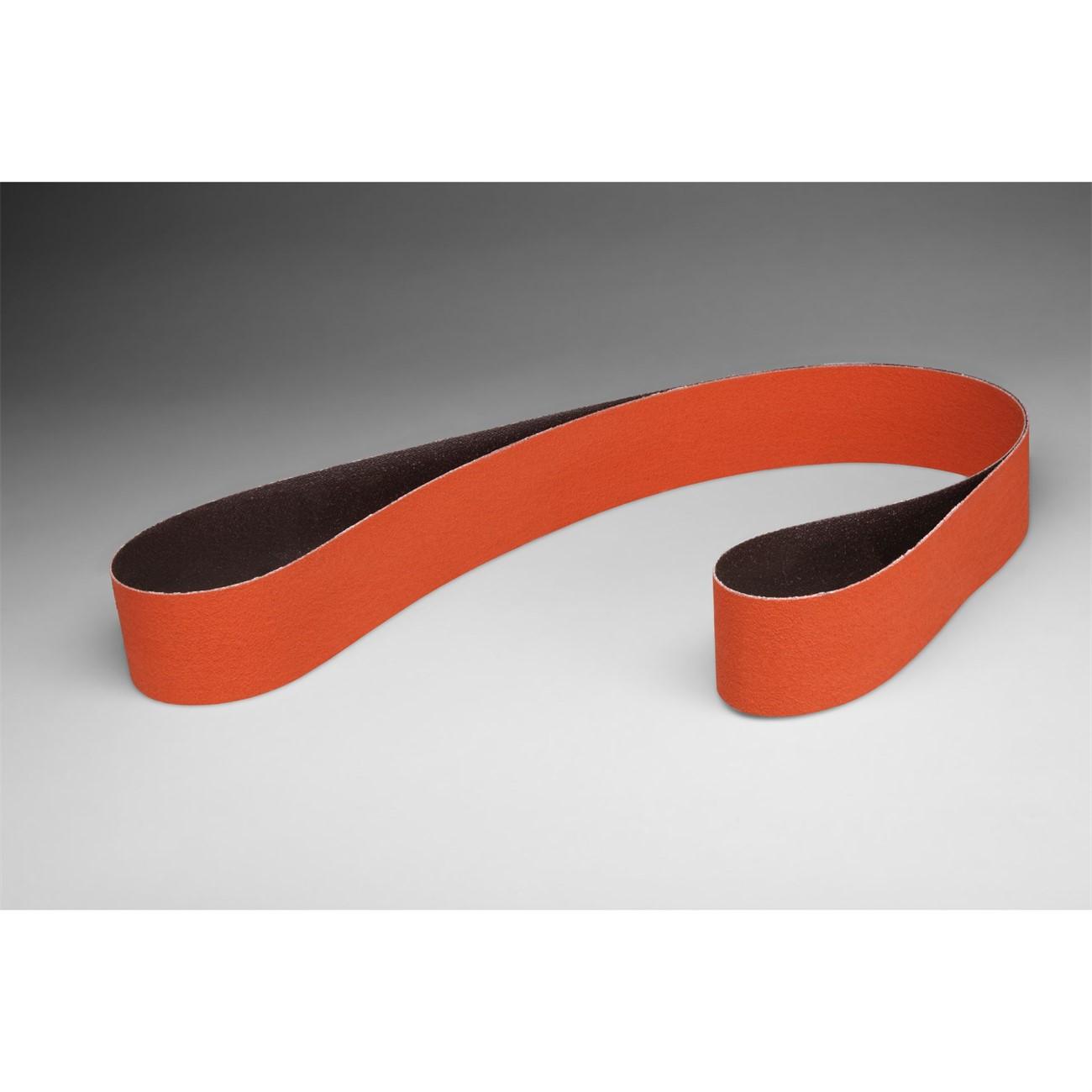

3M 7010360178 Abrasive Belt 80 Grit Ceramic 18.93x2.5 Inch

Product Description

The 3M 7010360178 is a coated abrasive cloth belt engineered for demanding metal finishing and stroke sanding applications. It uses a blended ceramic aluminum oxide grain that delivers a fast cut rate and extended belt life compared to conventional abrasives. The X-weight cotton backing resists tearing and deformation under aggressive sanding and grinding loads. A built-in grinding aid reduces heat buildup at the contact zone, which is critical when working with heat-sensitive alloys. This belt is sized at 18.93 inches long by 2.5 inches wide and is rated at 80 grit for aggressive stock removal with a refined finish on metal substrates.

This belt is suited for fabrication shops, weld grinding, and surface conditioning on nickel alloys, stainless steel, carbon steel, and other metal substrates. It performs well in stroke sanding setups where consistent pressure and smooth belt tracking are required. The anti-friction backing reduces drag, allowing the belt to run cooler and track more predictably on contact wheels and platens. Metalworkers, fabricators, and finishing technicians working in both production and job-shop environments will find this belt applicable to flat, contoured, and weld-seam grinding tasks.

Key Features

• Ceramic aluminum oxide blend provides high cut rate and long belt service life
• X-weight cotton backing withstands aggressive sanding and grinding pressure
• Anti-friction backing allows smooth belt tracking and reduces operating heat
• Grinding aid actively reduces heat at the workpiece surface, protecting heat-sensitive metals
• Effective on stainless steel, nickel alloys, carbon steel, and other metal substrates
• 80 grit rating delivers aggressive stock removal for weld grinding and surface prep

Compatibility

Designed for use on belt sanders and stroke sanders accepting an 18.93 inch by 2.5 inch abrasive belt. Suitable for metal finishing on stainless steel, nickel alloys, and other hard metals in fabrication and production environments.

Installation Notes

Belt installation and replacement should be performed with the sander powered off and the machine fully de-energized per OSHA and equipment manufacturer requirements. Confirm belt tracking and tension before resuming operation. Always wear appropriate PPE including eye protection and gloves when handling abrasive belts and operating grinding equipment. Inspect the belt for damage, tears, or splice separation before each use and do not exceed the machine or belt speed rating.

Technical Specifications

• Belt Length: 18.93 inches
• Belt Width: 2.5 inches
• Grit: 80
• Abrasive Type: Ceramic Aluminum Oxide Blend
• Backing Material: X-Weight Cotton Cloth
• Coating Type: Coated
• Weight: 0.1 pounds
• Unit of Measure: Each
• UPC: 00051119665734

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010360178
