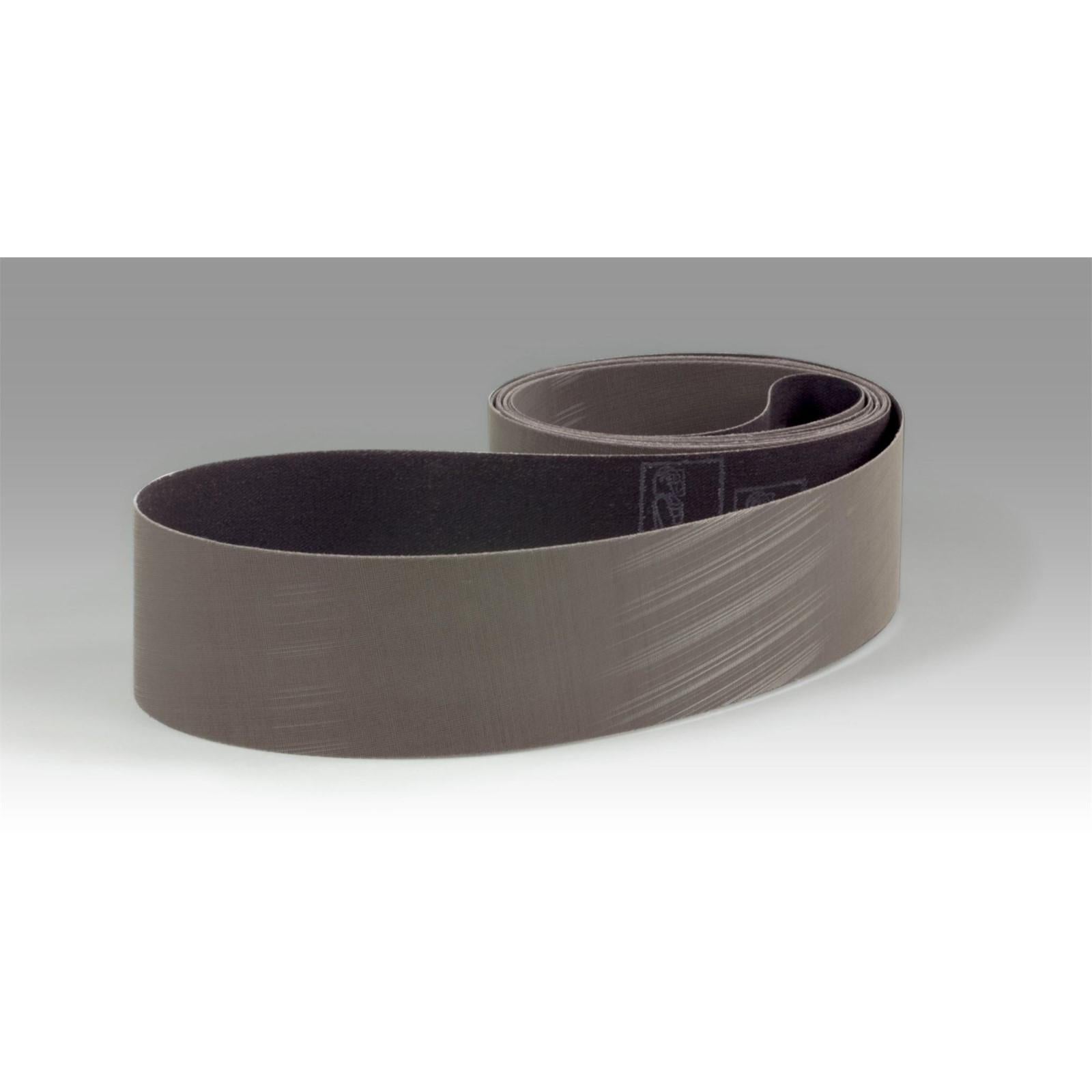

3M 7010360167 Trizact 237AA Abrasive Belt 73x5 Inch Ao

Product Description

The 3M 7010360167 is a Trizact 237AA abrasive belt engineered for intermediate finishing and fine polishing applications. It uses 3M microreplication technology, where micron-graded aluminum oxide mineral is formed into precise three-dimensional pyramids and coated onto an X-weight cloth backing. As the pyramids wear during use, fresh sharp mineral is continuously exposed. This self-renewing cutting action delivers a consistent material removal rate and a predictable, repeatable surface finish. The belt measures 73 inches in length and 5 inches in width and is used by metalworking professionals and finishing technicians in production and robotic grinding environments.

This belt is suited for intermediate finishing and fine polishing on metal components prior to plating, buffing, or coating operations. The flexible cloth backing conforms to contoured surfaces, making it effective on both flat stock and complex geometry. The three-dimensional abrasive structure produces more consistent finishes over the full life of the belt compared to conventional electrostatically coated abrasives, which is especially valuable in automated and robotic applications where repeatable output is required.

Key Features

• Microreplication technology forms aluminum oxide into uniform abrasive pyramids for self-sharpening performance
• Fresh mineral is continuously exposed as pyramids wear, maintaining consistent cut rate throughout belt life
• Runs cooler than conventional abrasives, reducing heat buildup on workpiece surfaces
• Flexible X-weight cloth backing conforms to contours for uniform finish on complex shapes
• Three-dimensional abrasive design delivers repeatable finishes in robotic and automated applications
• Produces finer surface finishes than conventional electrostatically coated abrasive belts

Compatibility

Designed for use on belt grinding and finishing machines that accept 73-inch by 5-inch abrasive belts. Suited for intermediate finishing and fine polishing of metal substrates prior to plating or buffing.

Installation Notes

Installation and tensioning should be performed by a qualified machine operator following the equipment manufacturer's guidelines. Power down and lock out the grinder or belt finishing machine before mounting or removing the belt. Verify belt tracking and tension before resuming operation. Inspect the belt for damage or glazing before each use and replace when consistent cut rate is no longer maintained.

Technical Specifications

• Abrasive Mineral: Aluminum Oxide
• Belt Length: 73 inches
• Belt Width: 5 inches
• Backing Material: X-Weight Cloth
• Color: Gray
• Weight: 0.48 pounds
• UPC: 00051119593167

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010360167
