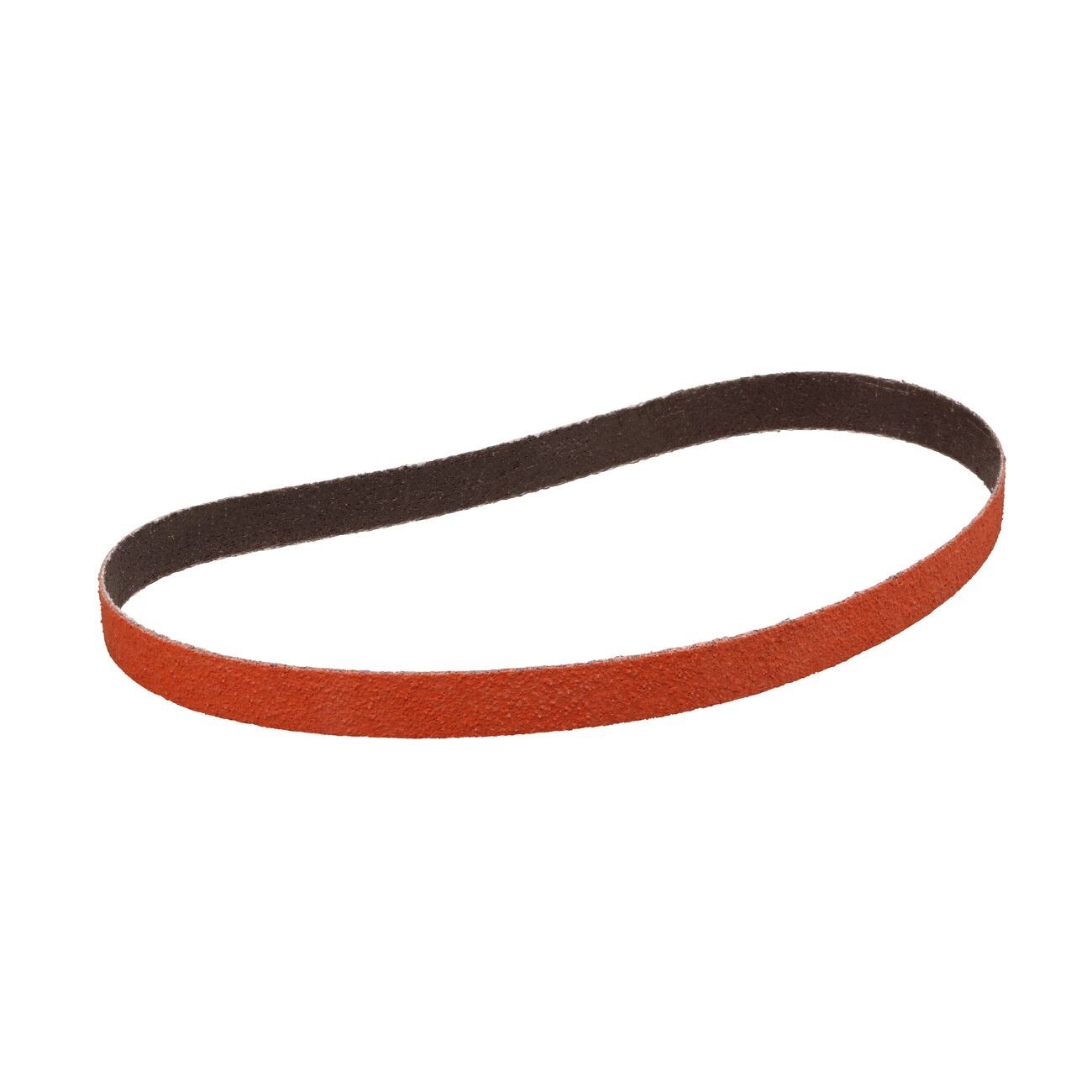

3M 7010360161 Coated Abrasive Belt 36 Grit 148x1 Inch

Product Description

The 3M 7010360161 is a coated abrasive belt designed for aggressive stock removal and metal finishing in industrial and trade applications. It combines 3M Ceramic Abrasive Grain with aluminum oxide to deliver faster cutting action and longer service life compared to conventional aluminum oxide belts. The heavyweight polyester cloth backing handles high-pressure grinding without breaking down, and the belt runs equally well dry or with lubricant. A built-in grinding aid reduces heat buildup during operation, making this belt effective on heat-sensitive metals including stainless steel. Measuring 148 inches in length and 1 inch in width, with a 36 grit rating, it is suited to heavy-duty material removal tasks on stationary belt grinders.

This belt is intended for metalworking environments where consistent cut rate and extended belt life reduce downtime and changeover frequency. Typical applications include weld blending, surface conditioning, and stock removal on ferrous and non-ferrous metals. The 36 grit makes it appropriate for initial grinding passes rather than fine finishing. It is commonly used by fabricators, pipefitters, and maintenance machinists operating industrial belt grinding equipment. The orange backing identifies the 777F series within the 3M abrasives line.

Key Features

• Ceramic and aluminum oxide grain blend for faster cut rate and longer belt life than standard aluminum oxide
• Heavyweight polyester cloth backing supports high-pressure applications without delaminating
• Runs wet or dry, compatible with water-soluble and oil-based lubricants
• Built-in grinding aid reduces heat generation when working stainless steel and heat-sensitive alloys
• Durable resin bond resists heat deterioration to extend usable belt life
• 36 grit coarseness suited for aggressive stock removal and initial surface preparation

Compatibility

Designed as a replacement or production coated abrasive belt for stationary belt grinding machines accepting a 148-inch by 1-inch belt size.

Installation Notes

Installation should be performed by a qualified operator familiar with belt grinder maintenance. Power down and lock out the grinder before mounting or replacing the belt. Verify belt tracking and tension per the machine manufacturer's guidelines before resuming operation. Eye protection, gloves, and appropriate respiratory protection are recommended during belt changes and grinding operations.

Technical Specifications

• Belt Length: 148 inches
• Belt Width: 1 inch
• Grit: 36
• Abrasive Material: Ceramic Aluminum Oxide Blend
• Backing Type: Heavyweight Polyester Cloth
• Bond Type: Resin
• Color: Orange
• Unit of Measure: Each
• Weight: 0.51 pounds

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010360161
