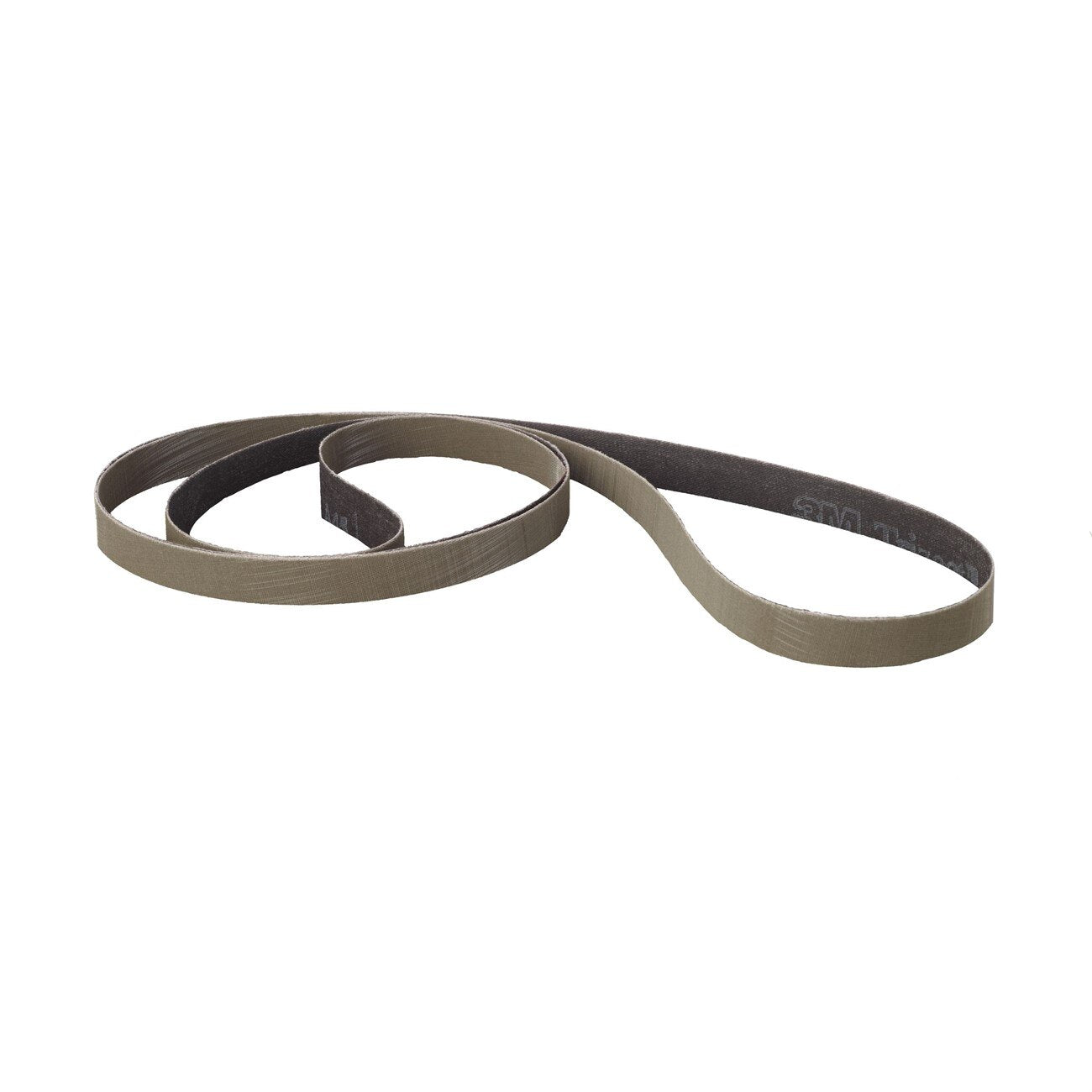

3M 7010360149 Abrasive Belt 64 Inch Aluminum Oxide Cloth

Product Description

The 3M 7010360149 is a Trizact 237AA coated abrasive belt designed for intermediate finishing and fine polishing applications in metal fabrication and surface preparation work. It uses 3M microreplication technology, where micron-graded aluminum oxide mineral is formed into uniform three-dimensional pyramids and bonded to an X-weight cloth backing. As the pyramids wear during use, fresh sharp mineral is continuously exposed, delivering a consistent cut rate and predictable surface finish throughout the life of the belt. This belt measures 64 inches in length and 1 inch in width and is suited for automated, robotic, and manual grinding equipment.

This belt is intended for use on metal components requiring a controlled, fine finish prior to plating, buffing, or coating operations. The flexible cloth backing allows the abrasive to conform to contoured surfaces, making it well-suited for finishing curved or irregular workpieces. It is commonly used in metal fabrication shops, aerospace component finishing, and industrial manufacturing environments where repeatable finish quality is required. Licensed tradespeople and industrial finishing technicians are the primary users.

Key Features

• Microreplication technology forms aluminum oxide mineral into uniform abrasive pyramids for consistent cut and finish
• Self-sharpening pyramid structure exposes fresh mineral as the belt wears, extending usable life
• Runs cooler than conventional coated abrasives, reducing heat buildup on workpiece surfaces
• X-weight cloth backing provides flexibility for finishing contoured and irregular surfaces
• Three-dimensional abrasive design supports consistent finish results in robotic and automated applications
• Produces finer finishes than conventional electrostatically coated abrasive belts

Compatibility

Designed for use on belt grinders and finishing machines accepting a 64-inch by 1-inch abrasive belt. Suitable for ferrous and non-ferrous metal surfaces requiring intermediate finishing or fine polishing prior to plating or buffing.

Installation Notes

Belt installation should be performed by qualified finishing technicians familiar with the specific grinding or polishing equipment in use. Power down and lock out the machine before changing belts. Verify correct belt tracking and tension per the equipment manufacturer guidelines before resuming operation. Inspect the belt for tears or edge damage before each use.

Technical Specifications

• Abrasive Mineral: Aluminum Oxide (AO)
• Backing Material: X-Weight Cloth
• Belt Length: 64 inches
• Belt Width: 1 inch
• Color: Gray
• Weight: 0.09 pounds
• Unit of Measure: Each
• UPC: 00051119102635

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010360149
