3M 7010360128 Trizact 217EA Abrasive Belt 15.5x3.5 Inch

Product Description

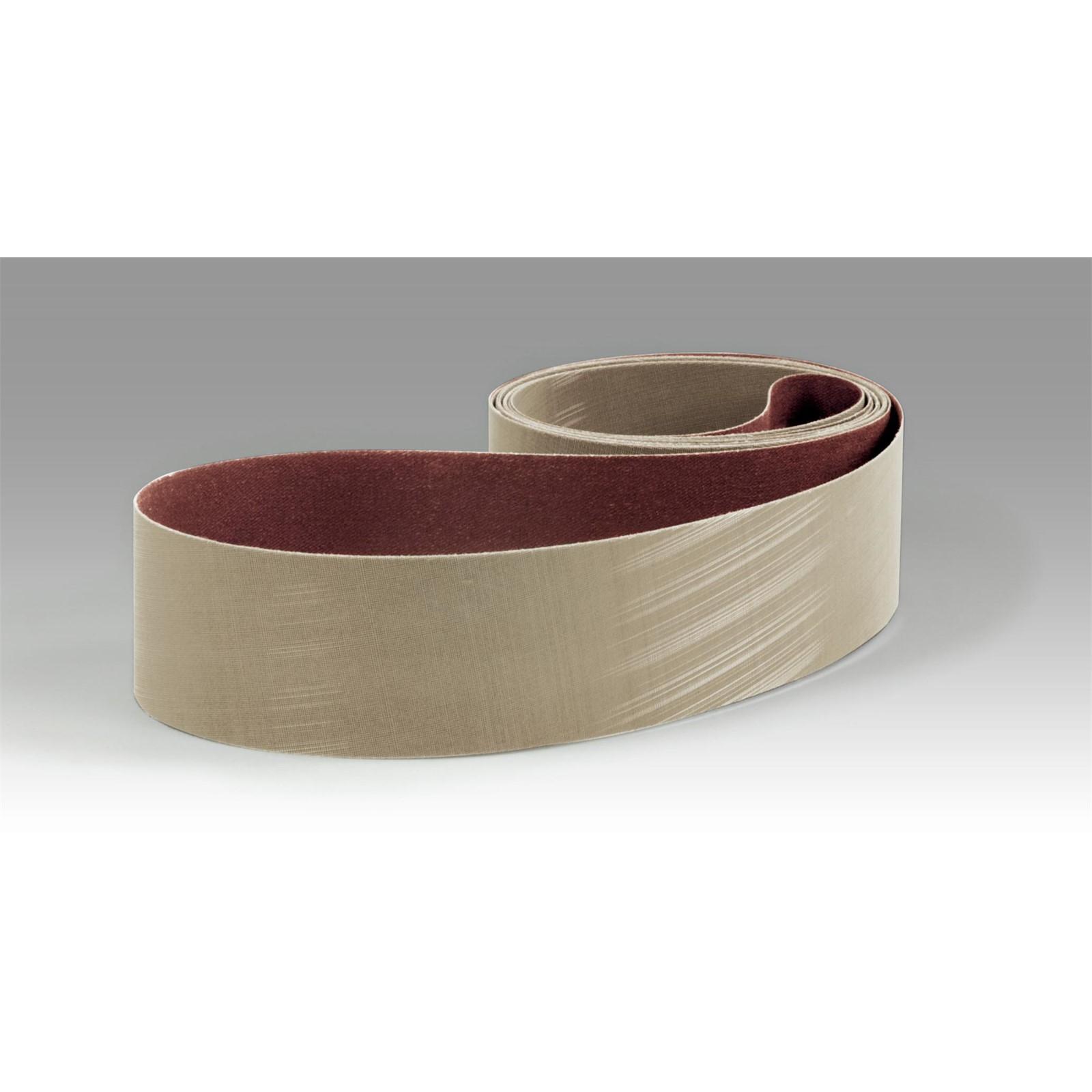

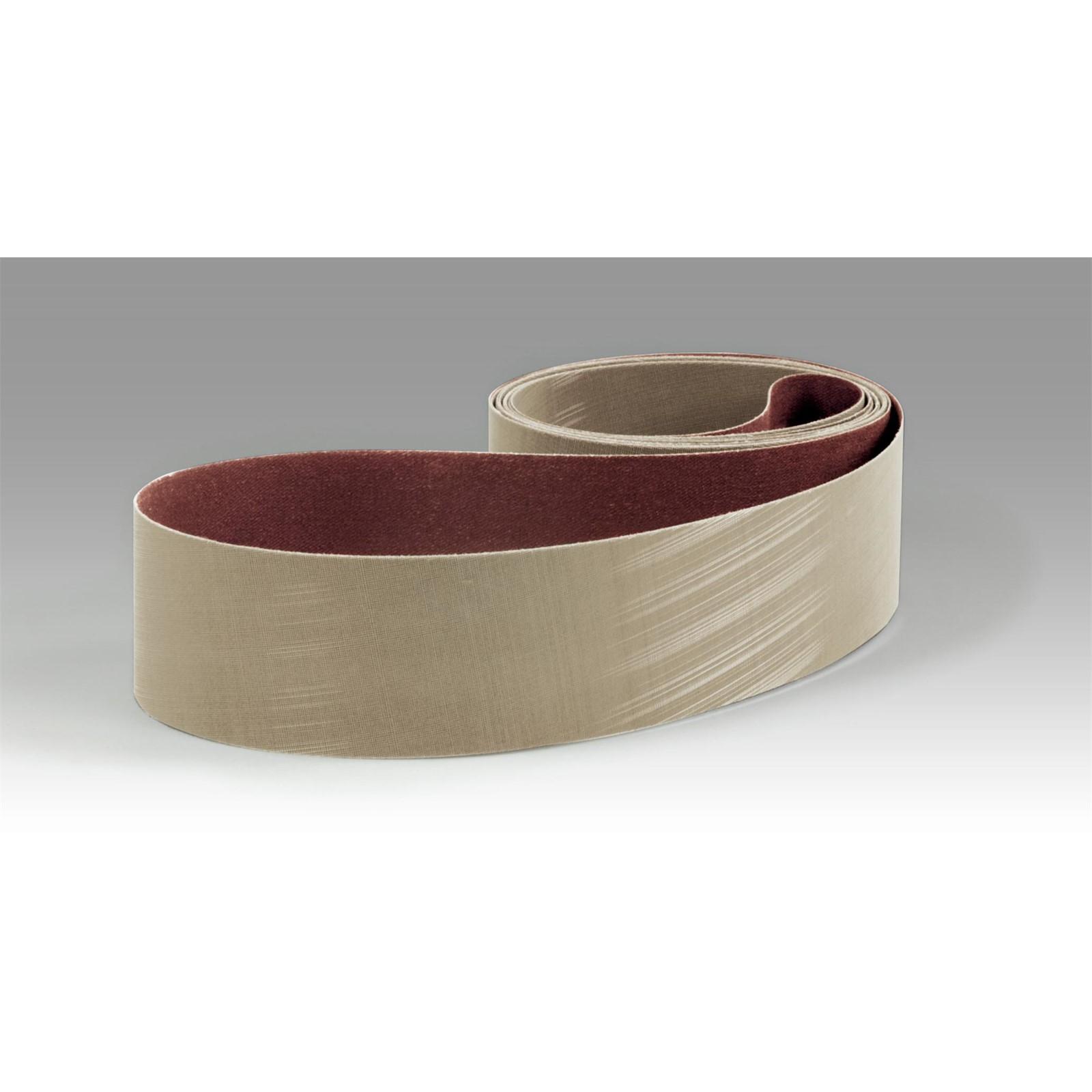

The 3M 7010360128 is a Trizact 217EA coated abrasive belt built around proprietary microreplication technology. Micron-graded aluminum oxide particles are formed into tiny pyramids and bonded to a JE-weight rayon backing. As the pyramids wear during use, fresh, sharp mineral is continuously exposed. The result is a consistent cut rate and a predictable, fine surface finish throughout the life of the belt. The belt measures 15.5 inches in length and 3.5 inches in width. It is well suited to intermediate finishing and fine polishing operations prior to plating or buffing cycles.

This belt is intended for light to moderate pressure finishing applications in metalworking environments. The flexible JE-weight backing conforms to contoured and irregular surfaces, making it effective on complex workpiece geometries. Its consistent performance characteristics make it a reliable choice for robotic and automated grinding and finishing lines where repeatability is critical. It is also used in manual finishing operations where a fine, uniform surface profile is required before downstream plating, buffing, or coating processes.

Key Features

• Microreplicated aluminum oxide pyramids continuously expose fresh abrasive mineral as they wear, maintaining consistent cut throughout belt life
• Flexible JE-weight rayon backing conforms to contoured surfaces for uniform contact and finish
• Consistent performance and extended abrasive life support use in robotic and automated finishing applications
• Grinding aid integrated into the abrasive structure helps reduce heat buildup, limiting risk of workpiece warping or discoloration
• Produces finer surface finishes than conventional coated abrasive belts of comparable grit
• Suited for intermediate finishing and fine polishing prior to plating or buffing

Compatibility

Designed for use on belt finishing machines accepting belts measuring 15.5 inches in length and 3.5 inches in width. Verify machine belt-path compatibility and contact-wheel or platen configuration before installation.

Installation Notes

Belt installation should be performed by qualified personnel following the machine manufacturer's guidelines. Power down and lock out the finishing machine before changing the belt. Confirm belt tracking and tension according to machine specifications before resuming operation. Inspect the belt and all guards before powering the machine back on.

Technical Specifications

• Abrasive Mineral: Aluminum Oxide
• Abrasive Type: Trizact 217EA Microreplicated
• Belt Length: 15.5 inches
• Belt Width: 3.5 inches
• Backing Material: JE-Weight Rayon Cloth
• Color: Tan
• Weight: 0.07 pounds
• Unit of Measure: Each

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010360128
