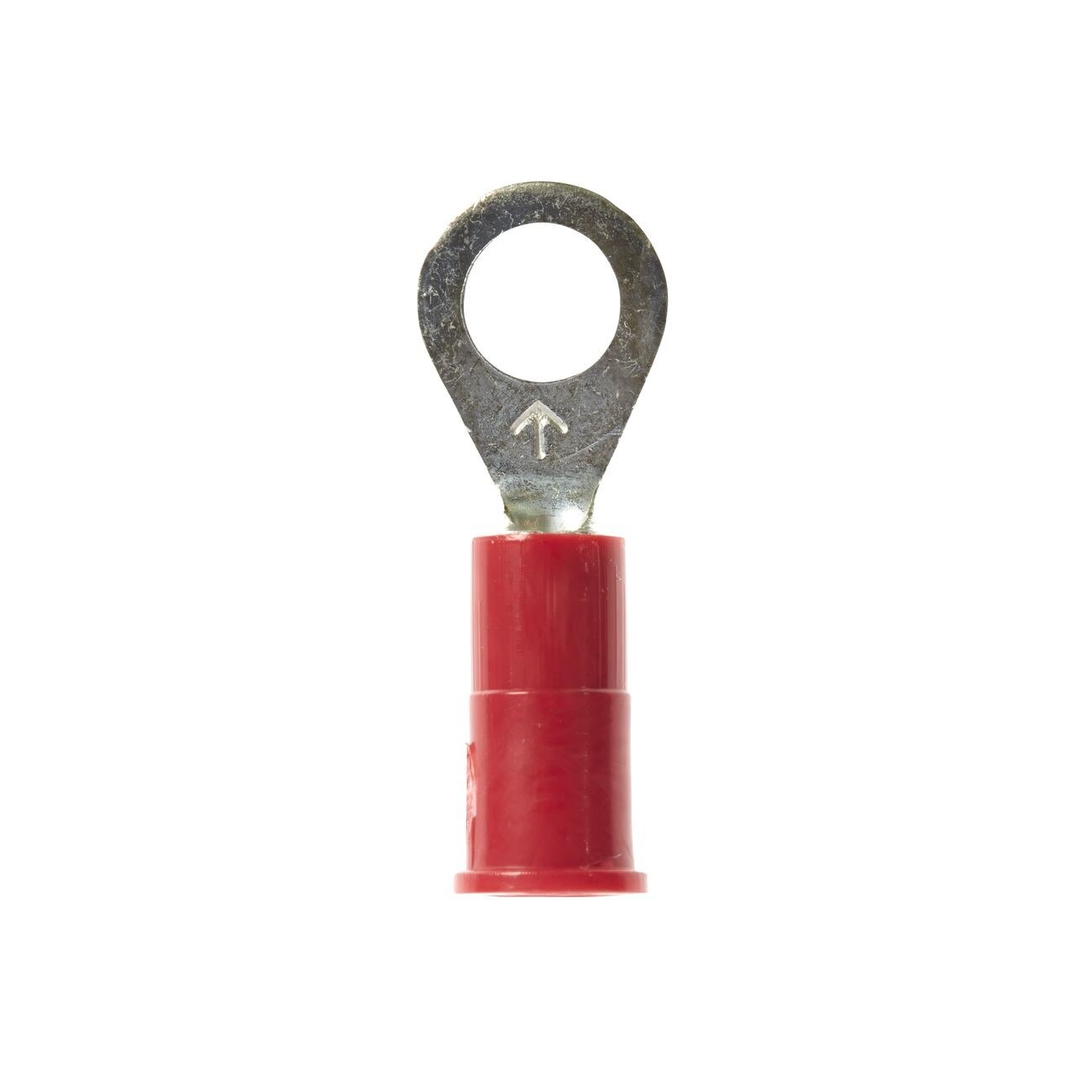

3M 7010351289 Vinyl Insulated Ring Terminal 18-10 Awg

Product Description

The 3M 7010351289 is a vinyl insulated ring terminal designed for secure, reliable electrical connections in wire termination applications. Sold in a bottle of 100 pieces, this crimp-style terminal accepts 18 to 10 AWG wire and provides a low-resistance connection point suitable for ring-lug fastening to studs, screws, and bus bars. The vinyl insulation sleeve protects the crimp barrel from moisture and abrasion. Electricians and instrumentation technicians use these terminals in panel wiring, control circuits, and field device hookups where a clean, insulated ring termination is required.

These ring terminals are suited for residential, commercial, and light industrial electrical work. Common applications include control panel assembly, junction box terminations, and equipment wiring where conductors must terminate at a screw or stud connection point. The 18 to 10 AWG wire range covers a broad span of control and power circuit conductors encountered in typical electrical and HVAC service work.

Key Features

• Vinyl insulated crimp barrel for protection against moisture and abrasion
• Accepts 18 to 10 AWG wire conductors
• Ring tongue design for fastening to studs and screws
• Sold in a bottle of 100 terminals for shop and field use
• Compact, lightweight form factor at 0.01 pounds per unit

Compatibility

Designed as an OEM-style crimp ring terminal compatible with standard 18 to 10 AWG copper wire conductors in typical electrical panel and control circuit termination applications.

Installation Notes

Installation is performed by licensed electricians or qualified technicians. De-energize and lock out the circuit before terminating conductors. Use a calibrated ratcheting crimp tool rated for insulated terminals to ensure a proper mechanical and electrical crimp; do not use pliers as a substitute. Follow applicable NEC requirements for terminal sizing, conductor preparation, and overcurrent protection.

Technical Specifications

• Wire Range: 18 to 10 AWG
• Insulation Type: Vinyl
• Terminal Type: Ring
• Quantity per Bottle: 100
• Weight: 0.01 pounds
• UPC: 10051128588533

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010351289
