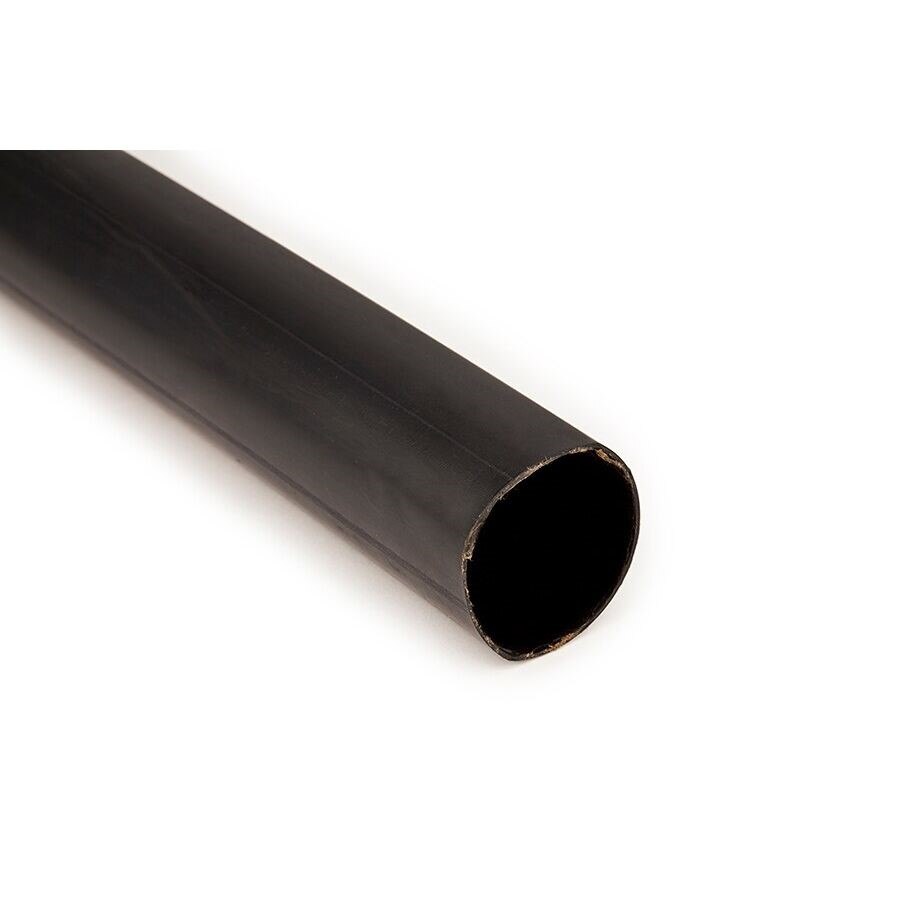

3M 7010350262 Heat Shrink Tubing 6 in Black 10 Pack

Product Description

The 3M 7010350262 is a multiple-wall, semi-rigid heat shrink tubing designed for demanding electrical insulation and wire termination applications. Built from co-extruded, selectively cross-linked polyolefin, it features a 2.5:1 shrink ratio and an integral meltable inner wall that flows into voids and irregularities upon activation, creating a sealed, moisture-resistant bond. Each piece measures 6 inches in length. This tubing is installed by licensed electricians and electronics technicians who require a reliable, dual-wall sleeve for protecting splices, terminals, and connector entry points.

This tubing is suited for electrical and electronic applications where both environmental sealing and mechanical protection are required. The meltable inner wall makes it well-suited for cable harnessing, wire splicing, and connector backshell protection in industrial, commercial, and panel wiring environments. Each pack contains 10 pieces at 6 inches each, providing enough material for multiple terminations per job. Cases contain 10 packs for high-volume shop or field use.

Key Features

• 2.5:1 shrink ratio accommodates a range of wire and connector diameters
• Co-extruded semi-rigid polyolefin construction for mechanical stability after recovery
• Integral meltable inner wall flows into voids to create an environmental seal
• 6-inch cut pieces allow precise placement on splices, terminals, and connectors
• Black color for standard electrical identification and UV concealment
• Packaged in 10-piece packs for consistent jobsite inventory management

Compatibility

Designed as an OEM-style replacement or standard-stock heat shrink sleeve for use in residential, commercial, and industrial electrical wiring and termination applications where dual-wall polyolefin tubing is specified.

Installation Notes

Installation is performed by licensed electricians or qualified technicians. De-energize and lock out the circuit before applying any heat shrink sleeving to live conductors or terminals. Use a calibrated heat gun set to the appropriate recovery temperature and move it evenly along the length of the tubing to achieve uniform shrink and full inner-wall adhesion. Avoid open flame, as uneven heat can cause incomplete recovery or damage to the substrate wire insulation.

Technical Specifications

• Shrink Ratio: 2.5:1
• Wall Type: Multiple-wall, semi-rigid with meltable inner wall
• Material: Cross-linked polyolefin
• Piece Length: 6 inches
• Color: Black
• Pack Quantity: 10 pieces per pack
• Case Quantity: 10 packs per case
• Weight: 0.25 pounds
• UPC: 00051128600955

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010350262
