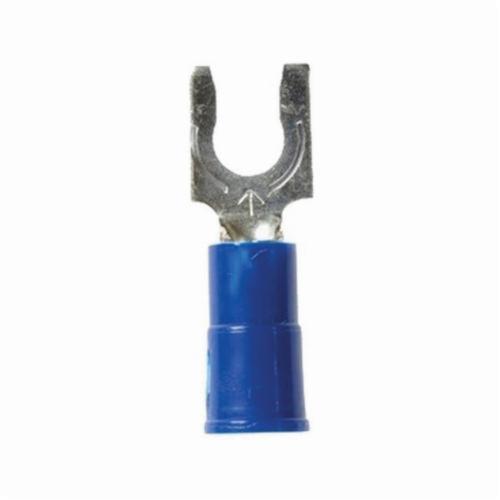

3M 7010350241 Vinyl Insulated Locking Fork Terminal LFV14-6Q, AWG 16-14, 25/bag

Product Description

The 3M Vinyl Insulated Locking Fork Terminal, MPN 7010350241, is designed for secure connections in electrical applications. This terminal has a spring-like tongue that locks tightly around the stud, ensuring a strong connection.

• Each bag contains twenty-five units.
• Compatible with conductor sizes from sixteen to fourteen AWG.
• Withstands extreme temperature ranges from negative forty to two hundred twenty-one degrees Fahrenheit.

Product Highlights

Constructed from electrolytic copper for high conductivity, this terminal also features a corrosion-resistant tin-plated finish. The vinyl insulation offers added protection and durability for secure usage.

Product Information

Standard Information

• Brand: 3M
• UPC: 051128600184

Technical Specifications

• Conductor Sizes: 16 - 14 AWG
• Barrel Length: 0.25 inches
• Thickness: 0.03 inches
• Packaging: 25 per bag
• Stud Size: #6
• Voltage Rating: 600/1000 VAC
• Material: Vinyl
• Temperature Rating: -40 to 221 degrees F
