3M 7010350205 Heat Shrink Tubing 1/8 Inch 48 in Yellow

Product Description

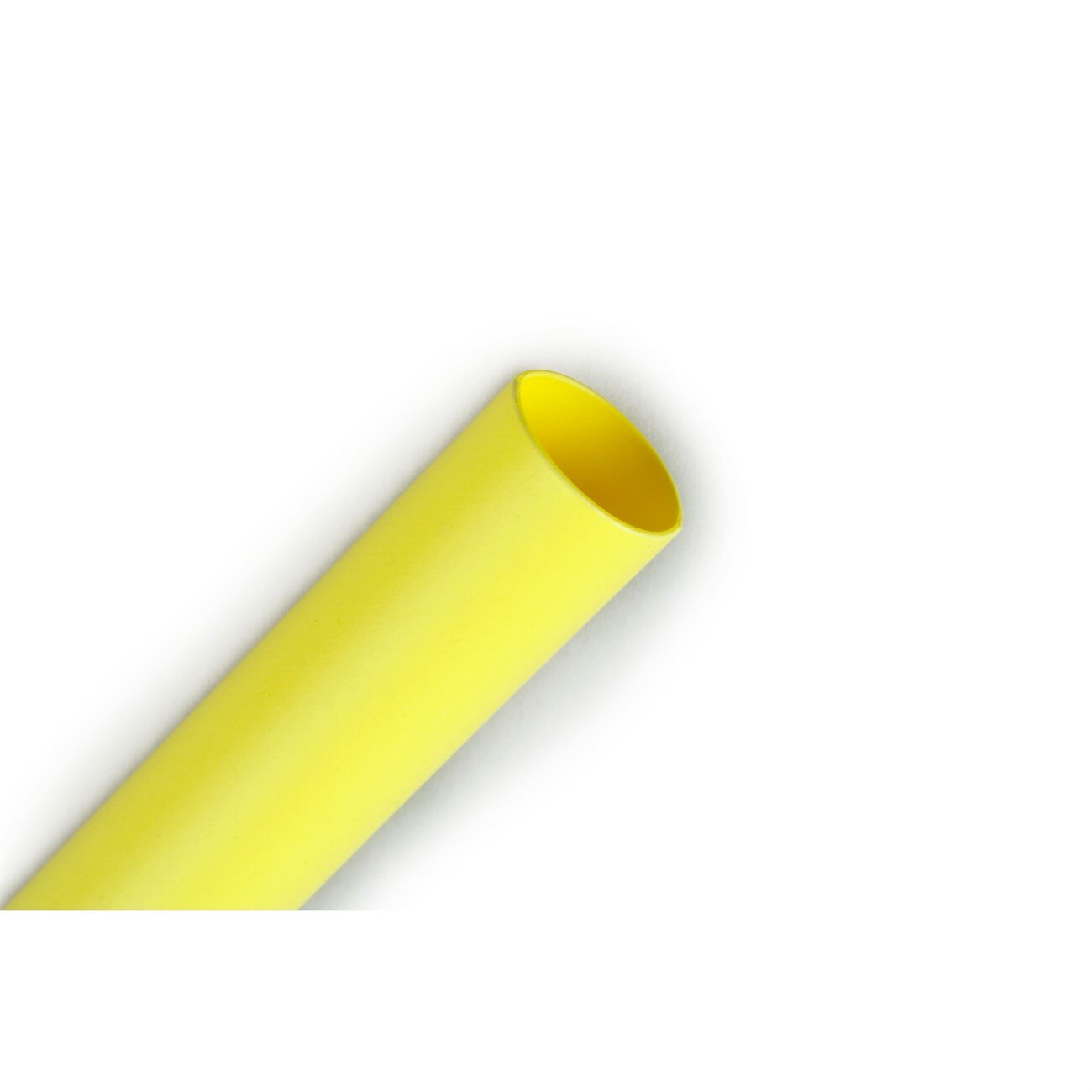

The 3M 7010350205 is a thin-wall heat shrink tubing in the FP-301 series, sized at 1/8 inch diameter and cut to a 48-inch length in yellow. FP-301 is a polyolefin-based tubing engineered to deliver a reliable balance of electrical insulation, physical protection, and chemical resistance. It shrinks radially when heat is applied, conforming tightly over wire splices, terminals, connectors, and component leads. Electricians, panel builders, and harness assemblers rely on this tubing in both industrial wiring and military-specification applications where consistent performance and color-coded identification are required.

This tubing is suited for wire bundling, insulation, strain relief, and identification tasks across a broad range of industrial and mil-spec wiring assemblies. The yellow color supports color-coded circuit identification in control panels, equipment wiring, and field-service harness repairs. It performs across a wide service temperature range and resists common shop chemicals, oils, and moisture.

Key Features

• Thin-wall FP-301 polyolefin construction provides electrical insulation and physical abrasion resistance
• 1/8 inch recovered diameter suits small-gauge wire and component leads
• 48-inch length allows field cutting to required segments
• Yellow color coding supports circuit and conductor identification
• Suitable for industrial and military wiring applications
• Resists moisture, oils, and common industrial chemicals

Compatibility

Designed as an OEM-style heat shrink solution for wire harness, terminal insulation, and conductor bundling applications across industrial and military-grade electrical assemblies.

Installation Notes

Installation is performed by licensed electricians or trained wiring technicians following applicable NEC guidelines. De-energize all circuits before applying heat shrink tubing over live conductors or splices. Use a heat gun at the appropriate temperature setting for polyolefin tubing, working from the center outward to prevent trapped air bubbles. Avoid open-flame heat sources, which can scorch or unevenly shrink thin-wall tubing.

Technical Specifications

• Series: FP-301
• Wall Type: Thin-Wall
• Diameter (Supplied): 1/8 inch
• Length: 48 inches
• Color: Yellow
• Weight: 0.02 pounds
• Unit of Measure: Each

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010350205
