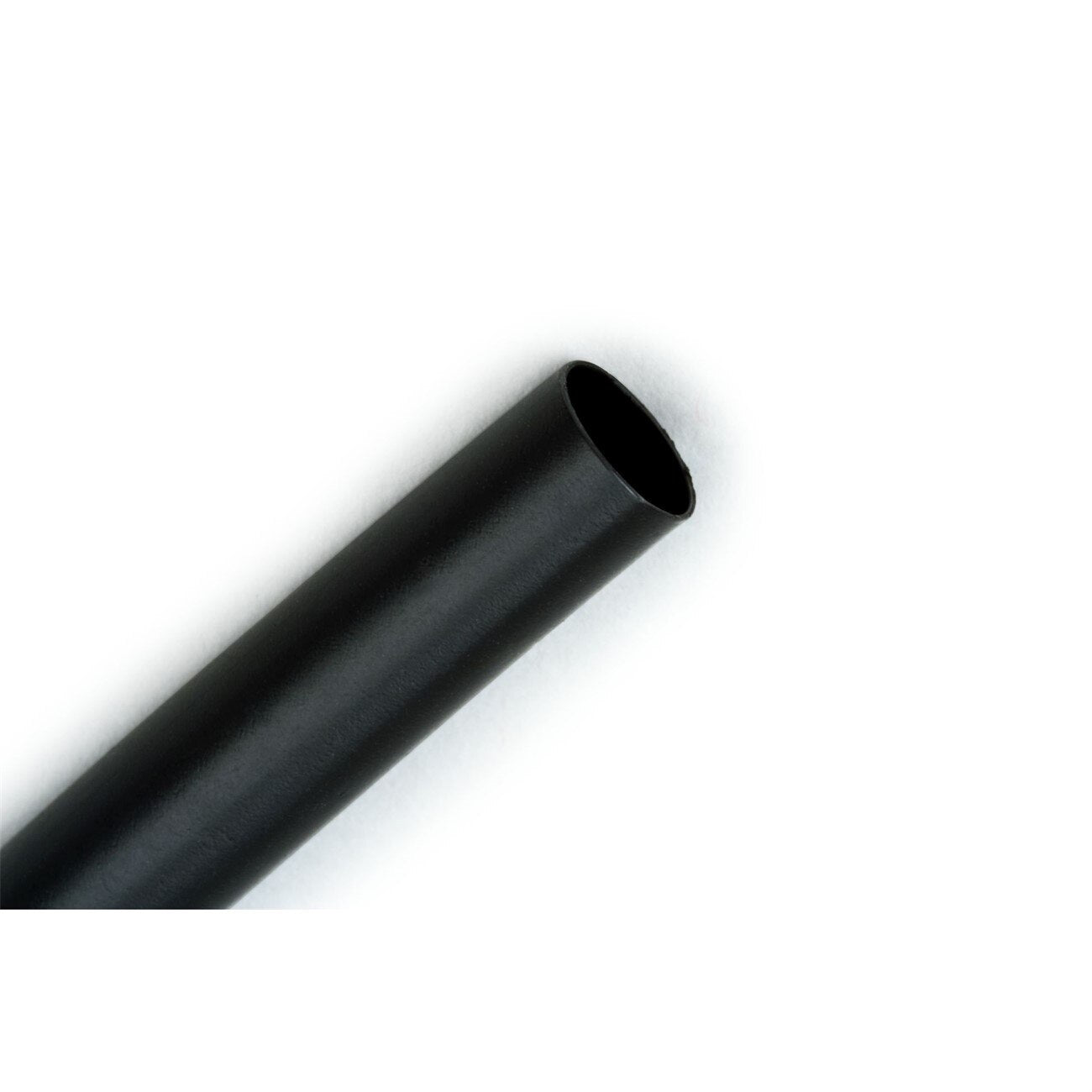

3M 7010350189 Heat Shrink Tubing 0.75 in Semi-rigid

Product Description

The 3M 7010350189 is a multiple-wall, semi-rigid heat shrink tubing designed for electrical insulation, strain relief, and environmental sealing of wire terminations and splices. Built from co-extruded, selectively cross-linked polyolefin, it features a 2.5:1 shrink ratio and an integral meltable inner wall that flows on heat application to form a moisture-resistant seal around the substrate. Each piece ships as a 48-inch stick and weighs 0.2 pounds. Licensed electricians and electrical contractors install this tubing on cable bundles, connector backshells, and terminal splices where a rigid, sealed sleeve is required.

This tubing is suited for residential and commercial electrical work as well as industrial wiring applications where a durable, semi-rigid protective sleeve is needed over conductors, terminals, or connectors. The meltable inner wall is particularly valuable in outdoor, wet, or vibration-prone installations where moisture ingress at wire terminations is a concern. Each 48-inch stick can be cut to length on the bench before installation, making it practical for a wide range of termination sizes.

Key Features

• 2.5:1 shrink ratio accommodates a range of conductor and connector diameters
• Co-extruded multiple-wall construction with integral meltable inner wall for sealed terminations
• Semi-rigid polyolefin outer wall provides mechanical protection after recovery
• 0.75-inch supplied diameter available in 48-inch sticks for bench cutting to length
• Black color for UV resistance and standard electrical identification
• Selectively cross-linked construction maintains dimensional stability during heat application

Compatibility

Designed as a standard-format multiple-wall heat shrink sleeve for electrical wire terminations, splices, and connector backshells where a semi-rigid, sealed installation is required.

Installation Notes

Installation is performed by licensed electricians following applicable NEC guidelines. De-energize all circuits completely before applying heat shrink tubing to any conductor or termination. Use a calibrated heat gun set to the appropriate recovery temperature and apply heat evenly along the length of the tubing to ensure full shrinkage and uniform inner-wall melt flow. Do not use an open flame, as uneven heat will cause incomplete recovery or damage to the tubing.

Technical Specifications

• Shrink Ratio: 2.5:1
• Wall Type: Multiple-wall, semi-rigid with meltable inner wall
• Material: Cross-linked polyolefin
• Supplied Diameter: 0.75 inches
• Length per Piece: 48 inches
• Color: Black
• Weight: 0.2 pounds
• Unit of Measure: Each
• Minimum Order Quantity: 45

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010350189
