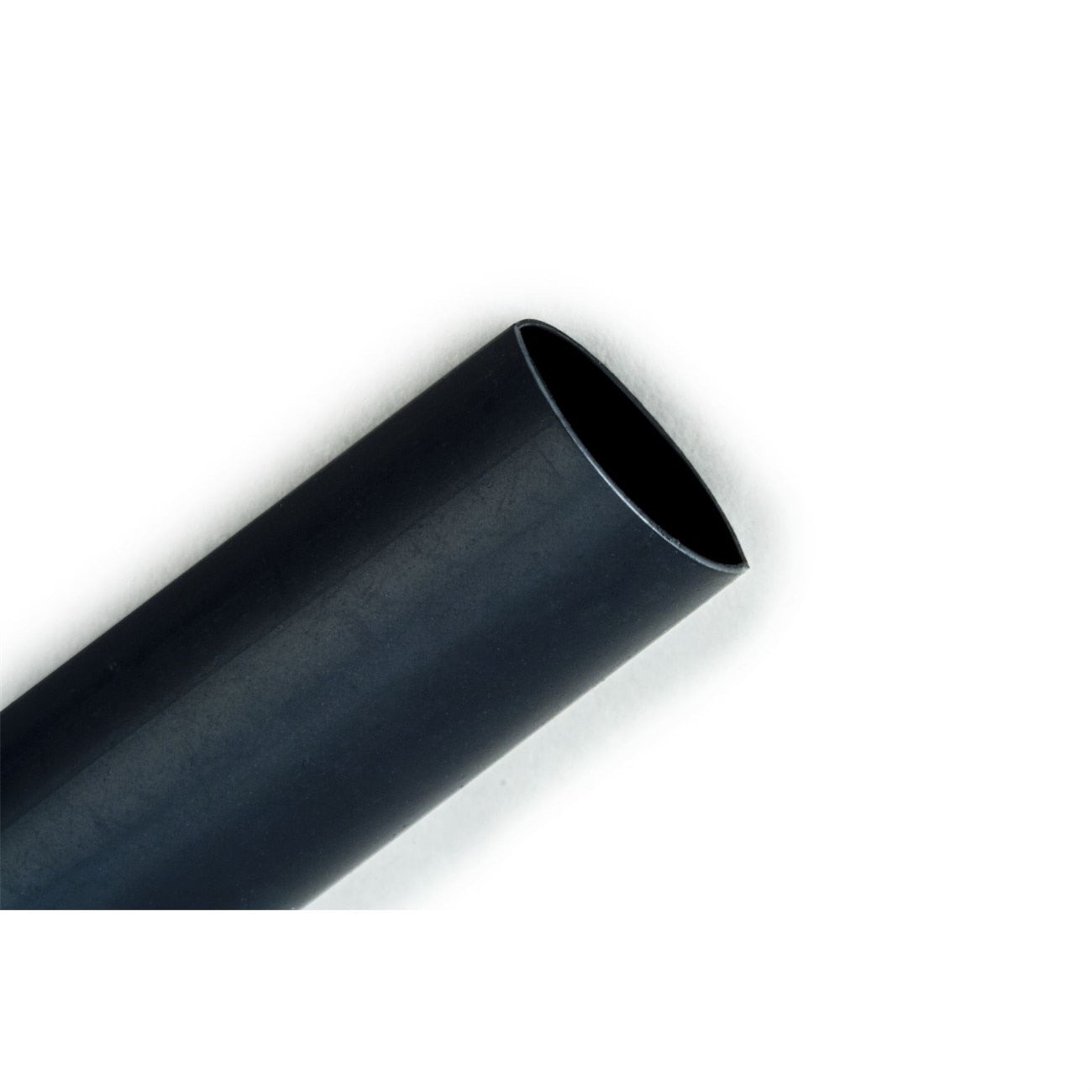

3M 7010349767 FP-301VW Heat Shrink Tubing 2 in Black 100 Ft

Product Description

The 3M 7010349767 is a flame-resistant, thin-wall heat shrink tubing sold on a 100-foot spool in a 2-inch diameter black finish. Designated FP-301VW, this tubing carries the same balanced electrical, physical, and chemical performance as standard FP-301 tubing while adding superior flame resistance for demanding electrical installations. It is rated for continuous operation from -55 degrees C (-67 degrees F) to 135 degrees C (275 degrees F) and can withstand elevated temperatures up to 300 degrees C (572 degrees F) for brief exposure periods. The minimum shrink temperature is 100 degrees C (212 degrees F). Electricians and wire harness technicians install this tubing where flame resistance is a code or specification requirement.

FP-301VW thin-wall tubing is suited for wire bundling, insulation, and strain relief in residential, commercial, and industrial electrical applications. It performs well in panel wiring, junction box terminations, and cable assembly work where both thermal protection and flame resistance are required. The spool format makes it practical for shop or van stock used across multiple jobs.

Key Features

• Flame-resistant construction engineered beyond standard FP-301 tubing performance
• Continuous operating range from -55 degrees C to 135 degrees C (-67 degrees F to 275 degrees F)
• Withstands brief elevated exposure up to 300 degrees C (572 degrees F)
• Minimum shrink temperature of 100 degrees C (212 degrees F)
• Thin-wall profile for tight routing and close-tolerance applications
• 100-foot spool format supports high-volume shop or field use

Compatibility

Designed as a flame-resistant OEM-style heat shrink solution for electrical wire insulation, bundling, and termination applications requiring thin-wall tubing in 2-inch diameter.

Installation Notes

Installation is typically performed by licensed electricians or trained wire harness technicians. De-energize all circuits before applying heat shrink tubing to any conductor or termination. Use a calibrated heat gun to apply uniform heat at or above the 100 degrees C minimum shrink temperature, avoiding open-flame tools that can cause uneven shrink or damage. Follow applicable NEC guidelines for insulation ratings and flame-resistance requirements at the installation site.

Technical Specifications

• Product Series: FP-301VW
• Wall Type: Thin-wall
• Color: Black
• Length: 100 feet
• Diameter: 2 inches
• Continuous Operating Temperature: -55 degrees C to 135 degrees C (-67 degrees F to 275 degrees F)
• Short-Term Elevated Temperature Rating: 300 degrees C (572 degrees F)
• Minimum Shrink Temperature: 100 degrees C (212 degrees F)
• Weight: 0.1 pounds
• Unit of Measure: Foot
• Minimum Order Quantity: 200
• UPC: 10054007388644

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010349767
