3M 7010343741 Diamond Grade Conspicuity Tape 2in X 150ft

Product Description

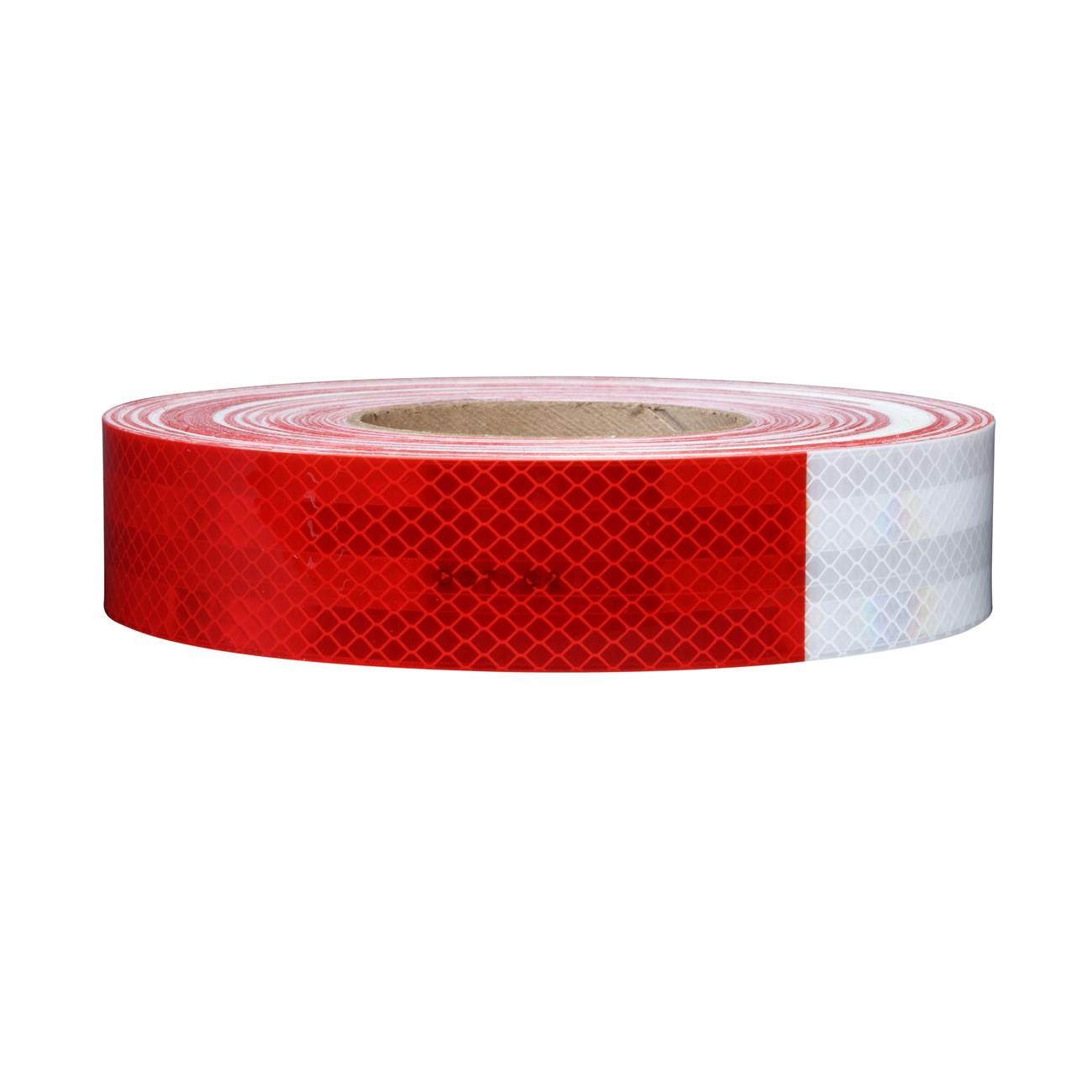

The 3M 7010343741 is a Diamond Grade conspicuity marking tape engineered for high-visibility safety striping on trucks, trailers, and other large commercial vehicles. This roll-format sheeting uses microprismatic reflective technology to return significantly more light to the driver than standard engineer-grade or high-intensity tapes. It ships with a pressure-sensitive adhesive backing, a protective liner, and a premask layer, allowing for clean, accurate application without additional adhesive or tools. The tape is configured in alternating 6-inch red and 6-inch white segments and measures 2 inches wide by 150 feet long per roll, weighing 4 pounds.

This tape is designed for exterior conspicuity marking applications on Class 7 and Class 8 trucks, semi-trailers, flatbeds, tankers, and other large commercial vehicles where retroreflective marking is required. The pre-cut alternating red and white stripe pattern aligns with Federal Motor Carrier Safety Administration conspicuity requirements, making it a common choice for fleet operators, trailer manufacturers, body shops, and DOT compliance work. It is typically installed by fleet maintenance technicians or professional sign and graphics installers.

Key Features

• Microprismatic retroreflective sheeting for high nighttime and low-light visibility
• Alternating 6-inch red and 6-inch white segment pattern for FMCSA conspicuity compliance applications
• Pressure-sensitive adhesive with liner and premask for clean, repositionable application
• Pre-cut strip format reduces installation time and material waste
• 2-inch width by 150-foot roll length covers standard trailer perimeter runs

Compatibility

Designed for application to the exterior surfaces of trucks, trailers, and large commercial vehicles requiring retroreflective conspicuity marking. Suitable for flat or slightly curved metal and composite panel surfaces typical of semi-trailers and truck bodies.

Installation Notes

Surface preparation is critical for adhesion — clean the substrate thoroughly to remove oil, wax, dust, and moisture before applying the tape. Power down any vehicle systems as needed and work in ambient temperatures appropriate for pressure-sensitive adhesive bonding. Use a squeegee or roller to eliminate air pockets and ensure full adhesive contact. Remove the premask layer only after the tape is fully seated to protect the reflective surface during installation.

Technical Specifications

• Width: 2 inches
• Length: 150 feet
• Color Pattern: Alternating 6-inch Red and 6-inch White segments
• Weight: 4 pounds
• Unit of Measure: Roll
• Minimum Order Quantity: 1
• UPC: 00051135308646

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010343741
