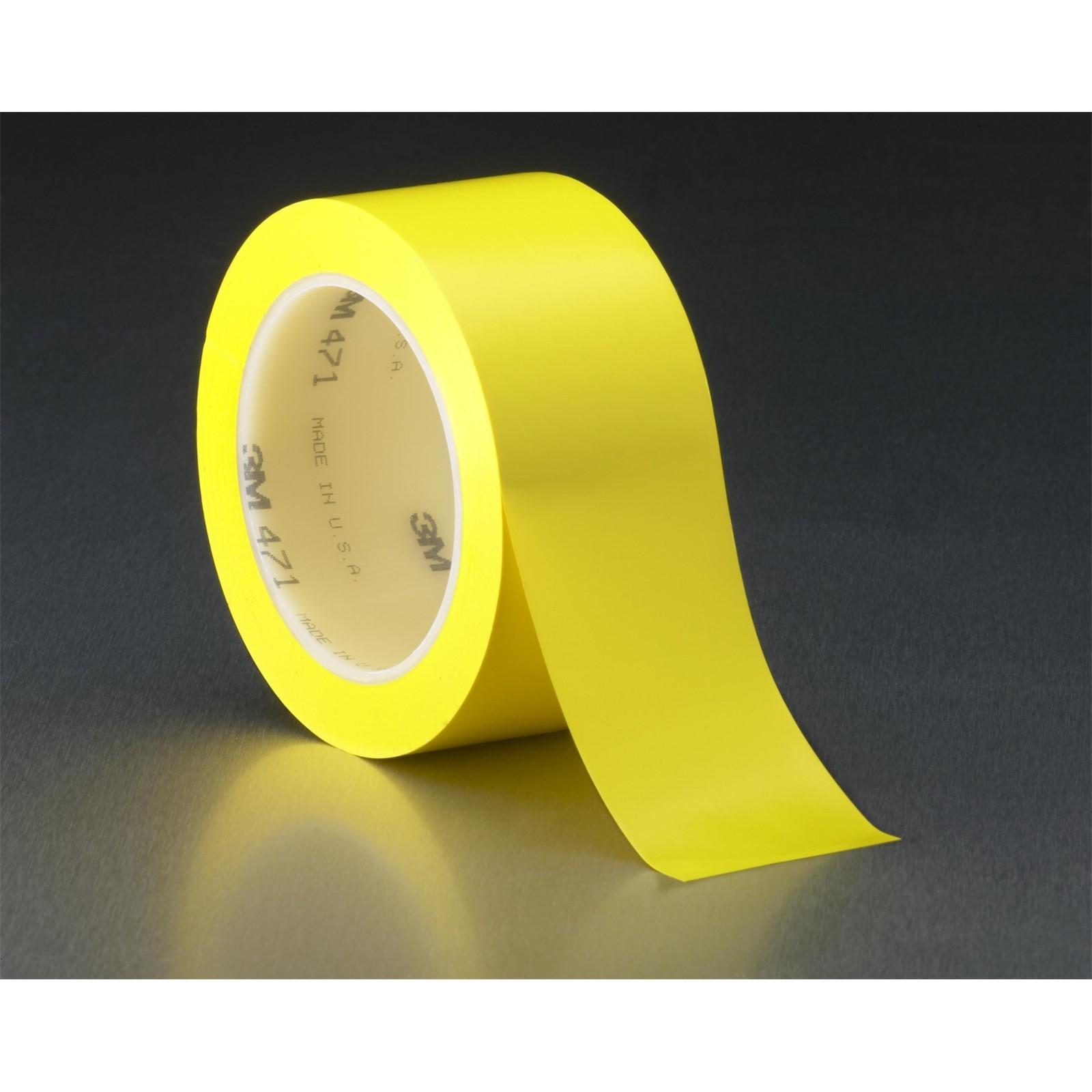

3M 7010343512 Vinyl Tape 471 Yellow 1 Inch X 36 Yd 5.2 Mil

Product Description

The 3M 7010343512 is a yellow vinyl tape in the 471 VFG series, measuring 1 inch wide by 36 yards long at 5.2 mil thickness. It features a conformable vinyl backing bonded to a rubber adhesive system that holds color under heavy abrasion and resists common solvents. Dead-stretch properties allow the tape to lay flat without springing back, which produces straighter, cleaner lines when applied to floors, machinery, or work surfaces. The tape removes cleanly without leaving significant adhesive residue, making it practical for temporary marking or masking applications. Installers, facilities technicians, and safety personnel are the primary users of this product type.

This tape is suited for lane marking, safety demarcation, color coding, and abrasion protection in industrial and commercial environments. Its conformable nature makes it effective on curved, irregular, or contoured surfaces where rigid tapes would lift or wrinkle. Common applications include floor marking programs in warehouses and manufacturing facilities, splicing, wrapping, sealing, and decorative banding. The heat-treated finish enhances durability in environments with elevated temperatures or frequent foot and equipment traffic.

Key Features

• 5.2 mil vinyl backing provides durable abrasion resistance
• Rubber adhesive system delivers strong initial tack and clean removal
• Dead-stretch properties produce straighter lines with less effort
• Maintains color under heavy abrasion and solvent exposure
• Conformable construction adheres to curved and irregular surfaces
• Heat-treated finish for added durability in demanding environments

Compatibility

Designed as a general-purpose vinyl marking and masking tape suitable for use on smooth to moderately textured floors, metal surfaces, and equipment in industrial and commercial facilities.

Installation Notes

Clean and dry the target surface before application to maximize adhesion and edge definition. Apply firm pressure along the full length of the tape using a roller or squeegee to eliminate air pockets and ensure full contact. For floor marking, ensure the surface is free of oils, waxes, or loose material that would cause premature lifting. Remove the tape at a low angle to reduce the risk of surface damage or adhesive transfer.

Technical Specifications

• Thickness: 5.2 mil
• Width: 1 inch
• Length: 36 yards per roll
• Backing Material: Vinyl
• Adhesive Type: Rubber
• Color: Yellow
• Weight: 0.41 pounds
• Unit of Measure: Roll
• UPC: 00051115318467

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010343512
