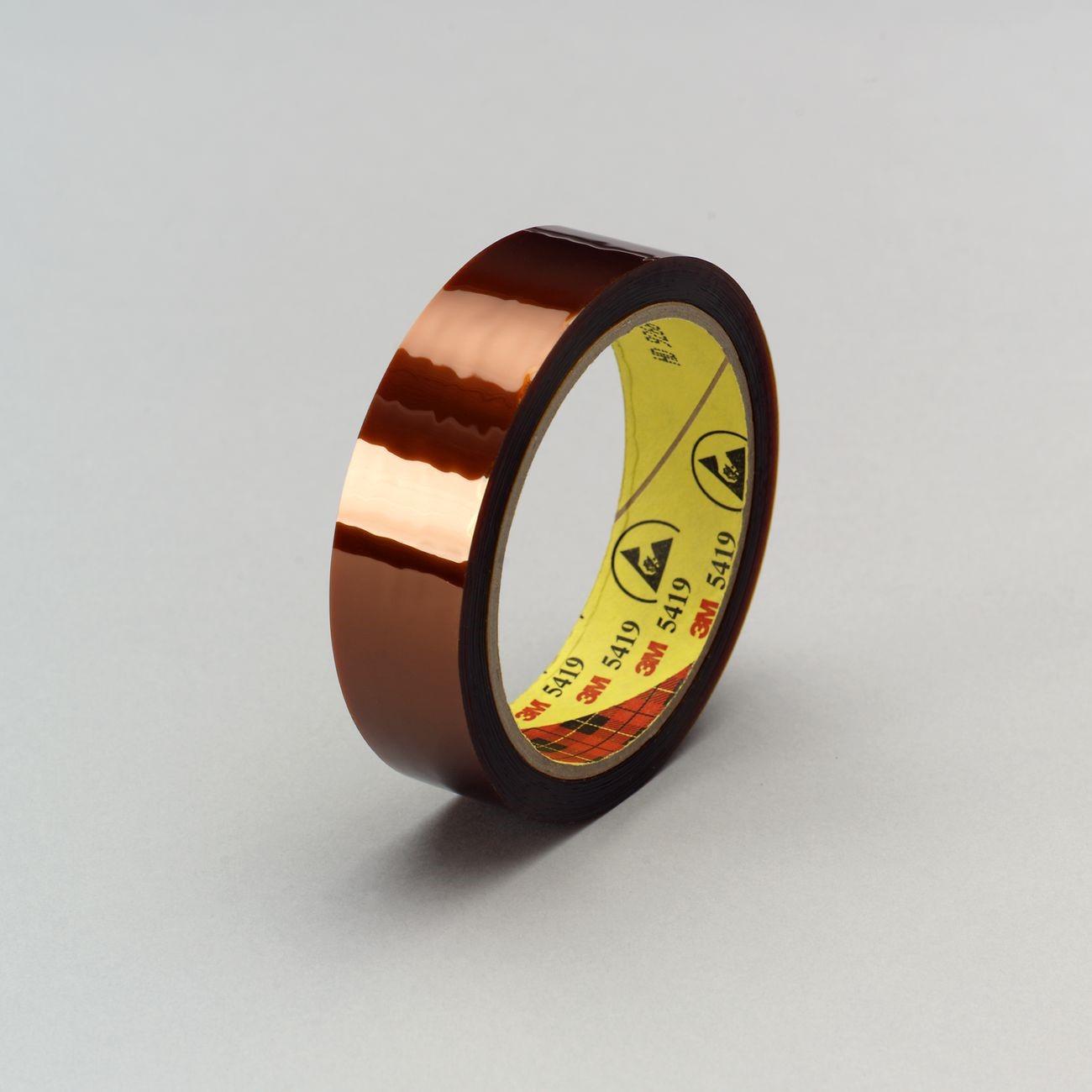

3M 7010338358 Polyimide Film Tape 5419 Gold 0.75in X 36yd

Product Description

The 3M 7010338358 is a low static polyimide film tape sold under the 3M 5419 product line in a gold translucent finish. The tape combines a polyimide film backing with a silicone adhesive system and measures 0.75 inches wide by 36 yards long at a 2.7 mil total thickness. Its defining characteristic is extremely low electrostatic discharge, making it suitable for use in environments where static buildup can damage sensitive components. Licensed electricians, electronics technicians, and PCB assembly professionals are the primary installers and users of this tape in production and repair settings.

This tape is designed for masking printed circuit boards during wave soldering and solder dip processes, where controlled static discharge and high-temperature resistance are required. It also functions as a release surface in the fabrication of parts that are cured at elevated temperatures. The silicone adhesive system is compatible with high-heat manufacturing workflows, and the polyimide film backing maintains dimensional stability under thermal stress. Applications span both light industrial electronics assembly and specialty fabrication operations.

Key Features

• Extremely low electrostatic discharge properties protect sensitive PCB components during soldering
• Polyimide film backing provides dimensional stability at elevated cure and soldering temperatures
• Silicone adhesive system is engineered for clean removal from circuit boards and fabricated parts
• 2.7 mil total tape thickness delivers a balance of conformability and mechanical strength
• 0.75 inch width is sized for precise masking on standard PCB pad and trace layouts
• 36-yard roll length supports production-volume usage with minimal roll changes

Compatibility

Designed for use as a masking tape during wave solder and solder dip processes on printed circuit boards, and as a release surface for parts fabricated at elevated temperatures in electronics assembly and industrial curing applications.

Installation Notes

Application is performed by electronics technicians and PCB assembly professionals working in static-sensitive environments. Ensure the bonding surface is clean, dry, and free of flux residue or contaminants before applying tape. Remove the tape after soldering or curing while the substrate is still warm to reduce adhesive residue risk. Follow applicable ESD handling protocols and facility safety procedures when working near sensitive electronic assemblies.

Technical Specifications

• Tape Thickness: 2.7 mil
• Width: 0.75 inches
• Length: 36 yards
• Backing Material: Polyimide film
• Adhesive Type: Silicone
• Color: Gold translucent
• Unit of Measure: Roll
• Weight: 0.19 pounds
• UPC: 00021200302275

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010338358
