Product Description

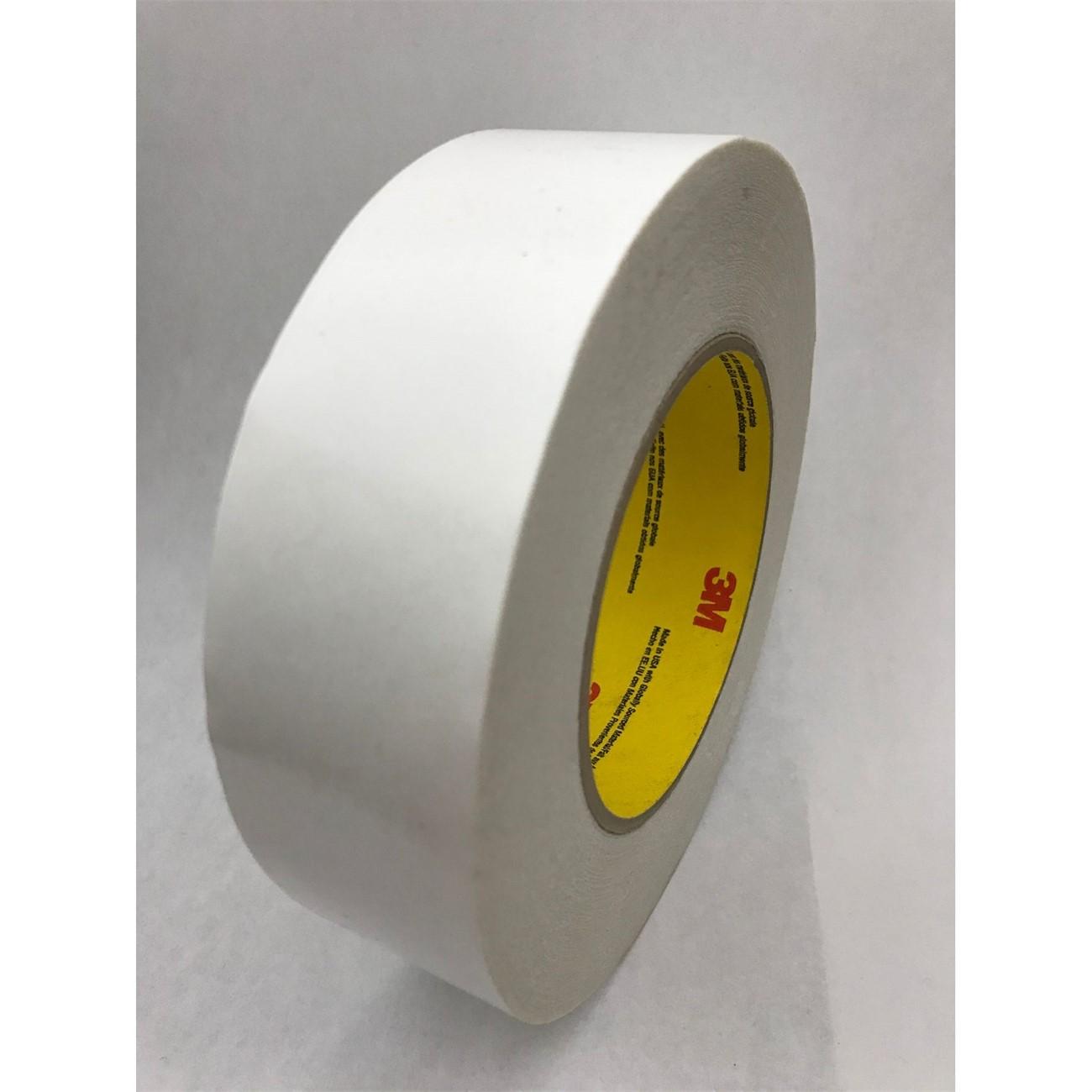

The 3M 7010338280 is a double coated polyester (PET) tape in the Venture Tape 514CW series, featuring an acrylic adhesive on both sides and a white finish. It measures 1.46 inches wide and is sold by the roll. The acrylic adhesive system delivers strong peel, tack, and shear strength across a broad temperature range, making this tape well suited for structural and industrial bonding tasks where UV exposure or thermal cycling would degrade lesser products. Licensed trades and industrial assembly professionals typically specify this tape for permanent bonding applications requiring a durable, high-performance carrier.

This tape is used where reliable adhesion to metals, high surface energy plastics, and composite materials is required. It performs in both high and low temperature environments, making it appropriate for demanding indoor and outdoor bonding applications in manufacturing, HVAC fabrication, and industrial assembly. The polyester backing resists stretching and maintains dimensional stability once applied.

Key Features

• Double coated PET polyester backing provides dimensional stability and a firm bond plane
• Acrylic adhesive adheres to metals, high surface energy plastics, and composite materials
• Excellent UV resistance supports outdoor and exposed-environment applications
• Performs reliably across high and low temperature ranges
• Strong peel, tack, and shear strength for demanding bonding tasks
• White finish for clean appearance in visible installations

Compatibility

Designed as a double coated bonding tape for use on metals, high surface energy plastics, and composite substrates in industrial and trade applications.

Installation Notes

Surface preparation is critical for full adhesive performance — clean and degrease all bonding surfaces before application. Apply firm, even pressure across the tape to maximize contact and initial tack. This product is intended for permanent bonding; removal after full cure may damage substrates. Follow all applicable safety and handling guidelines for adhesive tapes in the intended work environment.

Technical Specifications

• Series: Venture Tape 514CW
• Backing Material: Polyester (PET)
• Adhesive Type: Acrylic, double coated
• Color: White
• Width: 1.46 inches
• Unit of Measure: Roll
• Package Weight: 19.877 pounds
• Package Length: 11.13 inches
• Package Width: 11.13 inches
• Package Height: 12.56 inches
• Minimum Order Quantity: 32
• UPC: 051128962256

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010338280
