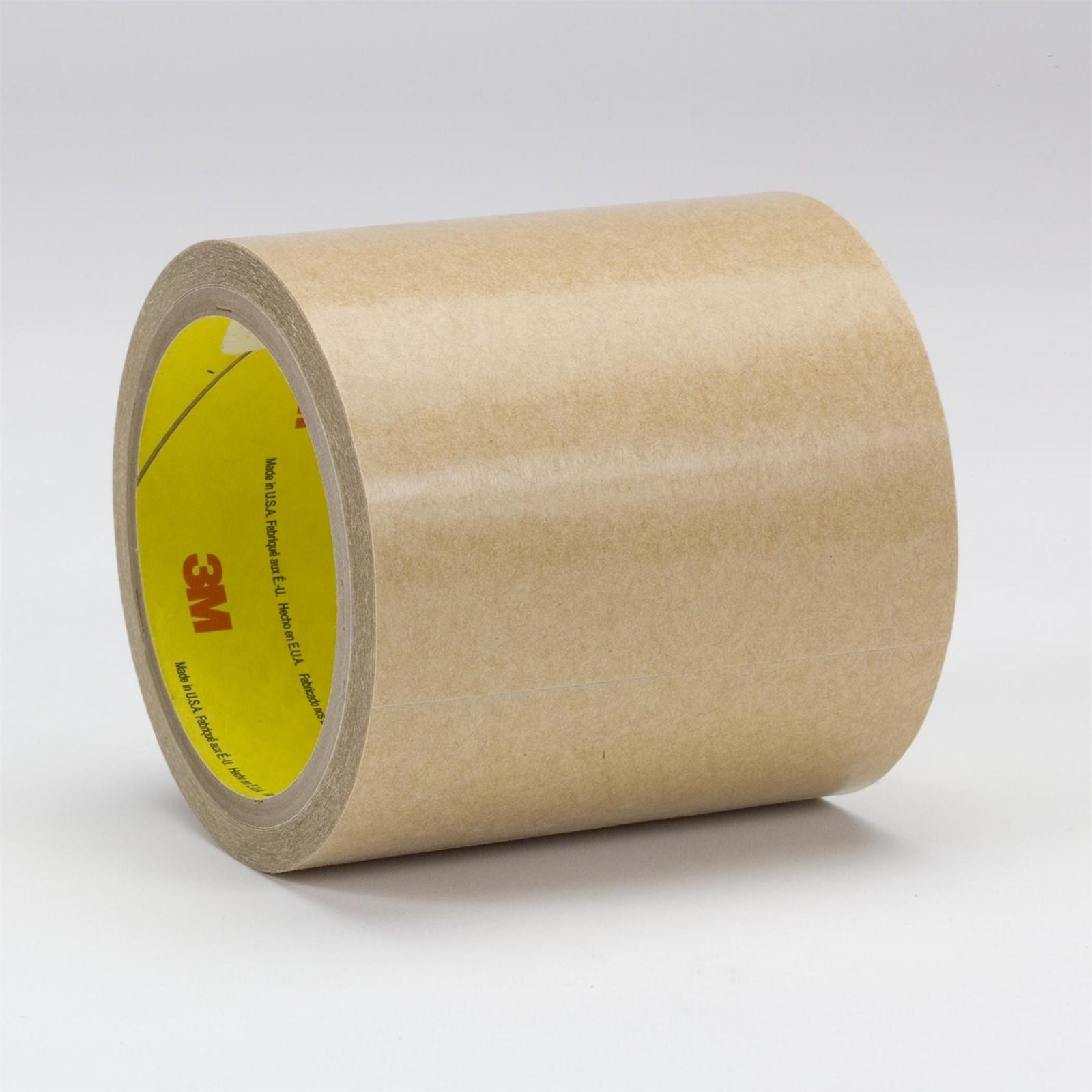

3M 7010334986 Adhesive Transfer Tape 1-3/4 in 180 Yd

Product Description

The 3M 7010334986 is a 5.0 mil adhesive transfer tape built around a 300 high strength acrylic adhesive carried on a 3.5 mil, 60 lb densified kraft paper liner. The tape measures 1 3/4 inches wide and runs 180 yards per roll, making it well suited for high-volume bonding operations in industrial, manufacturing, and commercial assembly environments. It delivers aggressive initial adhesion across a broad range of substrates and is UL approved. The 7010334986 meets US government specification MIL-P-19834B, Amendment 1, and serves as a thicker alternative to the 3M 927.

This tape is designed for general purpose transfer tape applications where a thin, high-tack bond is required. It performs on both high surface energy (HSE) and low surface energy (LSE) materials, making it appropriate for splicing films, foils, and fabrics, as well as laminating foams, photographs, fabrics, and metal or plastic nameplates. It is used by fabricators, sign makers, and assembly technicians working with similar or dissimilar materials that require an aggressive, long-lasting adhesive layer.

Key Features

• 5.0 mil total adhesive thickness with 300 high strength acrylic adhesive
• 3.5 mil, 60 lb densified kraft paper liner for clean, controlled release
• Bonds to both HSE and LSE substrates
• Good UV and chemical resistance for durable bonds in varied environments
• UL approved and meets MIL-P-19834B, Amendment 1
• Thicker construction compared to the 3M 927 for added adhesive body

Compatibility

Designed for bonding a wide variety of similar and dissimilar materials including films, foils, fabrics, foams, photos, and metal or plastic nameplates where an aggressive acrylic adhesive transfer is required.

Installation Notes

Surface preparation is critical — clean, dry, and degrease all substrates before application to ensure full adhesive contact. Apply firm pressure across the bonded area to maximize initial adhesion. Liner should be removed carefully and at a consistent angle to prevent adhesive distortion. Store unused rolls in a cool, dry location away from direct sunlight to preserve adhesive performance.

Technical Specifications

• Adhesive Type: 300 High Strength Acrylic
• Tape Thickness: 5.0 mil
• Liner: 3.5 mil, 60 lb densified kraft paper
• Width: 1 3/4 inches
• Length: 180 yards per roll
• Unit of Measure: Roll
• Weight: 4.08 pounds
• Package Dimensions: 10.9 x 10.9 x 11.3 inches
• Minimum Order Quantity: 24
• UPC: 00051115313943
• Approvals: UL Approved, MIL-P-19834B Amendment 1

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010334986
