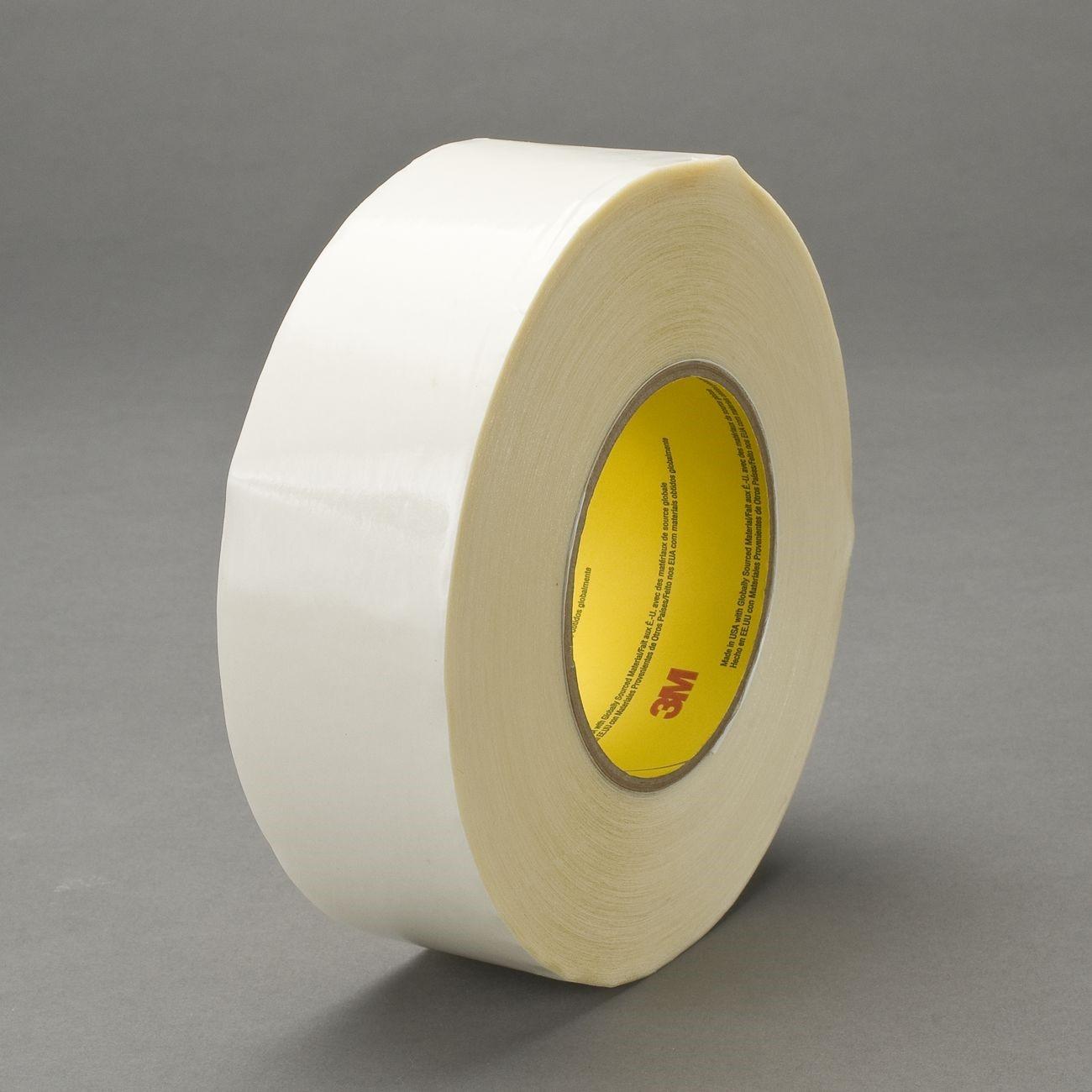

3M 7010334951 Double Coated Tape 2.83 in 60.15 Yd

Product Description

The 3M 7010334951 is a double coated, transparent polyester film tape designed for high-demand splicing and bonding applications. It features a super aggressive pressure-sensitive acrylic adhesive on both sides, backed by a glassine release liner. The hand-tearable polyester film conforms to both flat and irregular surfaces, delivering strong dimensional stability and easy handling. At 2.83 inches wide and 60.15 yards long per roll, this tape suits industrial and commercial assembly operations where consistent, reliable adhesion is required.

This tape is primarily used in splicing applications, including high-speed flying splices where immediate high tack is critical. The double-sided acrylic adhesive bonds well to most substrates, including low surface energy films, making it appropriate for converting, printing, and packaging operations. Its UV and heat resistance make it suitable for environments with exposure to varying temperature and light conditions. Installation and handling are straightforward due to the tape's hand-tearable construction and dimensional stability.

Key Features

• Super aggressive pressure-sensitive acrylic adhesive on both sides for ultra-high peel and shear strength
• High tack formulation supports flying splice applications
• Bonds to most substrates including low surface energy films
• Excellent UV and heat resistance for varied operating conditions
• Conformable construction adheres to irregular and flat surfaces
• Hand-tearable polyester film for easy handling without tools

Compatibility

Designed for splicing and bonding applications across converting, printing, and packaging industries where a transparent, double coated tape with high tack and conformability is required.

Installation Notes

Apply to clean, dry surfaces free of dust, oil, and contaminants for maximum adhesion. Firm hand pressure or a roller should be used during application to ensure full contact between the adhesive and the substrate. Remove the glassine release liner just prior to application to prevent contamination of the adhesive surface.

Technical Specifications

• Tape Width: 2.83 inches
• Tape Length: 60.15 yards
• Film Type: Polyester
• Adhesive Type: Pressure-sensitive acrylic, double coated
• Liner Type: Glassine release liner
• Color: Transparent
• Unit of Measure: Roll
• Minimum Order Quantity: 16
• Package Weight: 2.44 pounds
• Package Length: 12.31 inches
• Package Width: 12.31 inches
• Package Height: 12.63 inches
• UPC: 00051111979235

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010334951
