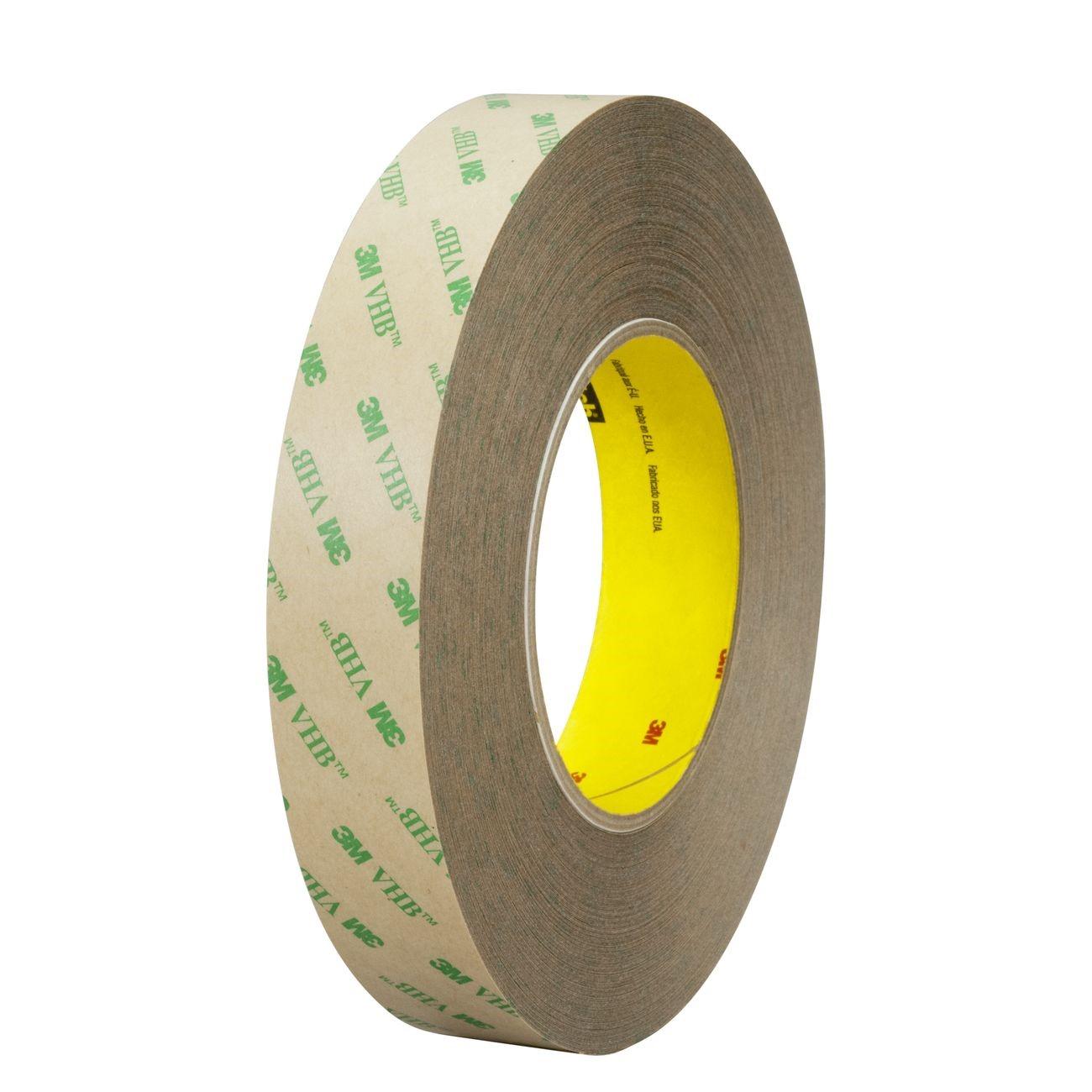

3M 7010334448 Vhb F9469PC Adhesive Transfer Tape 0.25 in

Product Description

The 3M 7010334448 is the VHB F9469PC Adhesive Transfer Tape, a thin, transparent, double-sided acrylic adhesive film engineered for high-strength bonding across a wide range of surfaces. Built on 3M High Performance Acrylic Adhesive 100MP at a 5.0 mil thickness, this transfer tape delivers exceptional holding power and long-lasting adhesion without adding bulk to the assembly. The polycoated kraft paper liner protects the adhesive until application and peels away cleanly. It is installed by fabricators, assembly technicians, and trade professionals working in both indoor and outdoor environments where a permanent, low-profile bond is required.

This tape is suited for residential and commercial applications where conformability to irregular surfaces is needed. Its chemical, UV, and solvent resistance makes it appropriate for use in environments exposed to harsh conditions. The tape ships in roll form and is intended for applications requiring a clean, nearly invisible bond line. Typical use cases include panel bonding, nameplate attachment, gasket mounting, and similar precision assembly tasks.

Key Features

• 5.0 mil thickness provides a thin profile with high-strength acrylic adhesive for a durable, long-lasting bond
• Short-term temperature tolerance up to 500 degrees F (260 degrees C)
• Operating temperature tolerance up to 300 degrees F (149 degrees C)
• Transparent construction creates a nearly invisible bond line
• Resistant to chemicals, UV exposure, and solvents
• Conforms to a wide variety of indoor and outdoor surfaces and applications
• 58-lb polycoated kraft paper liner with printed VHB branding for easy identification

Compatibility

Designed as an OEM-style adhesive transfer tape for bonding applications requiring a thin, high-strength acrylic film on flat or contoured surfaces in both indoor and outdoor settings.

Installation Notes

Surface preparation is critical before applying this tape — clean surfaces thoroughly and ensure they are free of oils, dust, and moisture for maximum adhesion. Apply firm, even pressure across the entire bond area to ensure full contact between the adhesive and the substrate. Once applied and the liner is removed, repositioning is not recommended as the acrylic adhesive forms an aggressive bond quickly. Follow applicable safety data sheet guidelines when working with adhesive products in enclosed or poorly ventilated spaces.

Technical Specifications

• Tape Thickness: 5.0 mil (0.13 mm)
• Width: 0.25 inches
• Adhesive Type: High Performance Acrylic Adhesive 100MP
• Short-Term Temperature Tolerance: 500 degrees F (260 degrees C)
• Operating Temperature Tolerance: 300 degrees F (149 degrees C)
• Liner: 58-lb polycoated kraft paper
• Form Factor: Roll
• Package Weight: 0.1 pounds
• UPC: 00021200429255

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010334448
