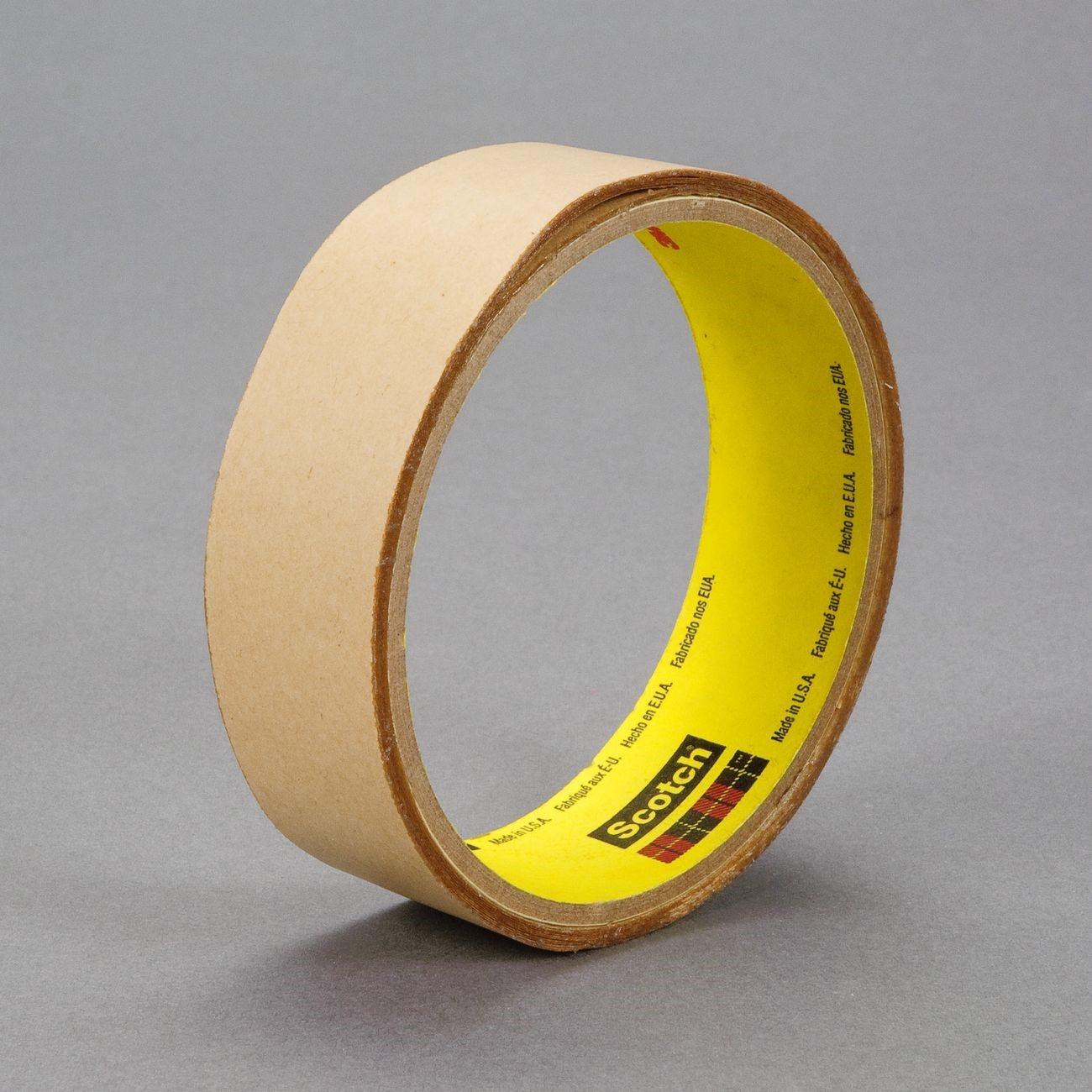

3M 7010334447 Adhesive Transfer Tape 2 Inch X 36 Yd

Product Description

The 3M 7010334447 is a 5.0 mil acrylic adhesive transfer tape designed for demanding splicing applications in offset printing and web-fed press environments. It features an aggressive acrylic adhesive that bonds reliably to hard-to-stick substrates including coated papers, vinyl, rubber, coated fabric, and polyethylene. The tape is backed by a tan 60 lb. densified kraft paper liner that provides roll stability and supports die-cutting operations. At 2 inches wide and 36 yards long, it is well suited for high-speed production workflows where reliable adhesion and clean handling are required. Licensed HVAC techs and printing equipment technicians alike recognize this format for zero-speed and flying splice work.

This adhesive transfer tape is used in offset printing, flexographic printing, and other web-fed processes that require zero-speed or flying splices on coated paper stocks. The kraft paper liner allows the roll to maintain structural integrity during handling and die-cutting. Its acrylic adhesive formula provides strong initial tack and long-term bond strength on coated and difficult surfaces. The tape also offers excellent UV resistance, making it suitable for applications where the finished assembly may see outdoor or high-light exposure.

Key Features

• 5.0 mil total thickness with aggressive acrylic adhesive for strong initial tack
• Tan 60 lb. densified kraft paper liner supports roll stability and die-cutting
• Bonds to vinyl, rubber, coated fabric, polyethylene, and hard-to-stick coated surfaces
• Designed for zero-speed and flying splices in offset and web printing processes
• Excellent UV resistance for durability in outdoor or high-light exposure conditions

Compatibility

Designed as an OEM-style adhesive transfer tape for use with offset printing equipment, web-fed press systems, and die-cutting operations requiring a kraft-lined acrylic transfer tape in a 2-inch roll format.

Installation Notes

Apply to clean, dry surfaces free of dust, oil, and loose coatings to achieve maximum bond strength. When used for flying splices, ensure splice geometry and tape placement conform to press manufacturer guidelines and operator safety procedures. Power down or de-energize press feed systems before performing any manual splice setup where hands are near moving components. Store unused rolls in a cool, dry location away from direct sunlight to preserve adhesive performance.

Technical Specifications

• Tape Thickness: 5.0 mil
• Width: 2 inches
• Length: 36 yards
• Liner: Tan 60 lb. densified kraft paper
• Adhesive Type: Aggressive acrylic
• Color: Transparent
• Unit of Measure: Roll
• Weight: 0.63 pounds
• UPC: 00021200429132

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010334447
