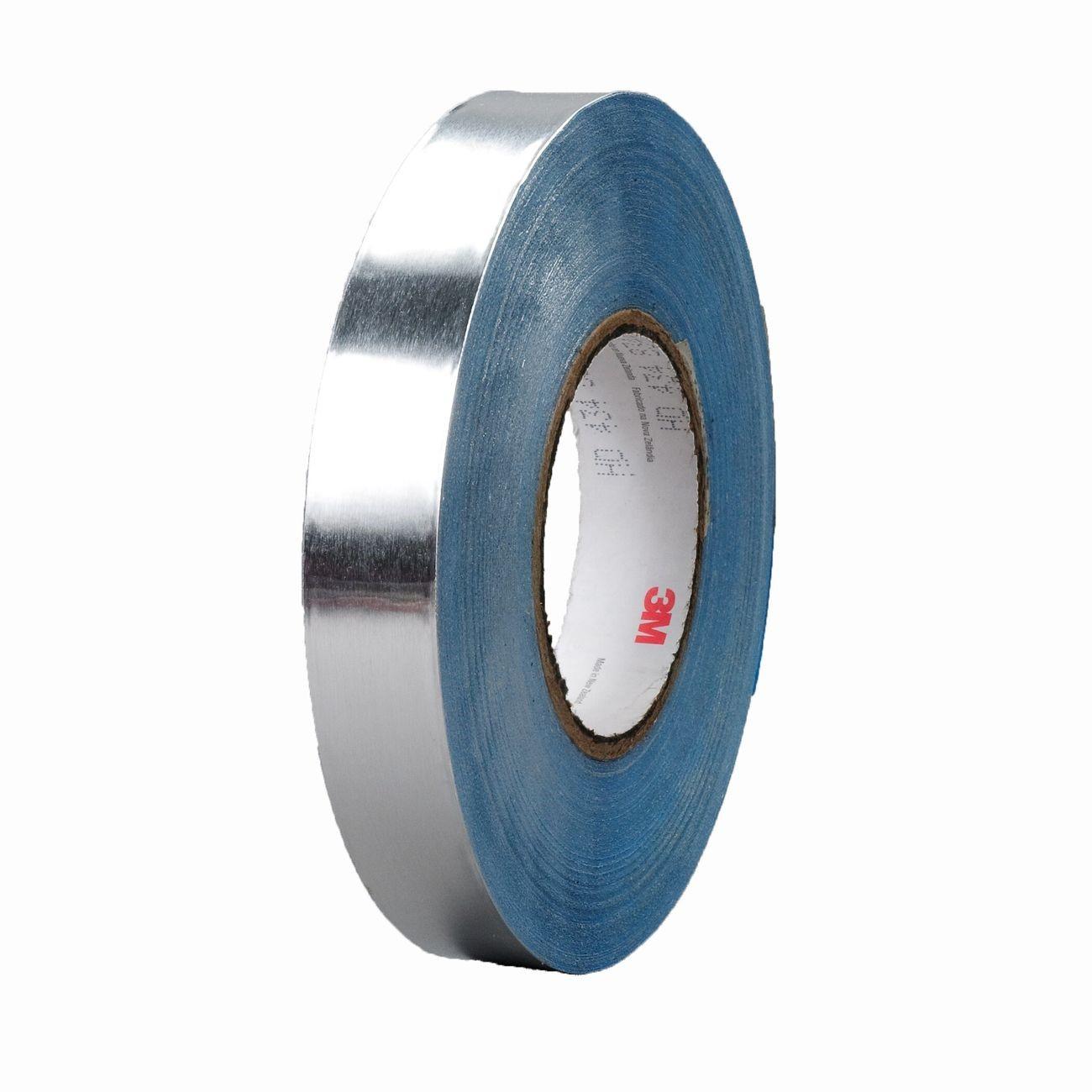

3M 7010334312 Vibration Damping Foil Tape 1 in X 36 Yd

Product Description

The 3M 7010334312 is a dead-soft aluminum foil vibration damping tape designed to absorb and dissipate mechanical vibration in demanding industrial and aerospace applications. The 8 mil construction pairs a silver aluminum foil constraining layer with a pressure-sensitive viscoelastic acrylic polymer adhesive on an easy-release liner. When bonded to a vibrating surface, the viscoelastic layer converts vibrational energy into negligible heat that quickly dissipates, reducing structure-borne noise and material fatigue. Each roll measures 1 inch wide and 36 yards long. HVAC fabricators, aerospace technicians, and industrial maintenance professionals are the primary installers of this product.

This tape is used on metal panels, ductwork, aircraft interior panels, and other substrates where vibration damping and noise reduction are required. Its low-temperature performance rating makes it suitable for cold-climate mechanical rooms, refrigerated transport, and aerospace environments. The linered format supports die-cutting, allowing technicians to pre-cut shapes that match specific part profiles before application. The tape also resists weather and UV degradation, making it a reliable choice for both indoor and outdoor installations where long-term adhesion is critical.

Key Features

• Rated for vibration damping down to -76 degrees F (-60 degrees C)
• Viscoelastic acrylic polymer adhesive converts vibrational energy to dissipating heat
• Dead-soft aluminum foil construction conforms to irregular surfaces
• Linered format supports die-cutting for precision part-matched shapes
• Resists UV exposure and weathering for durable outdoor and aerospace use
• Meets F.A.R. 25.853(a) flammability requirements

Compatibility

Designed as an OEM-style and aftermarket vibration damping solution for metal panels, ductwork, and structural components where pressure-sensitive foil tape is specified.

Installation Notes

Installation is typically performed by HVAC sheet metal technicians, aerospace maintenance crews, or industrial maintenance professionals. Clean and dry the substrate thoroughly before application to ensure maximum adhesion. Apply firm, even pressure across the full tape surface using a roller or similar tool to fully activate the pressure-sensitive adhesive. When die-cutting shapes from the roll, use appropriate cutting tools on a clean surface and handle the liner carefully to avoid contaminating the adhesive face.

Technical Specifications

• Tape Thickness: 8 mil
• Width: 1 inch
• Length: 36 yards per roll
• Color: Silver
• Foil Material: Dead-soft aluminum
• Adhesive Type: Pressure-sensitive viscoelastic acrylic polymer
• Low Temperature Rating: -76 degrees F (-60 degrees C)
• Certification: F.A.R. 25.853(a)
• Unit of Measure: Roll
• Weight: 1.58 pounds

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010334312
