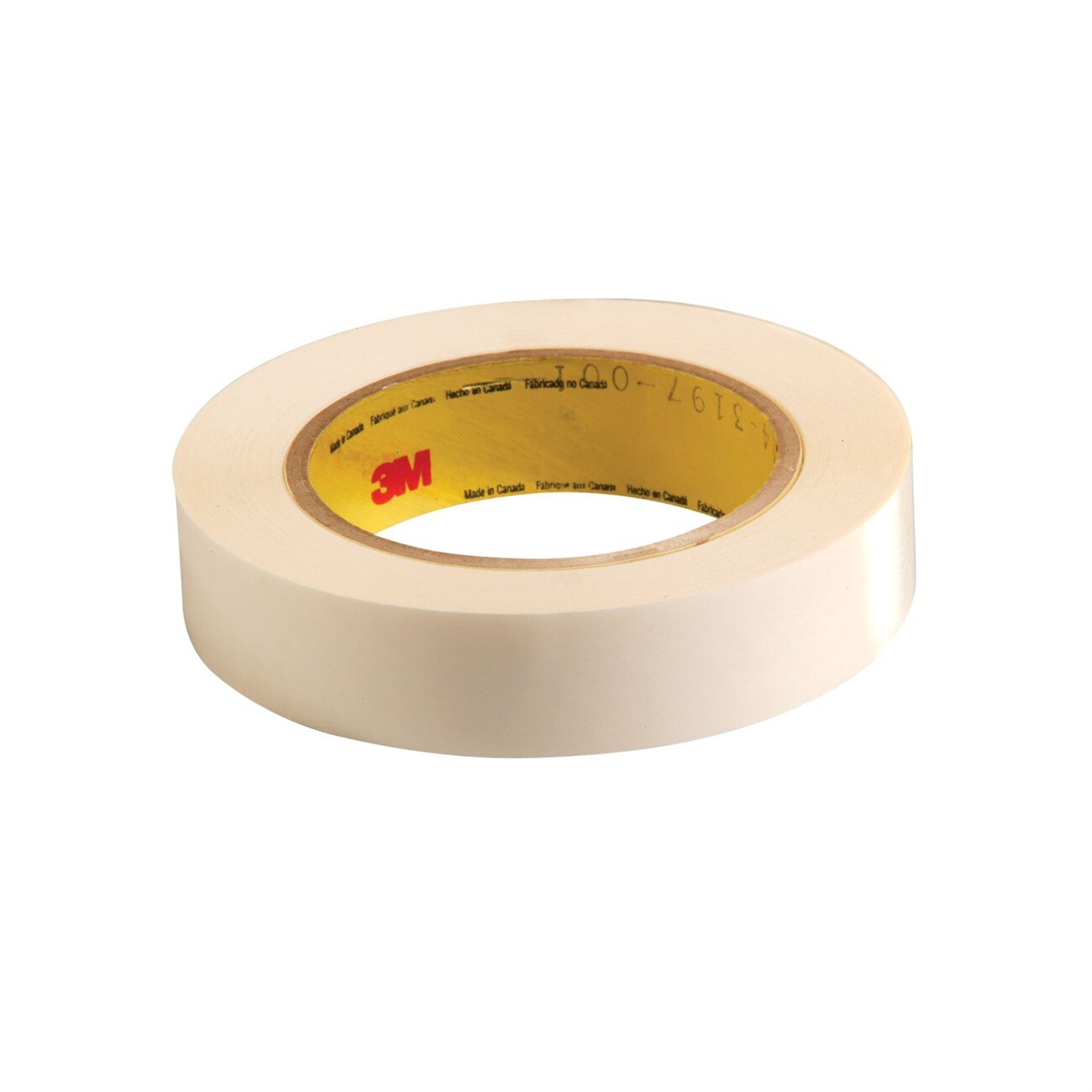

3M 7010334232 Double Coated Tape 1 Inch 36 Yd

Product Description

The 3M 7010334232 is a double coated tape built around a medium-firm acrylic adhesive system designed for joining smooth, thin materials with low residual stress. A 0.5 mil polyester (PET) film carrier sits between the two adhesive layers, adding dimensional stability and improving handling during slitting and die-cutting operations. The tape is transparent and supplied on a heavy polycoated kraft liner that provides moisture stability during large-part converting. Adhesion to low-surface-energy (LSE) plastics, including polyethylene, is a primary design strength. This tape is used in production and fabrication environments where fast lamination cycles and consistent bond performance are required.

This double coated tape is suited for foam and gasket attachment, plastic bonding, and lamination work in both light manufacturing and demanding production settings. The quick-flowing adhesive delivers high initial tack, making it effective for high-speed lamination lines where immediate bond strength reduces handling time. The PET carrier allows the tape to be die-cut and slit cleanly, which is a practical advantage in converting operations. It performs well on HSE and LSE plastics, making it a common choice when bonding polyethylene substrates where standard adhesives underperform.

Key Features

• Medium-firm acrylic adhesive with good solvent resistance for demanding production environments
• 0.5 mil PET film carrier improves dimensional stability and handling during slitting and die-cutting
• Aggressive adhesion to HSE and LSE plastics, including polyethylene
• Quick-flowing adhesive formula delivers high initial tack for faster lamination cycles
• Heavy polycoated kraft liner provides moisture stability for large-part converting
• Transparent construction for clean, low-visibility bonds

Compatibility

Designed for bonding smooth, thin materials with low residual stress, including foams, gaskets, and plastics such as polyethylene. Performs in production lamination environments requiring reliable adhesion to both high-surface-energy and low-surface-energy substrates.

Installation Notes

Surface preparation is critical for maximum adhesion — clean and dry the substrate before application, removing any oils, dust, or release agents. Apply firm, even pressure across the bond line to ensure full contact between the adhesive and substrate. When die-cutting or slitting, the PET carrier allows clean cuts; use sharp tooling to avoid edge delamination. No special tools or licensed trade certification is required for standard tape application, though production environments should follow workplace safety and ventilation guidelines appropriate to the materials being bonded.

Technical Specifications

• Width: 1 inch
• Length: 36 yards
• Carrier: 0.5 mil polyester (PET) film
• Adhesive Type: Medium-firm acrylic
• Liner: Heavy polycoated kraft
• Color: Transparent
• Unit of Measure: Roll
• Minimum Order Quantity: 36
• Weight: 0.42 pounds
• UPC: 00021200244001

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010334232
