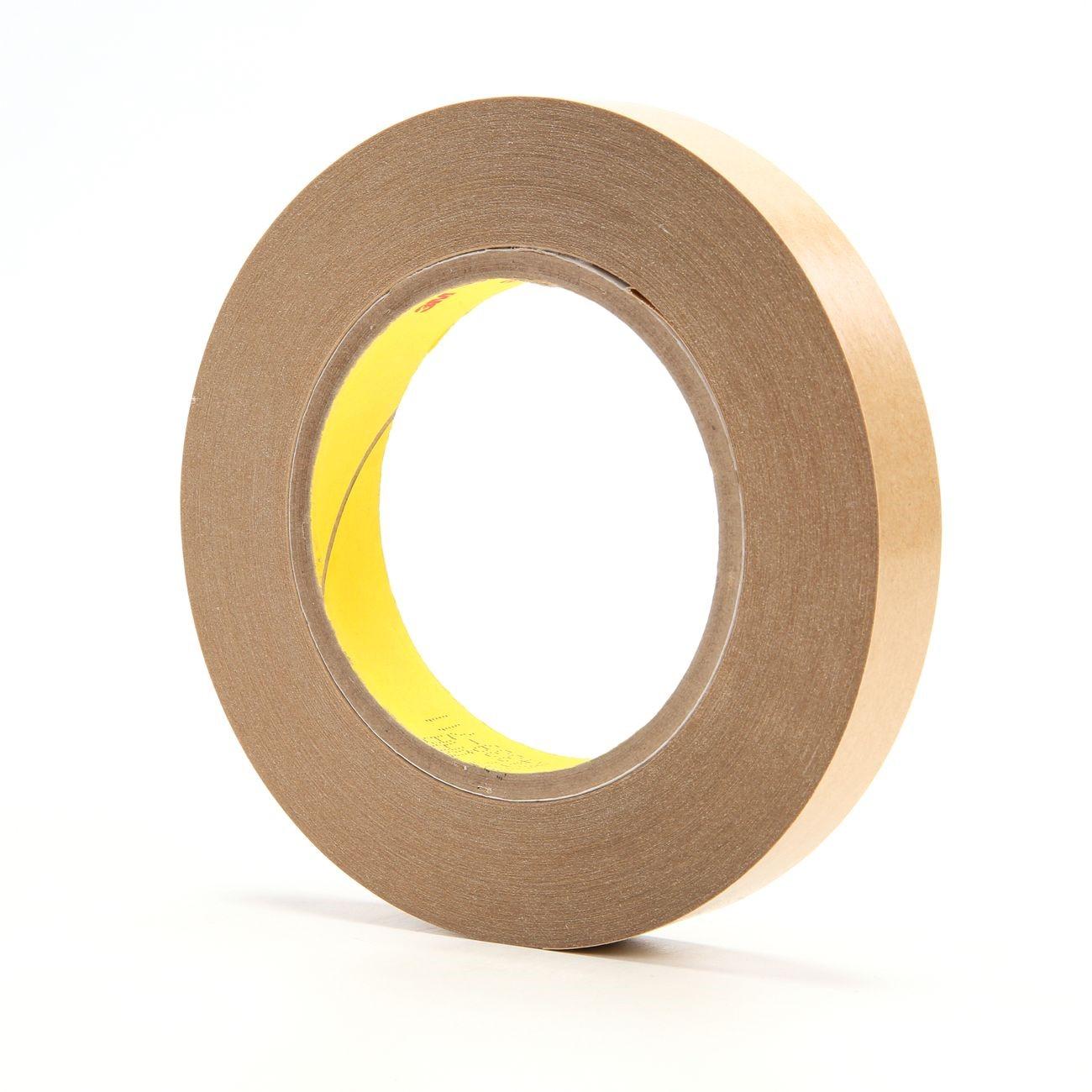

3M 7010334005 Adhesive Transfer Tape 0.75 in 60 Yd

Product Description

The 3M 7010334005 is an acrylic adhesive transfer tape designed for bonding dissimilar substrates in light fabrication, assembly, and processing applications. At 2 mil thick, it is optimized for thinner bonding tasks including splicing film, foils, fabrics, and coated papers. The tape uses a 300-family high-tack acrylic adhesive that delivers strong initial adhesion without a carrier layer, making it well suited for applications where a clean, thin bond line is required. Each roll measures 0.75 inches wide by 60 yards long and ships on a 60-densified kraft liner for dimensional stability during handling and die-cutting.

This tape performs especially well with low surface energy plastics such as polyethylene and polypropylene, as well as foam and gasket attachment. It is commonly used in fabrication shops, sign and graphics operations, HVAC component assembly, and light industrial manufacturing where laminating, die-cutting, or film splicing is part of the workflow. The fiber-reinforced construction improves conformability and ease of handling across varied substrate types.

Key Features

• High-tack 300-family acrylic adhesive for strong initial adhesion to low surface energy substrates
• 2 mil thickness for thin bond-line applications including film splicing, foil laminating, and coated paper assembly
• 60-densified kraft liner provides dimensional stability during die-cutting and laminating processing
• Bonds foam, gaskets, polyethylene, and polypropylene without a carrier layer
• Fiber-reinforced construction improves conformability and handling during processing

Compatibility

Designed for bonding dissimilar substrates including foams, low surface energy plastics, film, foil, fabrics, and coated papers. This product is a thinner alternative to 3M Adhesive Transfer Tape 950.

Installation Notes

Surface preparation is critical for transfer tape applications — clean and dry all substrates before application to ensure full adhesive contact. Apply firm, even pressure across the bond area using a roller or squeegee to activate adhesion. When die-cutting or laminating with this tape, handle the liner carefully to avoid distortion before the adhesive is transferred. Follow all applicable workplace safety guidelines when working with adhesive materials in enclosed spaces.

Technical Specifications

• Adhesive Type: Acrylic, 300 family high-tack
• Tape Thickness: 2 mil
• Width: 0.75 inches
• Length: 60 yards per roll
• Liner: 60-densified kraft
• Form Factor: Roll
• Package Weight: 0.44 pounds
• Package Dimensions: 11.38 x 11.38 x 10.25 inches
• UPC: 00021200052774

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010334005
