3M 7010333769 Double Coated Urethane Foam Tape 4026 12inx36yd

Product Description

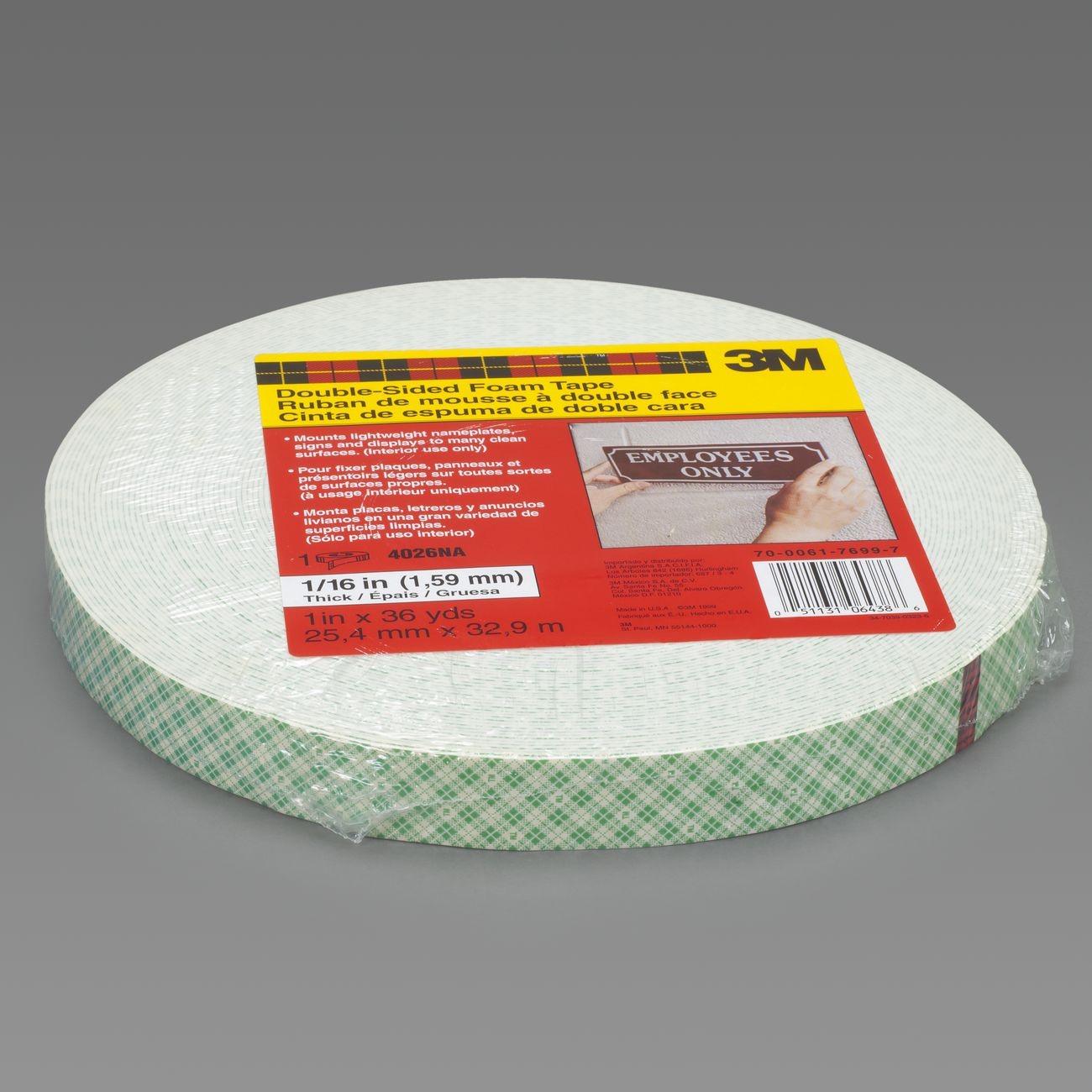

The 3M 7010333769 is a double coated, open-cell urethane foam tape sold under the 3M 4026 series. At 1/16 inch thick, the foam core is coated on both sides with adhesive and backed by a paper liner for clean handling and staged application. This tape bonds two surfaces together while simultaneously providing cushioning and vibration damping between them. It is suited for fabrication, assembly, and mounting tasks where a conformable, compressible bond layer is required. Trade professionals in HVAC, electrical, and general mechanical assembly use this tape for gasket-style bonding, panel mounting, and noise-dampening applications.

This roll measures 12 inches wide by 36 yards long, making it practical for wide-surface applications or high-volume cutting operations. The natural color and open-cell urethane foam construction allow for moderate compression and recovery. The paper liner keeps the second adhesive face protected until the tape is positioned and ready to bond, which aids accurate placement on larger work surfaces. Typical use cases include bonding insulation panels, mounting foam gaskets, and cushioning components in enclosures or equipment housings.

Key Features

• Double coated construction bonds two surfaces in a single tape layer
• Open-cell urethane foam core provides cushioning and compression between bonded surfaces
• 1/16 inch foam thickness suits applications requiring a thin, conformable bond layer
• 12 inches x 36 yard roll format supports wide-surface and high-volume cutting applications
• Paper liner protects the second adhesive face for clean, staged application
• Natural color foam core for general fabrication and assembly use

Compatibility

Designed as an OEM-style and general-purpose replacement or supply roll for double coated foam tape applications in fabrication, HVAC panel assembly, and mechanical equipment mounting.

Installation Notes

Surface preparation is critical before applying pressure-sensitive adhesive tape — clean and dry both mating surfaces to remove oils, dust, and moisture. Apply firm, uniform pressure across the tape after placement to achieve full adhesive contact. Cut to size with a sharp blade or roller cutter to maintain clean edges and consistent adhesive coverage. Follow material safety data sheet guidance for any enclosed-space or elevated-temperature installations.

Technical Specifications

• Series: 4026
• Construction: Double coated open-cell urethane foam
• Thickness: 1/16 inch
• Width: 12 inches
• Length: 36 yards
• Color: Natural
• Liner: Paper
• Unit of Measure: Roll
• Weight: 20.82 pounds
• UPC: 00021200314766

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010333769
