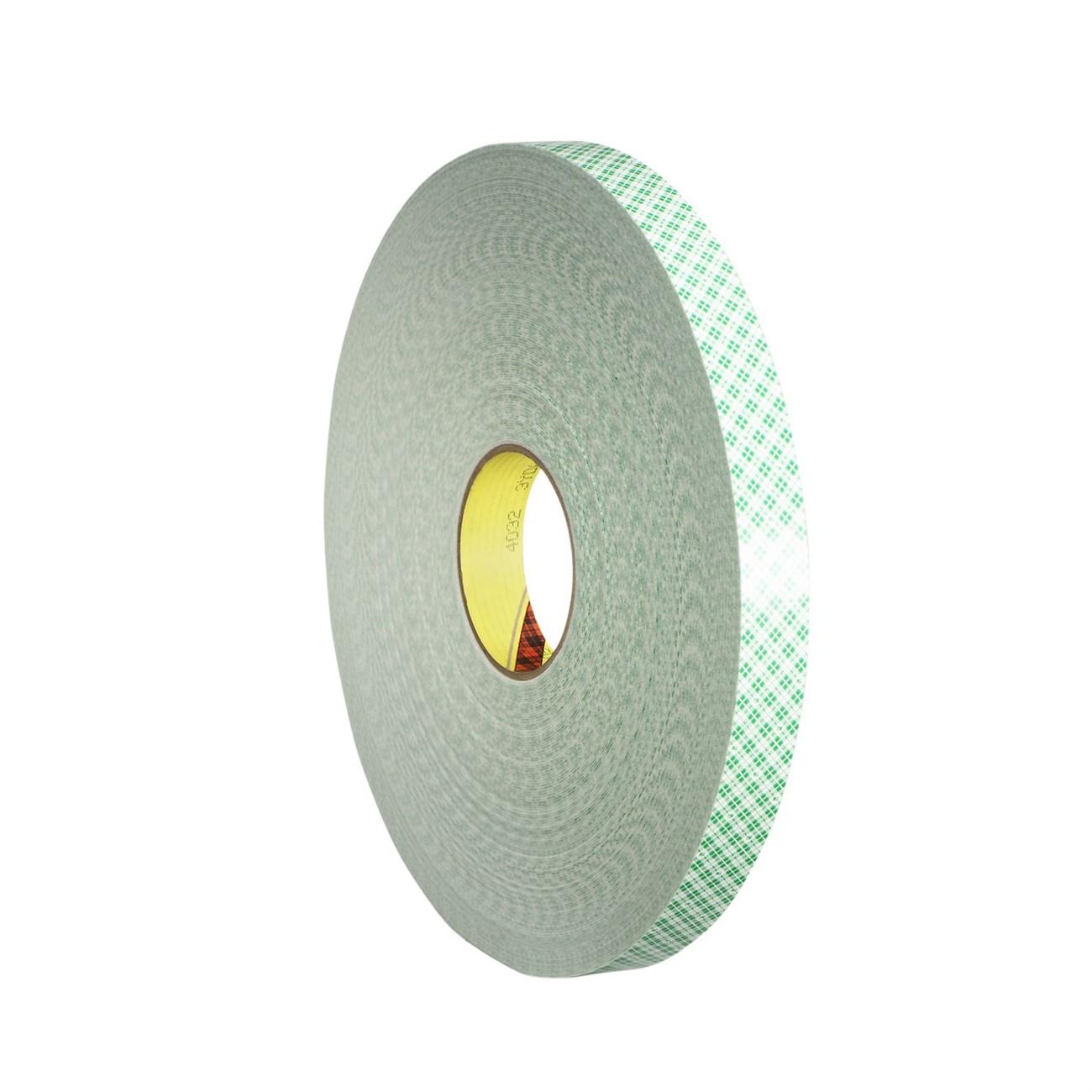

3M 7010331685 Double Coated Urethane Foam Tape 4032

Product Description

The 3M 7010331685 is a double coated, open-cell urethane foam tape designed for bonding two surfaces together while providing handling convenience during assembly. Sold as tape 4032 in an off-white finish, this roll measures 0.25 inches wide by 72 yards long and carries a thickness of 0.03125 inches (1/32 inch). The open-cell urethane foam core conforms to irregular surfaces, and the paper liner protects both adhesive faces until application. It is well suited for light fabrication, panel bonding, and component mounting tasks performed by technicians in HVAC, electrical, and general trade environments.

This tape is appropriate for use in residential and commercial applications where a thin, conformable bonding layer is needed between two mating surfaces. The double coated construction allows it to serve as a direct attachment medium without mechanical fasteners. Typical install scenarios include mounting nameplates, securing insulation facing, attaching light trim components, and providing vibration dampening between panels. Trade professionals handling repetitive assembly work will find the paper liner release process straightforward for production or service environments.

Key Features

• Double coated design bonds two surfaces in a single tape layer
• Open-cell urethane foam core conforms to slightly uneven or irregular surfaces
• 0.03125 inch (1/32 inch) thickness provides a low-profile bond line
• Paper liner protects adhesive faces and aids handling before application
• Off-white color for easy visual identification during assembly
• 72-yard roll length reduces changeover frequency in production or field use

Compatibility

Designed as an OEM-style bonding solution for light surface attachment applications across residential and commercial trade settings where a thin double coated foam tape is required.

Installation Notes

Surface preparation is critical before applying any pressure-sensitive foam tape — clean, dry, and dust-free substrates will achieve the strongest bond. Apply firm, even pressure along the full length of the tape after positioning to activate the adhesive contact. When used in HVAC or electrical enclosure applications, ensure the tape selection is appropriate for the temperature range of the environment. Remove the paper liner carefully to avoid stretching or contaminating the adhesive face prior to final placement.

Technical Specifications

• Width: 0.25 inches
• Length: 72 yards
• Thickness: 0.03125 inches
• Color: Off-White
• Core Material: Open-Cell Urethane Foam
• Liner Type: Paper
• Weight: 0.54 pounds
• Unit of Measure: Roll
• UPC: 00021200033575

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010331685
