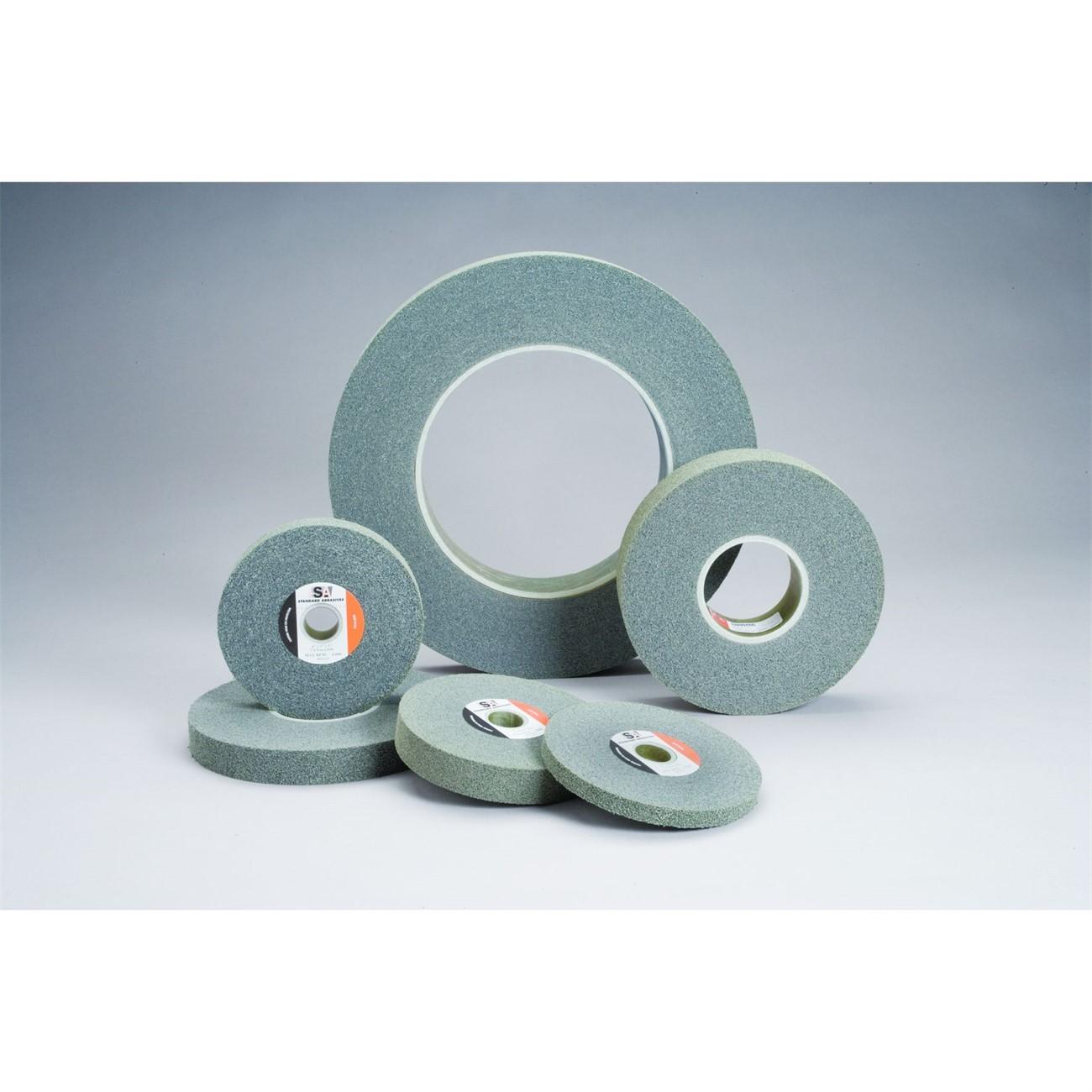

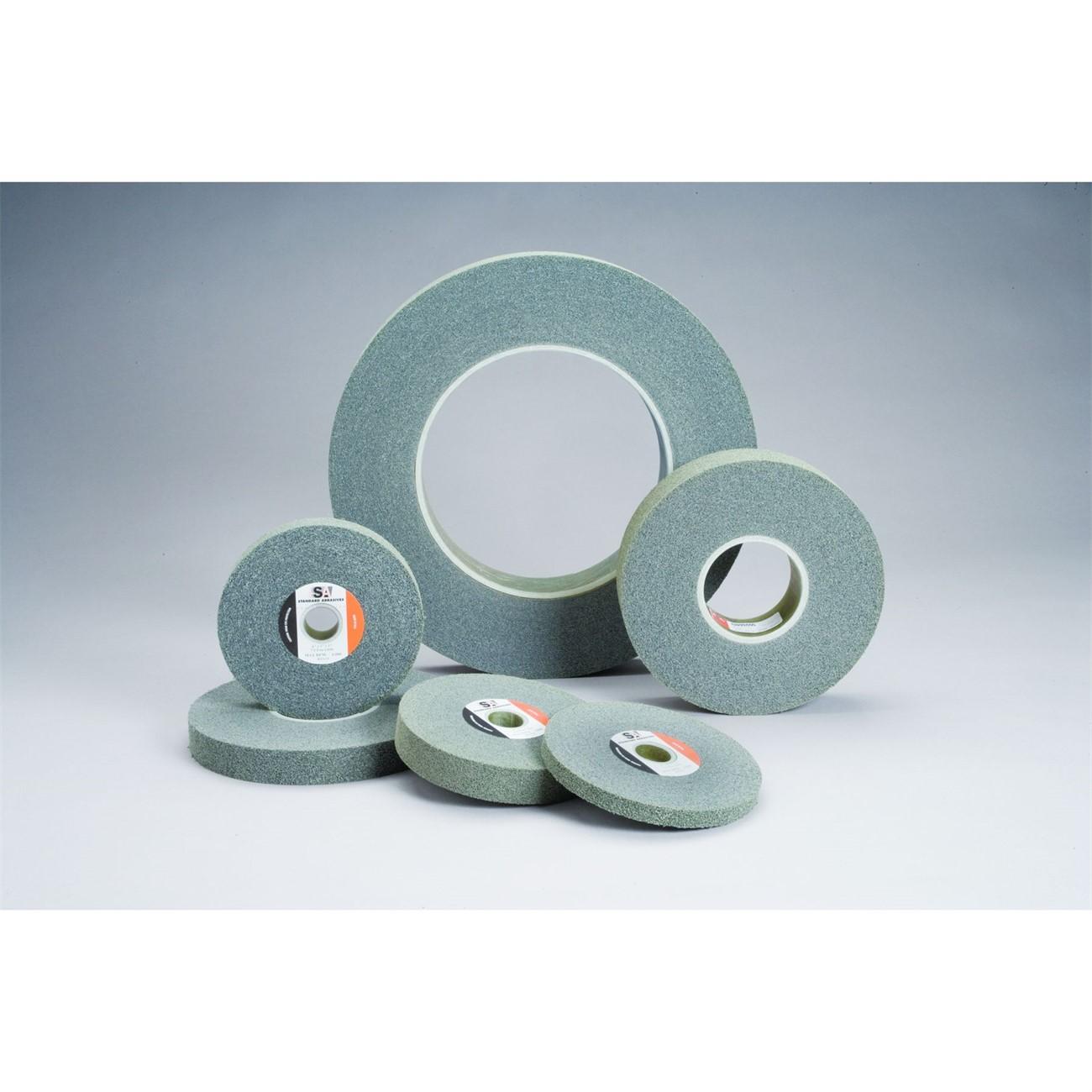

3M 7010330347 Convolute Light Deburring Wheel 12 in

Product Description

The 3M 7010330347 is a convolute light deburring wheel designed for finishing and deburring parts that require critical tolerances. The non-metallic, soft-density construction allows the abrasive to conform to the workpiece surface, preventing undercutting and gouging while maintaining a smear-resistant finish. At 12 inches in diameter with a 5-inch arbor, this wheel is sized for stationary and automated equipment. It weighs 4.139 pounds and measures 12.38 inches in length, 12.38 inches in width, and 3.75 inches in height. Licensed technicians and machinists working on precision deburring and surface finishing operations will find the wheel suited to demanding production environments.

This wheel is used in light deburring, blending machine marks, removing belt marks, and finishing small parts across metalworking and fabrication applications. It is compatible with automated equipment, straight-shaft stationary tools, portable tools, and feed-through machines. The fast finish rate reduces operator effort compared to conventional deburring wheels, making it a practical choice for high-volume or repetitive finishing tasks in shop environments.

Key Features

• Soft density construction conforms to workpiece surface to prevent undercutting and gouging
• Non-metallic material eliminates risk of workpiece contamination
• Maintains a smear-resistant finish on finished surfaces
• Fast finish rate reduces operator effort compared to competitive wheels
• Compatible with automated equipment, stationary tools, portable tools, and feed-through machines
• Suited for light deburring, blending, and finishing of small parts with critical tolerances

Compatibility

Designed for use on automated equipment, straight-shaft stationary tools, portable tools, and feed-through machines where a 12-inch diameter convolute deburring wheel with a 5-inch arbor is specified.

Installation Notes

Installation should be performed by a qualified machinist or equipment operator following the tool manufacturer's mounting instructions. Power down and lock out the equipment before mounting or removing the wheel. Verify that the arbor size and maximum RPM rating of the equipment match the wheel specifications before operation. Always use appropriate personal protective equipment including eye protection when operating abrasive wheels.

Technical Specifications

• Wheel Diameter: 12 inches
• Arbor Size: 5 inches
• Wheel Type: Convolute Light Deburring
• Package Length: 12.38 inches
• Package Width: 12.38 inches
• Package Height: 3.75 inches
• Weight: 4.139 pounds
• Unit of Measure: Each
• Minimum Order Quantity: 2
• UPC: 051115370163

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010330347
