3M 7010329359 Scotch-brite Exl Pro Deburring Wheel 16 in

Product Description

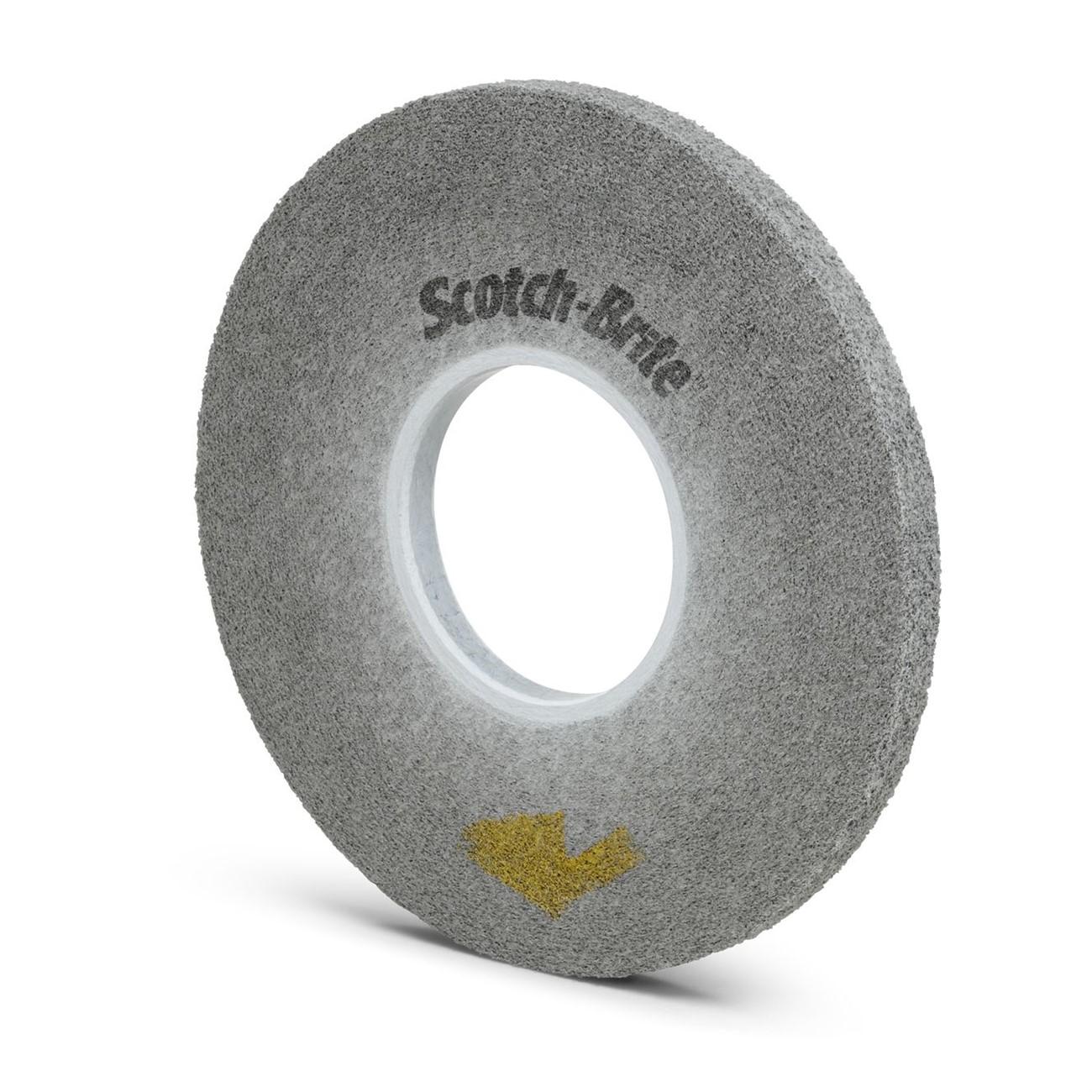

The 3M 7010329359 Scotch-Brite EXL PRO Convolute Deburring Wheel is a high-performance abrasive wheel engineered for off-hand deburring and edge-radiusing operations. At 16 inches in diameter and 1.7 inches wide, this convolute-construction wheel delivers extended service life compared to standard EXL wheels while maintaining the conformability and smooth feel that operators expect during sustained use. The wheel requires less applied pressure to achieve a fast cut, reducing operator fatigue during repetitive finishing tasks. Metalworking fabricators, machinists, and industrial maintenance technicians are the primary users.

This wheel is suited for off-hand grinding and finishing operations on metal workpieces where burr removal, edge radiusing, and surface blending are required. The convolute construction keeps the wheel running true and produces consistent results across a variety of ferrous and non-ferrous materials. Its unique resin system is formulated to minimize smearing, which reduces time spent cleaning workpiece surfaces after deburring. The design also limits heat buildup during operation, helping to reduce the risk of discoloration or thermal distortion on heat-sensitive materials.

Key Features

• Convolute construction promotes smooth, consistent wheel performance throughout its service life
• Requires less pressure than standard EXL wheels for faster material removal with reduced operator fatigue
• Resin system minimizes smearing to reduce post-operation surface cleanup time
• Minimizes heat buildup to reduce risk of discoloration and warping on heat-sensitive materials
• Extended service life versus the original EXL wheel design
• Weighs 3.79 pounds; 16.5 inches overall package dimension

Compatibility

Designed as an OEM-style replacement and direct-fit convolute deburring wheel for off-hand bench-grinder and pedestal-grinder setups requiring a 16-inch diameter wheel.

Installation Notes

Installation and operation should be performed by qualified metalworking or industrial maintenance personnel familiar with abrasive wheel safety. Power down and lock out the grinder before mounting or removing the wheel in accordance with OSHA lockout/tagout procedures. Verify that the machine spindle speed rating meets or exceeds the maximum operating speed marked on the wheel before use. Inspect the wheel for cracks or damage before each use and never use a damaged wheel.

Technical Specifications

• Wheel Diameter: 16 inches
• Wheel Width: 1.7 inches
• Construction Type: Convolute
• Application Type: Deburring and Edge Radiusing
• Weight: 3.79 pounds
• UOM: Each
• UPC: 00051125949002

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010329359
