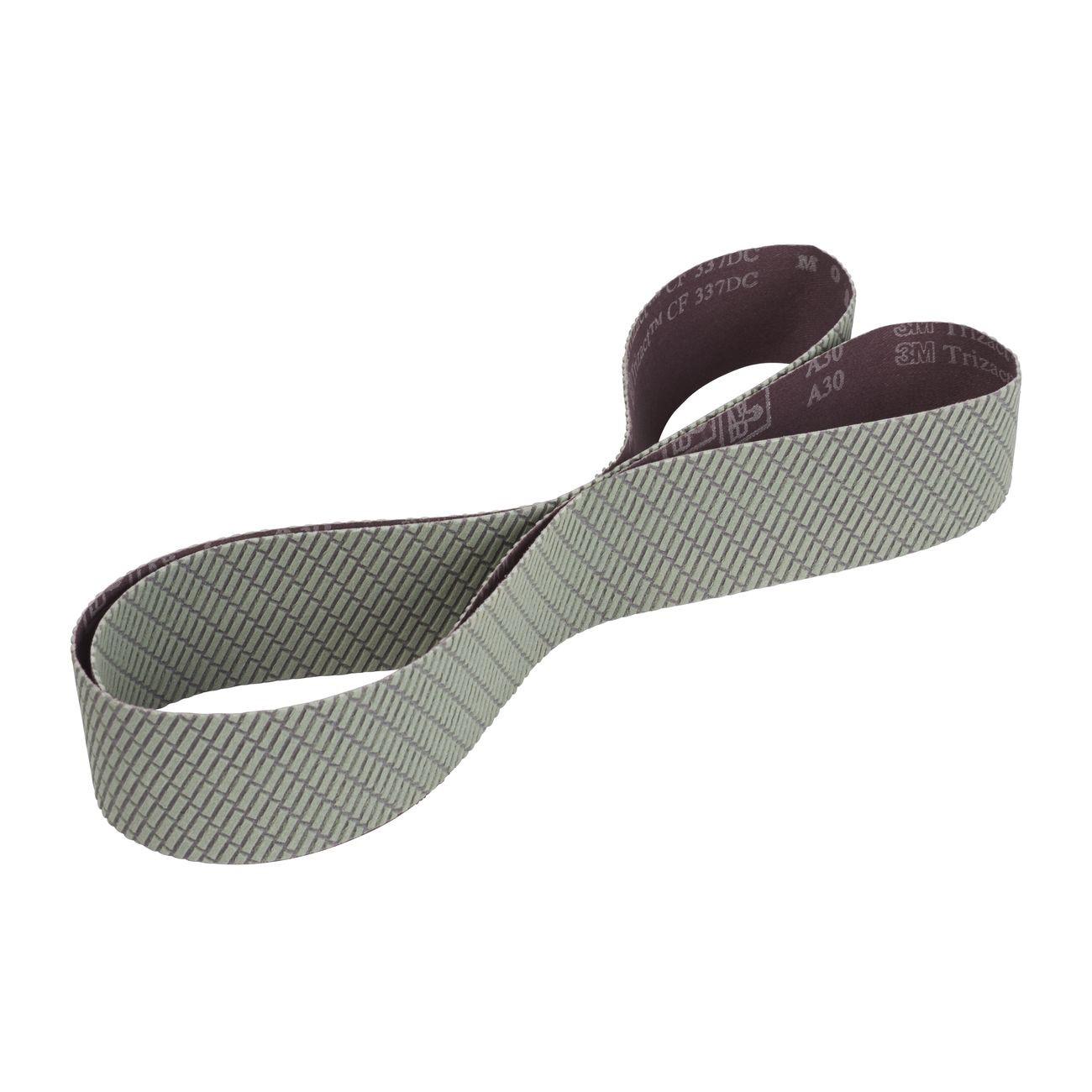

3M 7010329165 Trizact 337DC Abrasive Belt 60x2 Inch Ao

Product Description

The 3M 7010329165 is a Trizact 337DC aluminum oxide abrasive belt built for intermediate to final finish work in medium-pressure grinding and finishing applications. The belt uses macroreplicated abrasive bricks constructed from multiple layers of mineral bonded to an X-weight cloth backing. Channels between the bricks channel away swarf, keeping the work surface cleaner throughout the cut. A built-in grinding aid reduces friction and helps control workpiece temperature during dry grinding. The result is a controlled, predictable mineral breakdown that delivers consistent finishes from the first pass to the last.

This belt is suited to metalworking operations where a technician or fabricator needs to grind and finish a workpiece in a single operation rather than stepping through multiple abrasive products. The X-weight cloth backing handles the flex and tension demands of wide-belt and stroke-belt machines. At 60 inches long and 2 inches wide, this belt fits standard machine configurations common in fabrication shops, maintenance environments, and industrial finishing lines. The aluminum oxide mineral and grinding aid combination makes it particularly effective on ferrous metals and hard alloys where heat buildup is a concern during dry operation.

Key Features

• Macroreplicated abrasive bricks contain multiple layers of aluminum oxide mineral for extended cut life
• Swarf channels between bricks clear debris and maintain a cleaner cut surface
• Controlled mineral breakdown produces consistent, repeatable surface finishes over belt life
• Grinding aid reduces friction and limits heat transfer to the workpiece during dry grinding
• Durable X-weight cloth backing supports combined grinding and finishing in one pass
• Extended belt life reduces per-part abrasive cost and lowers inventory requirements

Compatibility

Designed as a direct-fit replacement belt for wide-belt, stroke-belt, and contact-wheel machines accepting a 60-inch by 2-inch abrasive belt configuration.

Installation Notes

Belt installation should be performed by a qualified operator following the machine manufacturer's belt-tensioning and tracking procedures. Power down and lock out the machine before changing the belt. Confirm belt direction-of-travel arrows align with the machine spindle rotation before starting. Inspect the contact wheel or platen for wear or debris that could damage the new belt.

Technical Specifications

• Abrasive Mineral: Aluminum Oxide
• Backing Material: X-Weight Cloth
• Belt Length: 60 inches
• Belt Width: 2 inches
• Application Type: Intermediate to Final Finish, Medium Pressure, Dry Grinding
• Weight: 0.39 pounds
• Unit of Measure: Each
• Minimum Order Quantity: 5

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010329165
