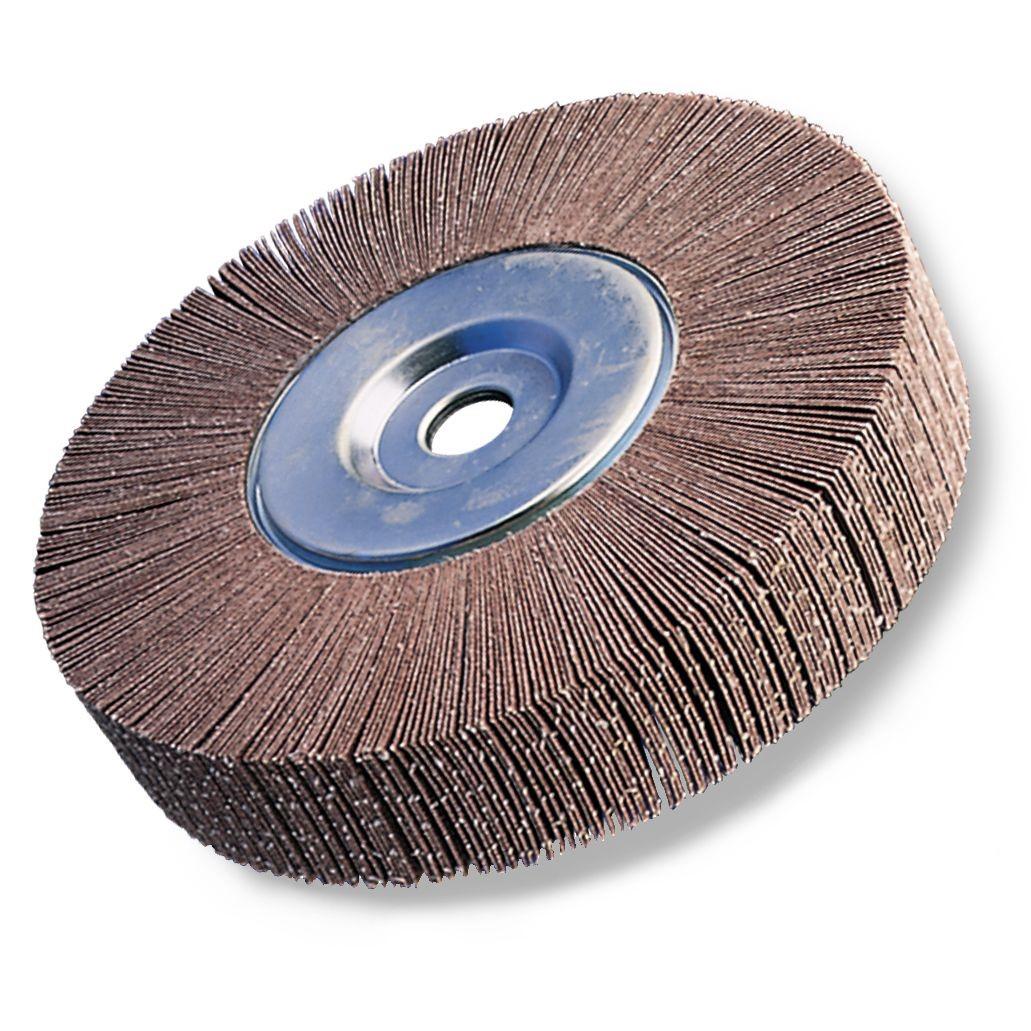

3M 7010328802 Ceramic Flap Wheel 80 Grit 6 Inch

Product Description

The 3M 7010328802 is a 6-inch diameter ceramic flap wheel designed for light grinding, blending, deburring, and polishing on metal surfaces. Built around a ceramic aluminum oxide abrasive blend, it delivers a high cut rate and extended wheel life compared to standard aluminum oxide wheels. The abrasive flaps are bonded to an X-weight polyester and cotton cloth backing using a resin bond system that resists heat and chemical breakdown during sustained use. Licensed trades and shop professionals use this wheel on angle grinders and spindle-mounted setups for finish work on rounded or irregular workpieces.

This flap wheel is suited for metalworking applications in fabrication shops, HVAC duct work, plumbing, and general mechanical service environments. The 80-grit ceramic abrasive provides an aggressive enough cut for deburring weld seams and blending surface transitions while still leaving a clean, smooth finish. The conforming flap design makes it particularly effective on contoured or non-flat surfaces where rigid grinding discs would leave uneven contact.

Key Features

• Ceramic aluminum oxide abrasive blend provides high cut rate and long wheel life
• X-weight polyester and cotton cloth backing withstands aggressive grinding loads
• Resin bond system resists thermal and chemical deterioration for extended service life
• Flap design conforms to rounded and irregular surface profiles for consistent contact
• Flaps wear progressively to expose fresh abrasive, maintaining a fast and even cut throughout wheel life

Compatibility

Designed as a direct-fit flap wheel for angle grinders and spindle arbors accepting 6-inch diameter flap wheel accessories in fabrication and metalworking applications.

Installation Notes

Installation and mounting should be performed by qualified shop technicians or trade professionals familiar with abrasive wheel safety. Before mounting, power down and de-energize the grinder and verify the tool's rated RPM meets or exceeds the wheel's maximum operating speed. Inspect the wheel for cracks or damage before each use and never exceed the rated maximum speed marked on the wheel. Follow ANSI B7.1 safety requirements for the use, care, and protection of abrasive wheels.

Technical Specifications

• Abrasive Type: Ceramic Aluminum Oxide
• Grit: 80
• Wheel Diameter: 6 inches
• Backing Material: X-weight Polyester and Cotton Cloth
• Bond Type: Resin
• Coating: Coated
• Package Dimensions: 10.84 x 6.76 x 7.08 inches
• Weight: 1.68 pounds
• UPC: 00051144819898

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010328802
