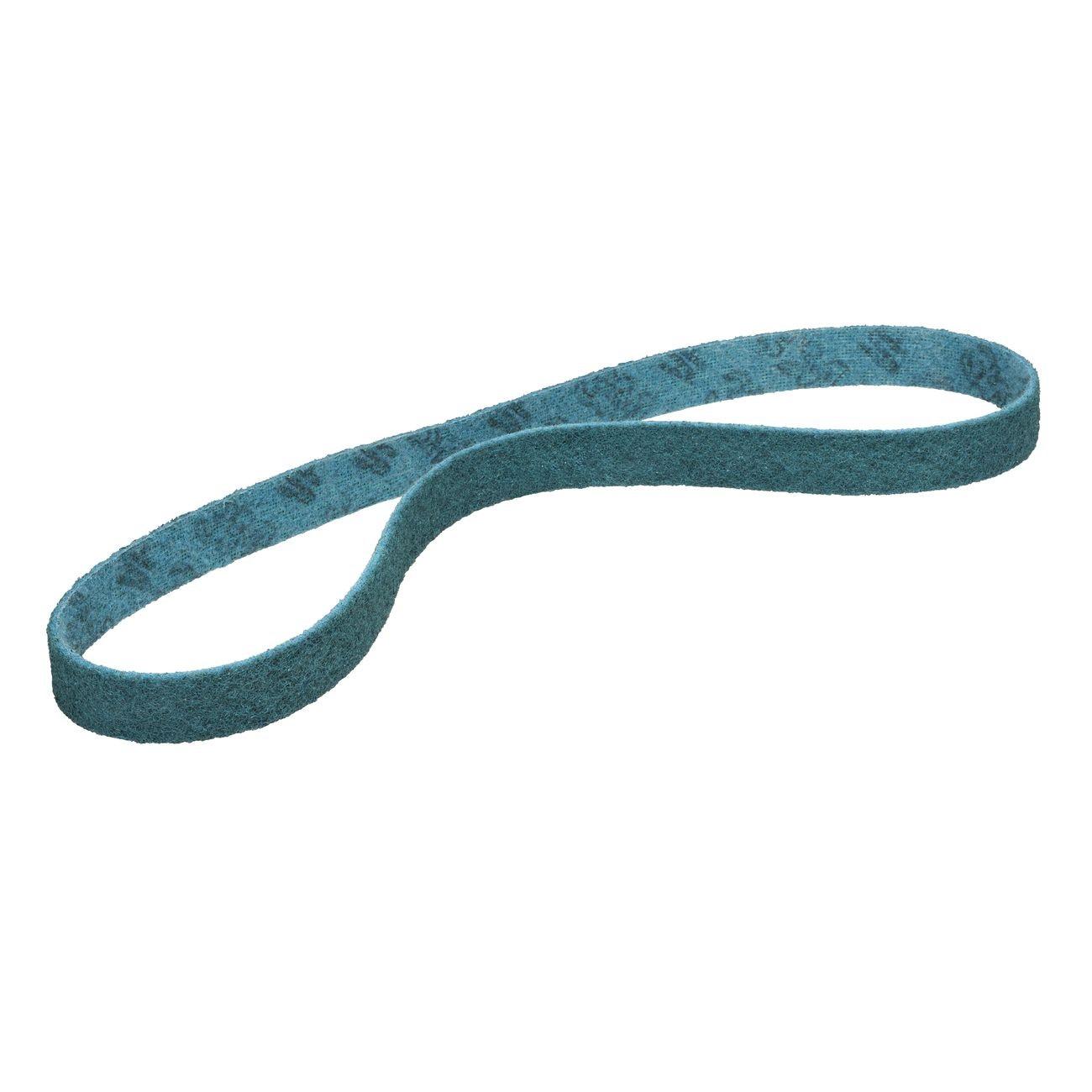

3M 7010328715 Surface Conditioning Belt 132x1.5 in Ao

Product Description

The 3M 7010328715 is a Scotch-Brite surface conditioning belt designed for demanding metalworking and finishing tasks. Built on a reinforced nonwoven open-web construction with an aluminum oxide abrasive grain and resin bond over a scrim backing, this belt delivers consistent material removal while resisting heat buildup and loading. At 132 inches long and 1-1/2 inches wide, it fits standard belt finishing machines used in fabrication shops, maintenance facilities, and production lines. It weighs approximately 0.6 pounds. Machinists, fabricators, and metal finishing technicians rely on it for detail work that requires both cutting action and surface conformability.

This belt is suited for a wide range of metalworking applications including blending, blending corners, cleaning, contour finishing, deburring edges, fine finishing, flat finishing, grain setting, stainless steel finishing, and achieving straightline-brushed finishes. Its open-web nonwoven structure allows it to conform to complex and irregular part geometries, making it appropriate for both hand-assisted belt finishing and robotic processing setups. It performs consistently on a variety of metal substrates.

Key Features

• Nonwoven open-web construction reduces loading and heat buildup during extended operation
• Aluminum oxide grain with resin bond delivers consistent surface conditioning results
• Reinforced scrim backing provides flexibility for contour and edge work
• Conformable structure maintains abrasive contact on complex-shaped and irregular parts
• Removes grind lines, mill marks, and other surface imperfections without aggressive stock removal
• Suited for robotic and automated finishing applications as well as manual use

Compatibility

Designed for use on belt finishing machines accepting a 132-inch by 1-1/2-inch belt. Compatible with a variety of metal substrates including stainless steel, carbon steel, aluminum, and other common fabricated metals.

Installation Notes

Installation should be performed by a qualified operator familiar with belt finishing equipment. Before mounting or changing the belt, power down and lock out the machine per OSHA lockout/tagout procedures. Verify belt tracking and tension according to the machine manufacturer specifications before resuming operation. Inspect the belt for tears or damage before each use and replace if the backing or web shows signs of deterioration.

Technical Specifications

• Belt Length: 132 inches
• Belt Width: 1.5 inches
• Abrasive Grain: Aluminum Oxide (AO)
• Bond Type: Resin
• Backing Material: Scrim
• Construction: Nonwoven
• Weight: 0.6 pounds
• Unit of Measure: Each
• Minimum Order Quantity: 5
• UPC: 00048011142814

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010328715
