3M 7010328595 Abrasive Belt 777F 75x13 Inch 80 Grit

Product Description

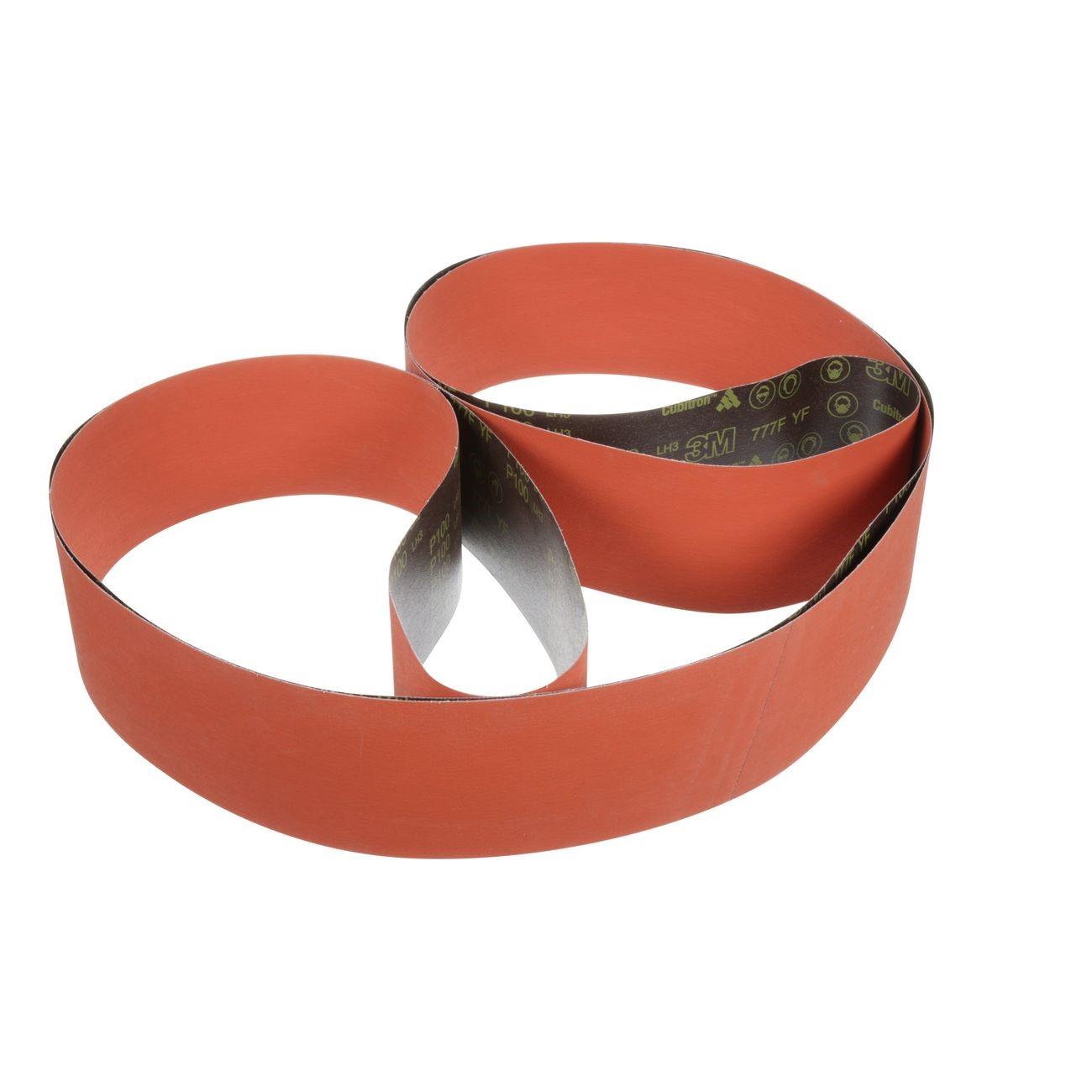

The 3M 7010328595 is a coated abrasive belt in the 777F series, designed for demanding metal stock removal and finishing applications. It combines ceramic abrasive grain with aluminum oxide to deliver faster cutting and extended belt life compared to conventional aluminum oxide belts. The heavyweight polyester cloth backing handles high-pressure grinding without breaking down, and the belt runs effectively both dry and with lubricant. A built-in grinding aid reduces heat buildup at the workpiece, making it well suited for stainless steel and other heat-sensitive metals. Fabricators, weld grinding crews, and metal finishing shops are the primary users of this belt.

This belt is used in industrial metal fabrication and finishing environments where throughput and belt longevity matter. It performs in stock removal, weld blending, and surface conditioning on ferrous and non-ferrous metals. The 75-inch length and 13-inch width fit wide-contact and slack-belt grinding machines common in production settings. Its 80 grit rating positions it for aggressive material removal while still leaving a workable surface finish. The belt can be used on stainless steel, carbon steel, and similar alloys where heat management during grinding is a priority.

Key Features

• Ceramic and aluminum oxide grain blend cuts faster and outlasts traditional aluminum oxide belts
• Heavyweight polyester cloth backing supports high-pressure grinding applications
• Runs wet or dry, adding flexibility across different workstation setups
• Built-in grinding aid reduces heat generation, extending performance on stainless steel and heat-sensitive alloys
• Durable resin bond resists heat deterioration for longer belt service life
• Higher parts-per-belt output reduces changeover frequency in production environments

Compatibility

Designed for use on wide-contact and slack-belt abrasive grinding machines that accept a 75-inch by 13-inch belt configuration. Suitable for metal stock removal, weld grinding, and finishing applications on ferrous and non-ferrous workpieces.

Installation Notes

Belt installation and tensioning should be performed by qualified personnel with the grinder powered off and locked out per applicable lockout/tagout procedures. Confirm belt tracking and tension according to the machine manufacturer's specifications before running. Inspect the belt for tears or edge damage before each use and replace immediately if defects are found. When running wet, verify that the lubricant is compatible with the workpiece material and the machine's drainage system.

Technical Specifications

• Series: 777F
• Abrasive Type: Ceramic Aluminum Oxide Blend
• Grit: 80
• Belt Length: 75 inches
• Belt Width: 13 inches
• Backing Material: Heavyweight Polyester Cloth
• Color: Orange
• Application: Metal Stock Removal and Finishing
• Wet or Dry Use: Both
• Weight: 1.85 pounds
• Unit of Measure: Each
• Minimum Order Quantity: 10
• UPC: 00051111679074

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010328595
