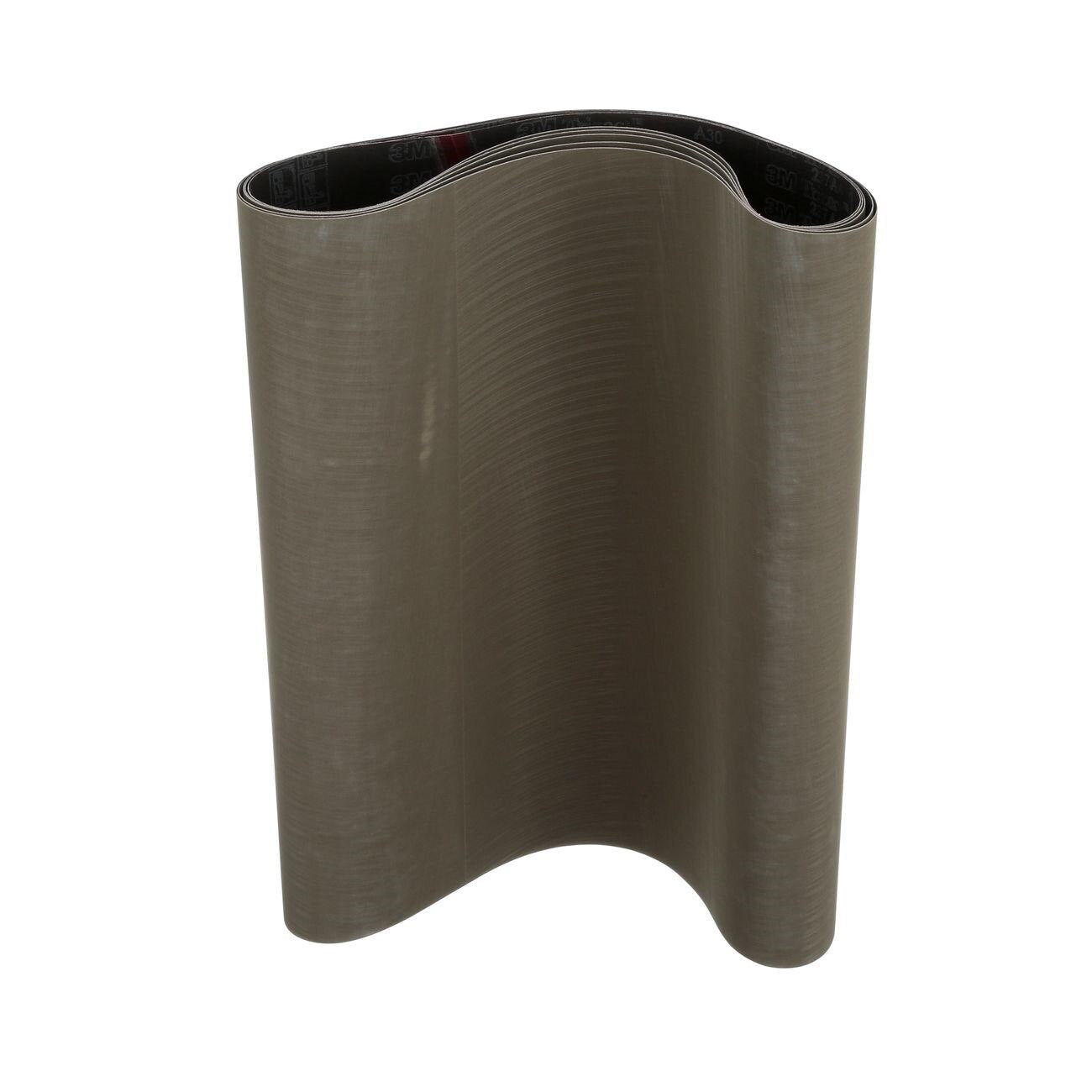

3M 7010328236 Abrasive Belt 126 Inch Ao Cloth Gray

Product Description

The 3M 7010328236 is a Trizact 237AA coated abrasive belt designed for intermediate finishing and fine polishing in industrial and manufacturing environments. It uses 3M microreplication technology, where micron-graded aluminum oxide particles are formed into three-dimensional pyramids and bonded to an X-weight cloth backing. As the abrasive works, the pyramids wear to expose fresh, sharp mineral continuously, producing a consistent cut rate and a predictable fine finish throughout the life of the belt. At 126 inches long and 26 inches wide, this belt is sized for wide-belt finishing machines used in high-volume surface preparation operations.

This belt is suited for robotic and automated wide-belt finishing applications where consistent surface finish is critical. It excels in intermediate stock removal and fine polishing steps prior to electroplating or buffing operations. The flexible X-weight cloth backing conforms to contoured workpiece surfaces, making it appropriate for parts with complex geometry. Metalworking shops and fabrication facilities running automated surface finishing lines are the primary users of this product.

Key Features

• Microreplication technology forms aluminum oxide into self-sharpening pyramidal structures for consistent cut
• Pyramids wear to expose fresh mineral continuously, extending usable belt life
• Runs cooler than conventional coated abrasives, reducing heat-related workpiece damage
• Flexible X-weight cloth backing conforms to contoured surfaces
• Three-dimensional abrasive design delivers repeatable finishes in robotic and automated applications
• Produces finer surface finishes than traditional electrostatically coated abrasives

Compatibility

Designed for use on wide-belt finishing machines that accept 126-inch by 26-inch abrasive belts. Suitable for metalworking applications requiring intermediate finishing or fine polishing prior to plating or buffing.

Installation Notes

Installation should be performed by qualified machine operators familiar with wide-belt abrasive equipment. Power down and lock out the machine before loading or removing belts. Verify belt tracking and tension settings per the equipment manufacturer guidelines before resuming operation. Inspect the belt and machine platens for wear or debris before each use.

Technical Specifications

• Belt Length: 126 inches
• Belt Width: 26 inches
• Abrasive Mineral: Aluminum Oxide
• Backing Material: X-weight Cloth
• Abrasive Technology: Microreplication (Trizact)
• Color: Gray
• Weight: 4.8 pounds
• Unit of Measure: Each
• Minimum Order Quantity: 5

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010328236
