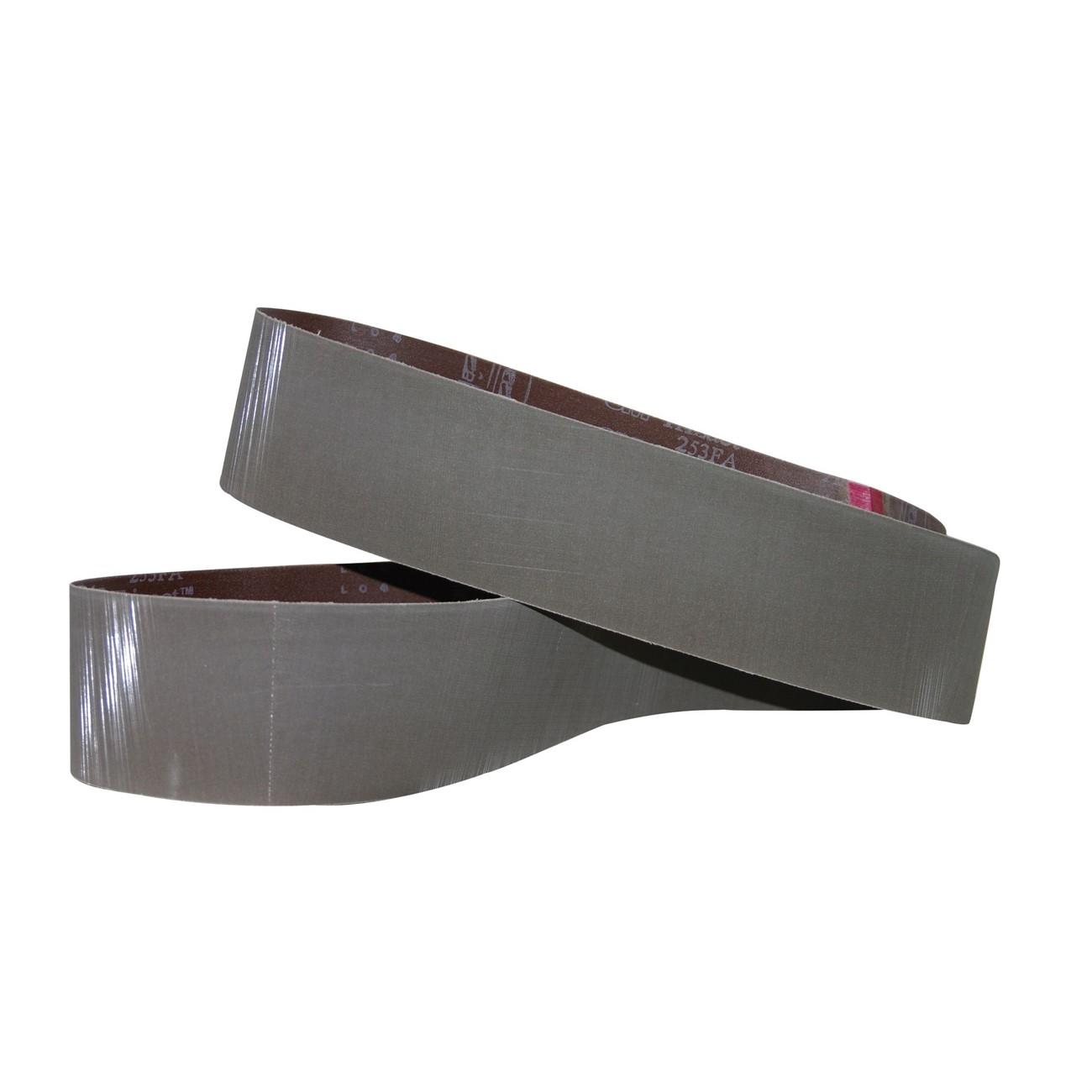

3M 7010328213 Abrasive Belt 79x6 Inch Aluminum Oxide

Product Description

The 3M 7010328213 is a Trizact 253FA coated abrasive belt designed for flat finishing and centerless grinding applications in metal fabrication and finishing environments. It uses microreplicated aluminum oxide mineral bonded with resin onto an XF-weight polyester cloth backing that is waterproof and built to handle demanding wet or dry use. The structured abrasive construction delivers consistent, controlled cut rates and reduces the risk of uneven finishes across the workpiece surface. This belt measures 79 inches in length and 6 inches in width. It is installed and used by metalworking technicians and finishing professionals in production and job-shop settings.

This belt is suited for intermediate and fine finishing passes on flat stock and cylindrical workpieces processed through centerless equipment. Compatible metals include stainless steel, carbon steel, aluminum, nickel alloys, cobalt steel, copper, and brass. The XF-weight backing provides enough rigidity for flat work while retaining the flexibility needed to conform to irregular profiles. It is well matched to wet finishing lines where coolant or cutting fluid is present throughout the grinding process.

Key Features

• Microreplicated aluminum oxide mineral structure delivers consistent, repeatable cut with reduced risk of uneven finishes
• XF-weight waterproof polyester cloth backing supports rugged use and conforms to irregular profiles
• Engineered for wet intermediate and fine finishing applications
• Compatible with a broad range of metals including stainless steel, aluminum, nickel alloys, copper, and brass
• Suited for flat finishing and centerless grinding operations

Compatibility

Designed for use on metals including stainless steel, carbon steel, aluminum, nickel alloys, cobalt steel, copper, and brass in flat finishing and centerless abrasive belt applications.

Installation Notes

Belt installation and tensioning should be performed by qualified machine operators following the equipment manufacturer's guidelines. Power down and lock out the grinder or belt finishing machine before mounting or removing the belt. Verify belt tracking and tension before resuming operation. Inspect the belt and splice condition before each use and replace immediately if tearing, delamination, or splice separation is observed.

Technical Specifications

• Belt Length: 79 inches
• Belt Width: 6 inches
• Abrasive Mineral: Aluminum Oxide (Microreplicated)
• Backing Material: XF-Weight Polyester Cloth
• Backing Property: Waterproof
• Bond Type: Resin
• Application: Flat Finishing, Centerless Grinding
• Weight: 12.196 pounds
• UPC: 00051111670118

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010328213
