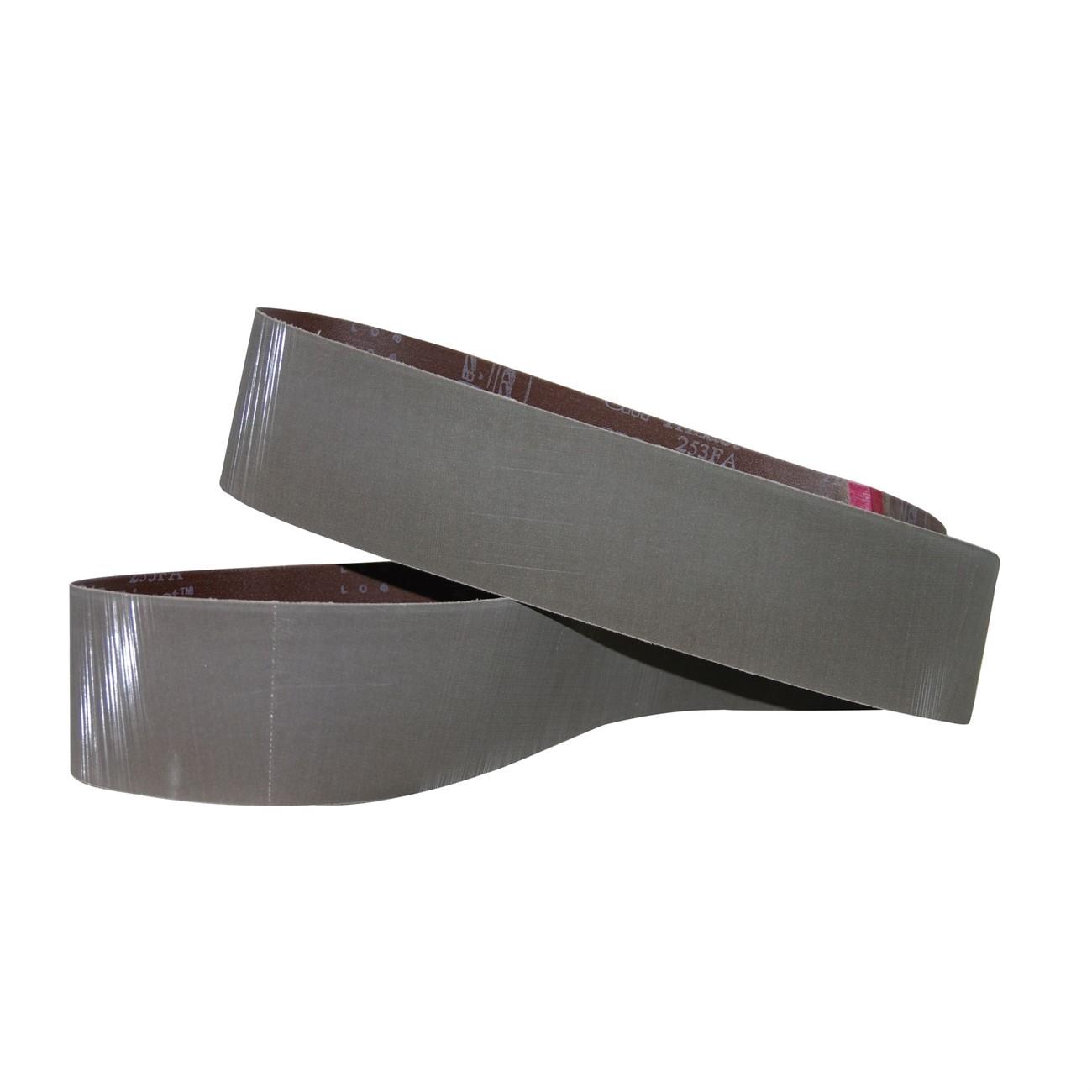

3M 7010328212 Abrasive Belt 132x6 Inch Aluminum Oxide

Product Description

The 3M 7010328212 is a Trizact 253FA abrasive belt engineered for flat finishing and centerless grinding applications. It uses microreplicated aluminum oxide mineral bonded with a resin system onto an XF-weight polyester cloth backing that is waterproof and rated for rugged wet or dry service. At 132 inches long and 6 inches wide, this belt fits wide-contact and high-production setups commonly found in metal fabrication and surface finishing shops. Licensed tradespeople and production grinders rely on it for consistent, controlled stock removal in intermediate and fine finishing passes.

This belt is suited for wet intermediate and fine finishing on a range of metals. Typical applications include flat-bar grinding, tube finishing, and centerless operations on stainless steel, carbon steel, aluminum, nickel alloys, cobalt steel, copper, and brass. The microreplicated mineral structure delivers a repeatable cut rate and reduces the risk of uneven finishes across long production runs, making it a practical choice for high-throughput fabrication and metalworking environments.

Key Features

• Microreplicated aluminum oxide mineral provides consistent cut rate and reduces uneven finish risk
• XF-weight polyester cloth backing offers durability and conformability to irregular profiles
• Waterproof construction supports wet intermediate and fine finishing applications
• Resin-bond system maintains mineral adhesion under high-contact-pressure grinding
• Compatible with metals including stainless steel, carbon steel, aluminum, nickel alloys, cobalt steel, copper, and brass

Compatibility

Designed for flat finishing and centerless grinding applications on ferrous and non-ferrous metals including stainless steel, carbon steel, aluminum, nickel alloys, cobalt steel, copper, and brass. Verify belt contact wheel and platen dimensions match 132-inch length and 6-inch width before installation.

Installation Notes

Installation should be performed by qualified personnel familiar with abrasive belt grinder operation and applicable shop safety standards. Power down and lockout the grinder fully before mounting or removing the belt. Confirm belt tracking direction matches the arrow marked on the belt splice before startup. Inspect the contact wheel and platen for wear or damage that could cause uneven belt loading.

Technical Specifications

• Belt Length: 132 inches
• Belt Width: 6 inches
• Abrasive Mineral: Microreplicated Aluminum Oxide
• Backing Material: XF-Weight Polyester Cloth
• Bond Type: Resin
• Backing Construction: Waterproof
• Weight: 1.02 pounds
• Unit of Measure: Each
• Minimum Order Quantity: 20
• UPC: 00051111669938

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010328212
